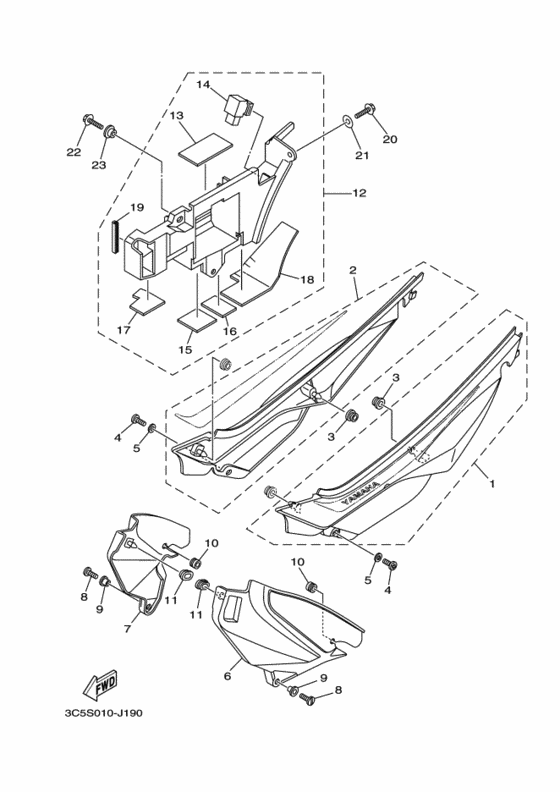

ｻｲﾄﾞｶﾊﾞ- Diagram Yamaha XT250 Serow
- Year
- 2010
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3C5S
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-Y2171-K0-00
Cover, Side 1
ＷＧ |
3C5-Y2171-K0-00 |
— | ||
|
2
|
2
3C5-Y2172-K0-00
Cover, Side 2
ＷＧ |
3C5-Y2172-K0-00 |
— | ||
|
3
|
3
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
4
|
4
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
5
|
5
902-01060-58-00
Washer Plate 101241870000
|
902-01060-58-00 |
— | ||
| replacements | |||||
|
5
|
5
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
5
|
5
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
|
6
|
6
3C5-21731-00-00 Cover, Side 3 |
3C5-21731-00-00 |
from US $9.35 |
||
|
7
|
7
3C5-21741-00-00 Cover, Side 4 |
3C5-21741-00-00 |
from US $9.35 |
||
|
8
|
8
90146-06014-00 Screw, Oval Fillister |
90146-06014-00 |
from US $2.04 |
||
| replacement | |||||
|
8
|
8
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.66 |
||
|
9
|
9
90387-06048-00 Collar |
90387-06048-00 |
from US $4.16 |
||
|
10
|
10
90480-10334-00 Grommet |
90480-10334-00 |
from US $1.70 |
||
|
11
|
11
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
12
|
12
5XT-8210E-20-00 Battery Box Assy |
5XT-8210E-20-00 |
US $88.42 |
||
|
13
|
13
5EJ-2414H-00-00 Damper, Plate 1 |
5EJ-2414H-00-00 |
from US $2.08 |
||
|
14
|
14
4GY-83350-00-00 Flasher Relay Assy |
4GY-83350-00-00 |
US $62.31 |
||
|
15
|
15
5XT-2174A-00-00 Insulator, Side Cover |
5XT-2174A-00-00 |
from US $2.69 |
||
|
16
|
16
5XT-2174T-00-00 Insulator, Side Cover 2 |
5XT-2174T-00-00 |
from US $2.69 |
||
|
17
|
17
5XT-2172S-00-00 Insulator 3 |
5XT-2172S-00-00 |
from US $2.98 |
||
|
18
|
18
5XT-2173S-00-00 Insulator 4 |
5XT-2173S-00-00 |
from US $2.98 |
||
|
19
|
19
31A-24188-01-00 Mold, Fuel Tank |
31A-24188-01-00 |
from US $9.49 |
||
|
20
|
20
90105-06057-00 Bolt, Flange |
90105-06057-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
21
|
21
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
21
|
21
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
22
|
22
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
22
|
22
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
23
|
23
90387-06066-00 Collar |
90387-06066-00 |
from US $1.81 |
||
