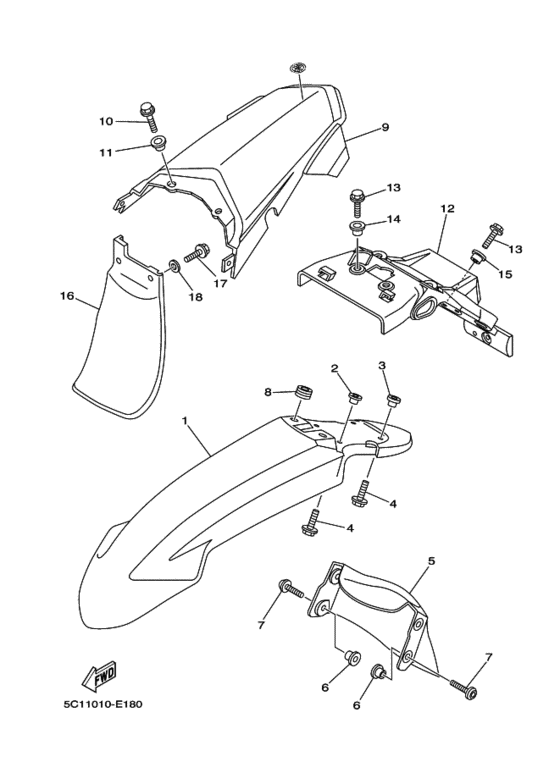

Fender Diagram Yamaha XT250 Serow
- Year
- 2006
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5C11
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-21511-30-00 Fender, FrontＵＲ ＤＰＢＳＥ |
3C5-21511-30-00 |
from US $52.25 |
||
|
2
|
2
903-87066-81-00
Collar
カラー; |
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collarカラー; |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
90387-06117-00 Collarカラー; |
90387-06117-00 |
from US $7.63 |
||
|
4
|
4
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
5
|
5
5C1-21556-00-00 Fender, Front 2 |
5C1-21556-00-00 |
US $32.02 |
||
|
6
|
6
903-87066-81-00
Collar
カラー; |
903-87066-81-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06857-00 Collarカラー; |
90387-06857-00 |
from US $1.52 |
||
|
7
|
7
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
8
|
8
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
8
|
8
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.50 |
||
|
9
|
9
5C1-21611-10-00
Fender, Rear
ＵＲ ＤＰＢＳＥ， ＷＯＧ |
5C1-21611-10-00 |
— | ||
|
10
|
10
90105-06081-00 Bolt, Flange |
90105-06081-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
11
|
11
903-87064-J1-00
Collar
カラー; |
903-87064-J1-00 |
— | ||
| replacement | |||||
|
11
|
11
903-87061-07-00 Collarカラー; |
903-87061-07-00 |
from US $4.43 |
||
|
12
|
12
5C1-21685-00-00 Bracket, License |
5C1-21685-00-00 |
US $37.58 |
||
|
13
|
13
950-27060-12-00 Bolt, Flangeボルト，フランジ; |
950-27060-12-00 |
from US $1.28 |
||
|
14
|
14
903-87064-J1-00
Collar
カラー; |
903-87064-J1-00 |
— | ||
| replacement | |||||
|
14
|
14
903-87061-07-00 Collarカラー; |
903-87061-07-00 |
from US $4.43 |
||
|
15
|
15
90560-08251-00 Collarスペーサ; |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
15
|
15
90387-08079-00 Collarスペーサ; |
90387-08079-00 |
from US $2.69 |
||
|
16
|
16
5XT-21642-02-00 Guard, Flapガード，フラツプ; |
5XT-21642-02-00 |
from US $8.30 |
||
|
17
|
17
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
17
|
17
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
18
|
18
90201-06055-00 Washer, Plateワツシヤ，プレート; |
90201-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
90201-06049-00 Washer, Plateワツシヤ，プレート; |
90201-06049-00 |
from US $1.70 |
||
