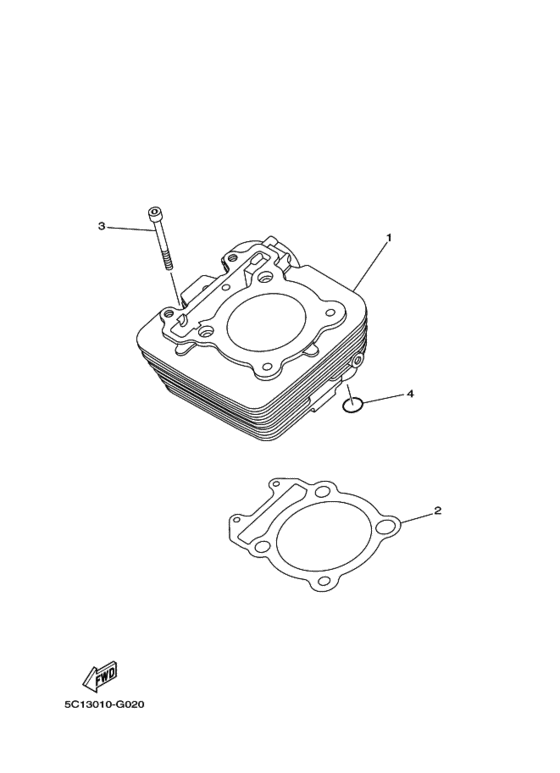

Cylinder Diagram Yamaha XT250 Serow
- Year
- 2008
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 5C13
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1S4-11311-00-00 Cylinder 1 |
1S4-11311-00-00 |
from US $577.42 |
||
|
2
|
2
4D3-11351-00-00 Gasket, Cylinder |
4D3-11351-00-00 |
from US $6.40 |
||
|
3
|
3
91314-06065-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91314-06065-00 |
from US $1.42 |
||
|
4
|
4
93210-13657-00 O-RingＯ−リング; |
93210-13657-00 |
from US $1.39 |
