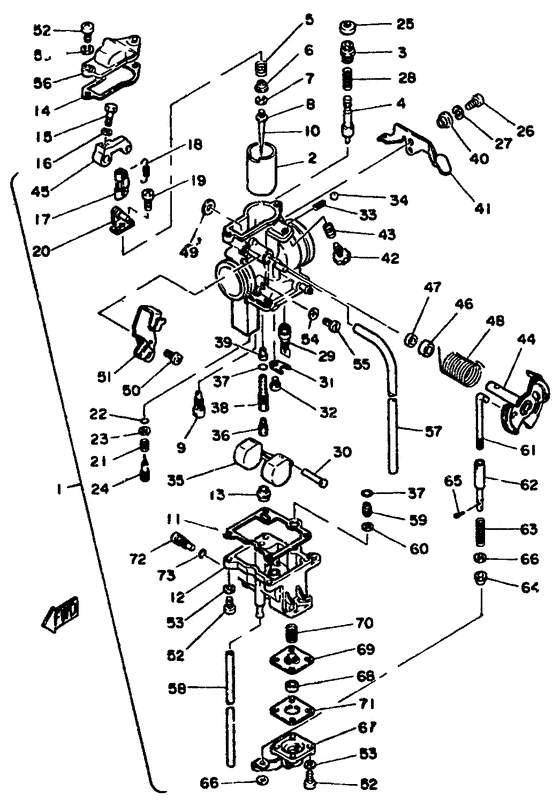

Carburetor Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y3-14101-00-00
Carburetor Assy 1
|
3Y3-14101-00-00 |
— | ||
|
2
|
2
3Y1-14112-25-00
Valve, Throttle 1
|
3Y1-14112-25-00 |
— | ||
|
3
|
3
3Y1-14174-00-00
Cap, Plunger
|
3Y1-14174-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
3Y1-14171-00-00
Plunger, Starter
|
3Y1-14171-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
3H1-14589-00-00
Spring
|
3H1-14589-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
2N6-14227-01-00
Washer
|
2N6-14227-01-00 |
— | ||
|
7
|
7
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
7
|
7
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
8
|
8
2N6-14918-01-00
Ring
|
2N6-14918-01-00 |
— | ||
|
9
|
9
3Y1-14142-17-00
Jet, Pilot #17.5 (3Y1-14142-
|
3Y1-14142-17-00 |
— | ||
|
10
|
10
168-14116-67-00
Needle
|
168-14116-67-00 |
— | ||
|
11
|
11
3Y1-14184-00-00 Gasket, Float Chmbr |
3Y1-14184-00-00 |
from US $30.46 |
||
|
12
|
12
3Y1-14981-10-00
Body, Float Chamber
|
3Y1-14981-10-00 |
— | ||
|
13
|
13
3Y1-14153-00-00
Plate,baffle
|
3Y1-14153-00-00 |
— | ||
|
14
|
14
3Y1-14536-00-00 Gasket |
3Y1-14536-00-00 |
from US $29.61 |
||
|
15
|
15
3Y1-14592-00-00
Screw
|
3Y1-14592-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
3Y1-14276-00-00
Lever
|
3Y1-14276-00-00 |
— | ||
|
18
|
18
3Y1-14275-00-00
Spring
|
3Y1-14275-00-00 |
— | ||
|
19
|
19
3Y1-24453-00-00
Screw
|
3Y1-24453-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3Y1-14291-00-00
Bracket 1
|
3Y1-14291-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
3F7-14134-00-00 Spring, Air Adjusting |
3F7-14134-00-00 |
from US $13.37 |
||
|
22
|
22
3H1-14147-00-00 O-Ring |
3H1-14147-00-00 |
from US $10.26 |
||
|
23
|
23
3H1-14962-00-00 Washer |
3H1-14962-00-00 |
from US $4.96 |
||
|
24
|
24
3Y3-14211-00-00
Screw, Pilot Adjusting
|
3Y3-14211-00-00 |
— | ||
| replacement | |||||
|
24
|
24
24U-14105-00-00
Pilot Screw Set
|
24U-14105-00-00 |
— | ||
|
25
|
25
1M3-14169-00-00 Cap |
1M3-14169-00-00 |
US $7.94 |
||
| replacement | |||||
|
25
|
25
3A3-14173-00-00
Cover, Plunger Cap
|
3A3-14173-00-00 |
— | ||
|
26
|
26
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
27
|
27
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
29
|
29
2H0-14190-20-00 Needle Valve Assembly |
2H0-14190-20-00 |
from US $42.73 |
||
|
30
|
30
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
31
|
31
2H0-14146-00-00 Plate |
2H0-14146-00-00 |
from US $10.42 |
||
|
32
|
32
98502-04006-00 Screw, Pan Head |
98502-04006-00 |
US $1.56 |
||
| replacements | |||||
|
32
|
32
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
32
|
32
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
32
|
32
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
32
|
32
98501-04005-00 Screw, Pan Head |
98501-04005-00 |
US $1.56 |
||
|
32
|
32
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
32
|
32
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
|
33
|
33
583-14589-00-00 Spring |
583-14589-00-00 |
from US $7.61 |
||
|
34
|
34
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
35
|
35
3H1-14185-00-00
Float
|
3H1-14185-00-00 |
— | ||
|
36
|
36
137-14143-32-00 Jet, Main #160Ur |
137-14143-32-00 |
from US $10.85 |
||
|
36
|
36
137-14143-33-00 Jet, Main #165 (#165)Ur |
137-14143-33-00 |
from US $10.62 |
||
|
36
|
36
137-14143-34-00 Jet, Main #170Jet, main (170) Ur |
137-14143-34-00 |
from US $10.73 |
||
|
37
|
37
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $3.04 |
||
|
38
|
38
3H1-14148-00-00
Pipe
|
3H1-14148-00-00 |
— | ||
|
39
|
39
3Y1-14141-39-00
Nozzle, Main
|
3Y1-14141-39-00 |
— | ||
|
40
|
40
583-14594-00-00
Collar
|
583-14594-00-00 |
— | ||
|
41
|
41
3Y1-14175-00-00
Lever, Starter 1
|
3Y1-14175-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
3Y1-14991-00-00
Screw
|
3Y1-14991-00-00 |
— | ||
| replacement | |||||
|
42
|
42
24U-14103-00-00
Throttle Screw Set
|
24U-14103-00-00 |
— | ||
|
43
|
43
3F7-14934-00-00
Spring, Throttle Stop
|
3F7-14934-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
3Y1-14215-00-00
Shaft, Thrtl Lever
|
3Y1-14215-00-00 |
— | ||
|
45
|
45
3Y1-14292-00-00
Bracket 2
|
3Y1-14292-00-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
3F7-14265-00-00
Collar
|
3F7-14265-00-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
2A2-14997-00-00 Seal |
2A2-14997-00-00 |
from US $10.40 |
||
|
48
|
48
3Y1-14131-00-00
Spring, Thrtl Valve
|
3Y1-14131-00-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
1A8-14953-00-00 Washer |
1A8-14953-00-00 |
from US $2.98 |
||
|
50
|
50
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
50
|
50
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
51
|
51
3Y1-14571-00-00
Bracket, Throttle
|
3Y1-14571-00-00 |
— | ||
| replacement | |||||
|
51
|
51
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
52
|
52
98502-04014-00 Screw, Pan Head |
98502-04014-00 |
from US $1.42 |
||
| replacement | |||||
|
52
|
52
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
53
|
53
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
53
|
53
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
54
|
54
584-14956-00-00
Washer, Plug Screw
|
584-14956-00-00 |
— | ||
|
55
|
55
2F5-14115-00-00
Plug, Screw
|
2F5-14115-00-00 |
— | ||
|
56
|
56
3Y1-14158-00-00
Top, Mixing Chamber
|
3Y1-14158-00-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
3Y1-14197-00-00
Pipe
|
3Y1-14197-00-00 |
— | ||
| replacement | |||||
|
57
|
57
26H-14197-01-00 Pipe |
26H-14197-01-00 |
from US $8.76 |
||
|
58
|
58
3Y3-14196-00-00
Hose
|
3Y3-14196-00-00 |
— | ||
| replacement | |||||
|
58
|
58
88R-14987-00-00
Hose
|
88R-14987-00-00 |
— | ||
|
59
|
59
2H0-14272-00-00
Valve, Check Seat
|
2H0-14272-00-00 |
— | ||
|
60
|
60
2H0-14195-00-00
Washer, Needle Vlv
|
2H0-14195-00-00 |
— | ||
|
61
|
61
3Y1-14992-00-00
Rod
|
3Y1-14992-00-00 |
— | ||
|
62
|
62
2H0-14992-00-00
Rod
|
2H0-14992-00-00 |
— | ||
|
63
|
63
3Y1-14933-00-00
Spring, Diaphragm
|
3Y1-14933-00-00 |
— | ||
|
64
|
64
2H0-14534-00-00
Collar
|
2H0-14534-00-00 |
— | ||
|
65
|
65
91402-10006-00 Pin, Cotter |
91402-10006-00 |
from US $3.40 |
||
| replacement | |||||
|
65
|
65
91401-10010-00 Pin, Cotter |
91401-10010-00 |
from US $3.40 |
||
|
66
|
66
2H0-14227-00-00
Washer
|
2H0-14227-00-00 |
— | ||
|
67
|
67
3Y1-14905-00-00
Lever, Starter
|
3Y1-14905-00-00 |
— | ||
| replacement | |||||
|
67
|
67
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
68
|
68
3Y0-14918-00-00
Ring
|
3Y0-14918-00-00 |
— | ||
| replacement | |||||
|
68
|
68
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
69
|
69
3Y1-14940-00-00 Diaphragm Assembly |
3Y1-14940-00-00 |
from US $48.74 |
||
|
70
|
70
3Y1-14589-00-00
Spring
|
3Y1-14589-00-00 |
— | ||
|
71
|
71
3Y1-14936-00-00
Seat, Spring
|
3Y1-14936-00-00 |
— | ||
|
72
|
72
2L1-14191-00-00 Plug, Drain |
2L1-14191-00-00 |
from US $16.72 |
||
|
73
|
73
3Y1-14561-00-00
O-Ring
|
3Y1-14561-00-00 |
— | ||
| replacement | |||||
|
73
|
73
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
