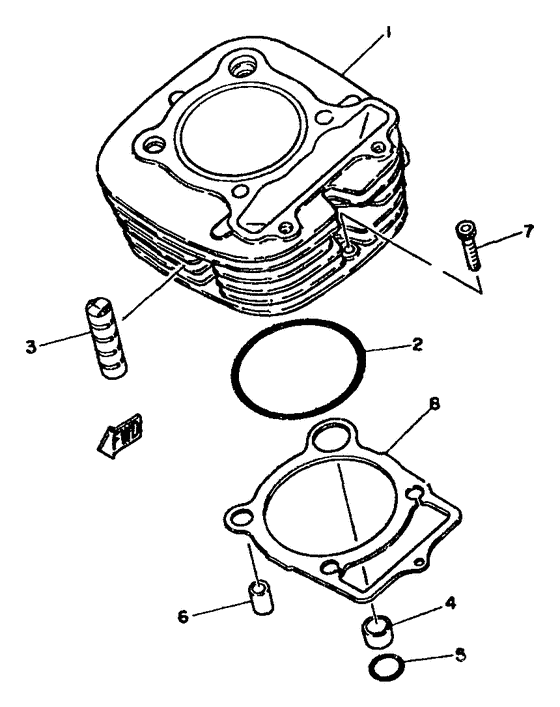

Cylinder Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-11310-00-00
Cylinder
|
3Y1-11310-00-00 |
— | ||
|
2
|
2
93210-81411-00 O-Ring |
93210-81411-00 |
from US $3.72 |
||
|
3
|
3
3Y1-11162-00-00 Absorber 3 |
3Y1-11162-00-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
4
|
4
90387-16547-00 Collar |
90387-16547-00 |
from US $2.70 |
||
|
5
|
5
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.81 |
||
|
6
|
6
91830-24016-00 Pin, Dowel |
91830-24016-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
7
|
7
91316-06030-00 Bolt |
91316-06030-00 |
from US $0.99 |
||
| replacement | |||||
|
7
|
7
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
8
|
8
3Y1-11351-01-00
Gasket, Cylinder
|
3Y1-11351-01-00 |
— | ||
| replacement | |||||
|
8
|
8
3NU-11351-01-00 Gasket, Cylinder |
3NU-11351-01-00 |
from US $8.22 |
||
