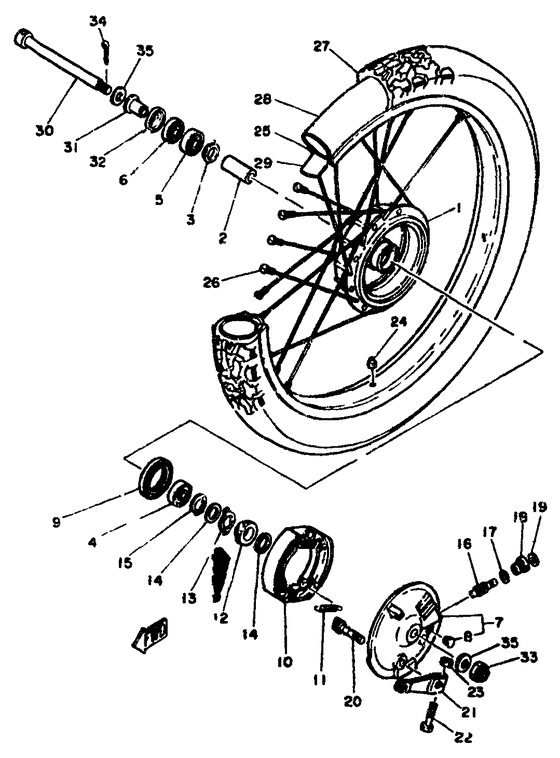

Front wheel Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-25111-00-98
Hub, Front
|
3Y1-25111-00-98 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
214-25117-00-00 Spacer |
214-25117-00-00 |
from US $7.65 |
||
| replacement | |||||
|
2
|
2
90560-15293-00 Spacer(1Ee) |
90560-15293-00 |
from US $7.65 |
||
|
3
|
3
183-25315-00-00 Flange, Spacer 2 |
183-25315-00-00 |
from US $4.53 |
||
| replacement | |||||
|
3
|
3
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
4
|
4
93306-20203-00 Bearing |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
6
|
6
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
7
|
7
3Y1-25016-00-98
Brake Shoe Plate Assy
|
3Y1-25016-00-98 |
— | ||
| replacement | |||||
|
7
|
7
999-99017-34-00
Brake Shoe Plt Assembly
|
999-99017-34-00 |
— | ||
|
8
|
8
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
9
|
9
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
10
|
10
3Y1-25330-00-00 Brake Shoe Comp |
3Y1-25330-00-00 |
US $30.36 |
||
| replacement | |||||
|
10
|
10
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
11
|
11
90506-16036-00 Spring, Tension |
90506-16036-00 |
from US $8.36 |
||
| replacement | |||||
|
11
|
11
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
12
|
12
308-25135-00-00
Gear, Drive (10T)
|
308-25135-00-00 |
— | ||
|
13
|
13
214-25149-01-00 Clutch, Meter |
214-25149-01-00 |
from US $9.36 |
||
|
14
|
14
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
15
|
15
93410-22014-00 Circlip |
93410-22014-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
16
|
16
308-25138-00-00
Gear, Meter (10T)
|
308-25138-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
18
|
18
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
19
|
19
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
20
|
20
538-25351-01-00 Camshaft |
538-25351-01-00 |
from US $27.77 |
||
| replacement | |||||
|
20
|
20
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
21
|
21
3Y1-25155-00-00 Lever, Camshaft 1 |
3Y1-25155-00-00 |
from US $26.59 |
||
| replacement | |||||
|
21
|
21
3Y1-25155-01-00 Lever, Camshaft 1 |
3Y1-25155-01-00 |
from US $26.59 |
||
|
22
|
22
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
23
|
23
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
24
|
24
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
25
|
25
94416-21255-00
Rim
|
94416-21255-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
3Y1-25104-00-00
Spoke Set, Front
|
3Y1-25104-00-00 |
— | ||
|
27
|
27
94130-21658-00
Tire (3.00-21)
Bs |
94130-21658-00 |
— | ||
| replacement | |||||
|
27
|
27
94130-2105H-00
Tire
Bs |
94130-2105H-00 |
— | ||
|
28
|
28
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)Bs |
942-27211-23-00 |
US $54.59 |
||
|
29
|
29
94330-21084-00 Band, Rim (1.60-21)Bs |
94330-21084-00 |
from US $4.39 |
||
|
30
|
30
403-25381-01-00 Axle, Wheel |
403-25381-01-00 |
US $51.59 |
||
|
31
|
31
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
32
|
32
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
33
|
33
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
33
|
33
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
34
|
34
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
34
|
34
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
35
|
35
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
