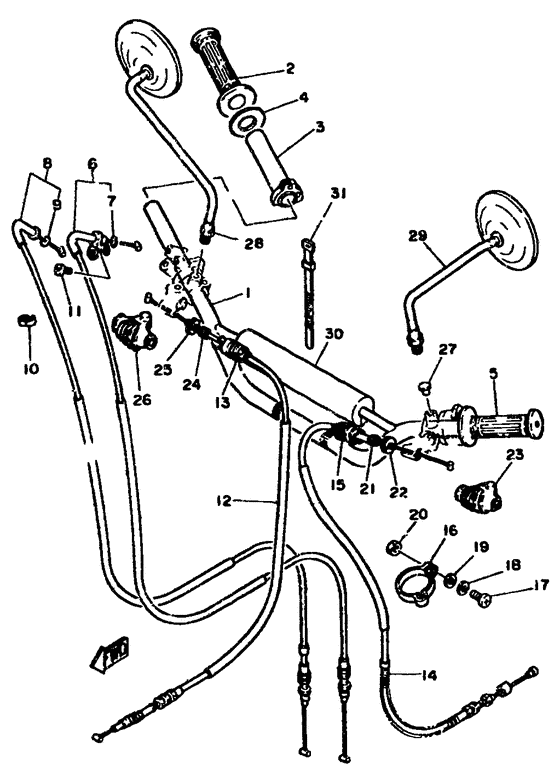

Handlebar. cable Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-26111-00-00
Handlebar
|
3Y1-26111-00-00 |
— | ||
|
2
|
2
1A0-26242-01-00 Grip Rh (R.h.) |
1A0-26242-01-00 |
from US $10.44 |
||
|
3
|
3
3Y1-26243-00-00 Tube, Throttle Guide |
3Y1-26243-00-00 |
from US $16.86 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.) |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
3Y1-26311-00-00 Cable, Throttle 1 |
3Y1-26311-00-00 |
from US $49.54 |
||
|
7
|
7
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
8
|
8
3Y1-26312-00-00 Cable, Throttle 2 |
3Y1-26312-00-00 |
from US $53.14 |
||
| replacement | |||||
|
8
|
8
53R-26312-00-00 Cable, Throttle 2 (3Y1-26312-00 |
53R-26312-00-00 |
from US $49.45 |
||
|
9
|
9
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
10
|
10
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
11
|
11
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
11
|
11
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
3Y1-26341-00-00 Wire, Brake 1 |
3Y1-26341-00-00 |
from US $55.17 |
||
|
13
|
13
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
14
|
14
3Y0-26335-00-00 Cable, clutch |
3Y0-26335-00-00 |
from US $59 |
||
|
15
|
15
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
16
|
16
3Y1-26397-00-00
Band
|
3Y1-26397-00-00 |
— | ||
|
17
|
17
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
17
|
17
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
17
|
17
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
18
|
18
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
19
|
19
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
19
|
19
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
21
|
21
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
21
|
21
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
22
|
22
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
22
|
22
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
23
|
23
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
24
|
24
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
24
|
24
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
25
|
25
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
25
|
25
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
26
|
26
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
27
|
27
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
28
|
28
341-26290-E0-00 Rear View Mirror Assy(Right)Rear view mirror assy (right) |
341-26290-E0-00 |
US $49.63 |
||
|
29
|
29
341-26290-A0-00 Rear View Mirror Assy(Left)Rear view mirror assy (right) Ap |
341-26290-A0-00 |
US $56.65 |
||
|
30
|
30
2X1-26124-00-00 Protector, Hdlbr |
2X1-26124-00-00 |
from US $18.14 |
||
|
31
|
31
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
