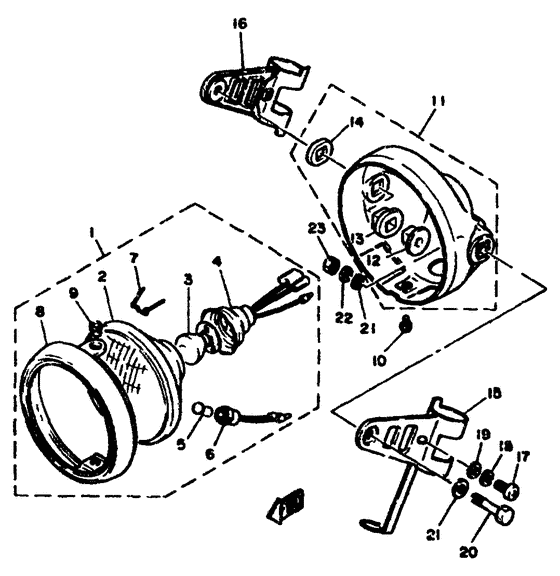

Headlight Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y3-84110-30-00
Headlight Unit Assy
|
3Y3-84110-30-00 |
— | ||
|
2
|
2
1R6-84120-30-00
Lens Assy
|
1R6-84120-30-00 |
— | ||
|
3
|
3
1R6-84114-30-00
Bulb (6V-35/35W)
|
1R6-84114-30-00 |
— | ||
|
4
|
4
3Y3-84112-30-00 Socket |
3Y3-84112-30-00 |
US $125.73 |
||
|
5
|
5
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
5
|
5
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
|
6
|
6
1R6-84146-30-00
Socket Cord Assy
|
1R6-84146-30-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
195-84324-00-00 Spring, Reflector |
195-84324-00-00 |
from US $3.40 |
||
|
8
|
8
3Y3-84115-00-00
Rim, Headlight
|
3Y3-84115-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1M1-84133-60-00 Collar, Screw |
1M1-84133-60-00 |
from US $7.23 |
||
|
10
|
10
1M1-84137-60-00 Bolt, Special |
1M1-84137-60-00 |
from US $9.09 |
||
|
11
|
11
3J0-84130-60-00 Body Assembly, Headlight |
3J0-84130-60-00 |
from US $82.78 |
||
|
12
|
12
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.66 |
||
|
13
|
13
498-84163-60-00 Damper |
498-84163-60-00 |
from US $9.63 |
||
|
14
|
14
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
15
|
15
3Y3-84118-00-00
Stay, Headlight 1
|
3Y3-84118-00-00 |
— | ||
| replacement | |||||
|
15
|
15
3Y5-84118-00-00
Stay, Headlight 1
|
3Y5-84118-00-00 |
— | ||
|
16
|
16
3Y3-84119-00-00
Stay, Headlight 2
|
3Y3-84119-00-00 |
— | ||
| replacement | |||||
|
16
|
16
3Y5-84119-00-00
Stay, Headlight 2
|
3Y5-84119-00-00 |
— | ||
|
17
|
17
92506-06018-00 Screw |
92506-06018-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
18
|
18
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
19
|
19
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
97301-08040-00 Bolt |
97301-08040-00 |
US $5.29 |
||
| replacements | |||||
|
20
|
20
90101-08499-00 Bolt |
90101-08499-00 |
from US $5.67 |
||
|
20
|
20
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
20
|
20
970-23080-40-00 Bolt(3Fu) |
970-23080-40-00 |
US $2.50 |
||
|
21
|
21
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
21
|
21
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
22
|
22
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
22
|
22
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
23
|
23
95302-08600-00 Nut, Hexagon |
95302-08600-00 |
from US $1.52 |
||
| replacements | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
