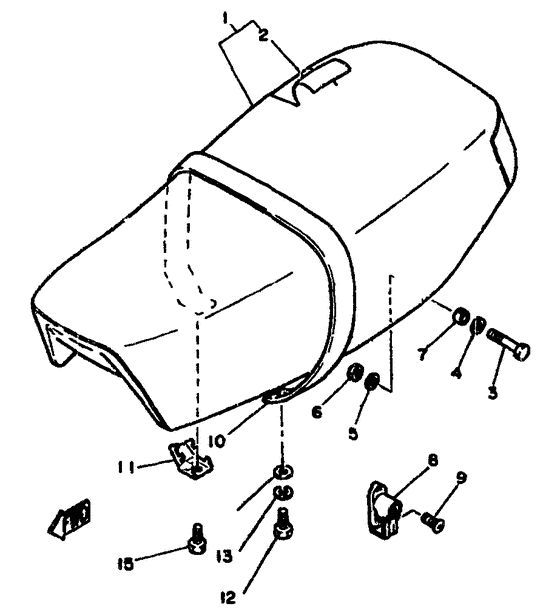

Seat Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-W2473-00-00
Semi-Dbl-Seat Assembly
|
3Y1-W2473-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3Y1-24731-00-00
Cover, Double Seat
|
3Y1-24731-00-00 |
— | ||
|
3
|
3
97301-06045-00 Bolt |
97301-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
3
|
3
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
4
|
4
90201-06053-00 Washer, Plate |
90201-06053-00 |
from US $0.97 |
||
| replacement | |||||
|
4
|
4
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
5
|
5
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
7
|
7
90387-10661-00
Collar
|
90387-10661-00 |
— | ||
|
8
|
8
3Y3-21308-00-00 Helmet Hanger Assy |
3Y3-21308-00-00 |
US $59.13 |
||
| replacement | |||||
|
8
|
8
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
9
|
9
92701-06018-00 Screw, Flat Head |
92701-06018-00 |
from US $2.39 |
||
| replacement | |||||
|
9
|
9
98707-06018-00 Screw, Flat |
98707-06018-00 |
from US $2.33 |
||
|
10
|
10
3Y1-24778-00-00
Band, Seat Fitting
|
3Y1-24778-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
3Y1-24748-00-00
Bracket, Seat
|
3Y1-24748-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
97301-08016-00 Bolt |
97301-08016-00 |
US $4.53 |
||
| replacement | |||||
|
12
|
12
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
13
|
13
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
90101-08253-00 Bolt |
90101-08253-00 |
from US $6.10 |
||
| replacement | |||||
|
15
|
15
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
