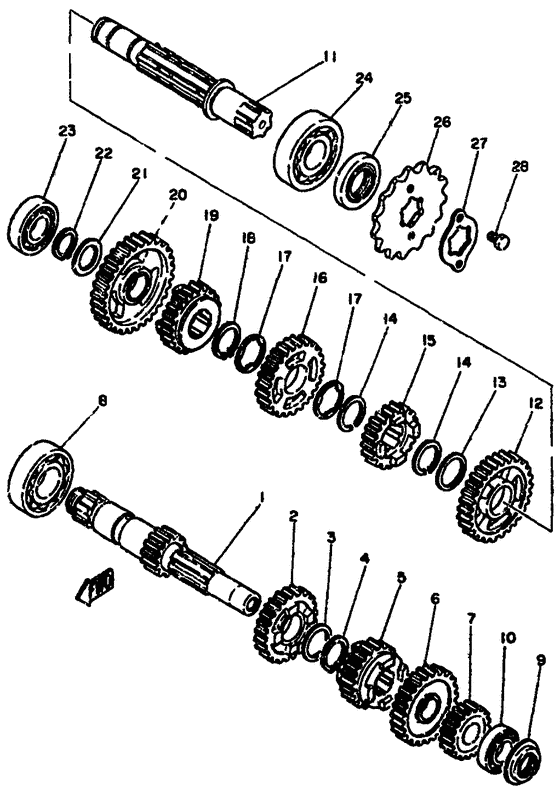

Transmission Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-17411-00-00 Axle, Main (14T) |
3Y1-17411-00-00 |
US $242.28 |
||
|
2
|
2
3Y1-17141-00-00
Gear, 4Th Pinion
|
3Y1-17141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4DN-17141-00-00
Gear, 4Th Pinion (26T)
|
4DN-17141-00-00 |
— | ||
|
3
|
3
90201-22793-00 Washer, Plate |
90201-22793-00 |
from US $1.70 |
||
|
4
|
4
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.94 |
||
|
5
|
5
3Y1-17131-00-00 Gear, 3Rd Pinion (23T) |
3Y1-17131-00-00 |
from US $61.90 |
||
| replacement | |||||
|
5
|
5
3Y1-17131-01-00 Gear, 3Rd Pinion (23T) |
3Y1-17131-01-00 |
from US $61.90 |
||
|
6
|
6
3Y1-17151-00-00
Gear, 5Th Pinion (28T) (3Y1-171
|
3Y1-17151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4DN-17151-00-00
Gear, 5Th Pinion (28T) (3Y1-171
|
4DN-17151-00-00 |
— | ||
|
7
|
7
3Y1-17121-00-00 Gear, 2Nd Pinion (19T) |
3Y1-17121-00-00 |
from US $34.99 |
||
| replacement | |||||
|
7
|
7
3Y1-17121-01-YX Gear, 2Nd Pinion (19T) |
3Y1-17121-01-YX |
from US $34.94 |
||
|
8
|
8
93306-20541-00 Bearing |
93306-20541-00 |
from US $18.86 |
||
|
9
|
9
93101-17093-00 Oil Seal |
93101-17093-00 |
from US $6.09 |
||
|
10
|
10
93306-00301-00 Bearing |
93306-00301-00 |
US $24.09 |
||
| replacement | |||||
|
10
|
10
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $18.52 |
||
|
11
|
11
3Y1-17402-00-00 Drive Axle Assy |
3Y1-17402-00-00 |
from US $91.88 |
||
|
12
|
12
3Y1-17221-00-00 Gear, 2Nd Wheel (32T) |
3Y1-17221-00-00 |
from US $60.38 |
||
| replacement | |||||
|
12
|
12
3Y1-17221-02-00 Gear, 2Nd Wheel (32T) |
3Y1-17221-02-00 |
from US $60.38 |
||
|
13
|
13
90201-25287-00 Washer, Plate (T=1.0) |
90201-25287-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
14
|
14
93440-25019-00 Circlip |
93440-25019-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
15
|
15
3Y1-17251-00-00 Gear, 5Th Wheel |
3Y1-17251-00-00 |
from US $80.27 |
||
| replacement | |||||
|
15
|
15
4DN-17251-00-00 Gear, 5Th Wheel (23T) |
4DN-17251-00-00 |
from US $64.58 |
||
|
16
|
16
3Y1-17231-00-00 Gear, 3Rd Wheel (29T) |
3Y1-17231-00-00 |
from US $47.53 |
||
| replacement | |||||
|
16
|
16
3Y1-17231-02-00 Gear, 3Rd Wheel (29T) |
3Y1-17231-02-00 |
from US $47.53 |
||
|
17
|
17
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
18
|
18
93410-25010-00 Circlip |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
18
|
18
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.81 |
||
|
19
|
19
3Y1-17241-00-00
Gear, 4Th Wheel
|
3Y1-17241-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4DN-17241-00-00
Gear, 4Th Wheel (26T)
|
4DN-17241-00-00 |
— | ||
|
20
|
20
3Y1-17211-00-00 Gear, 1St Wheel (37T) |
3Y1-17211-00-00 |
from US $69.36 |
||
|
21
|
21
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
22
|
22
93410-20009-00 Circlip |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
23
|
23
933-06004-01-00
Bearing
|
933-06004-01-00 |
— | ||
| replacements | |||||
|
23
|
23
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $13.60 |
||
|
23
|
23
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.06 |
||
|
24
|
24
93306-30525-00 Bearing (B6305) |
93306-30525-00 |
from US $18.84 |
||
|
25
|
25
93102-25208-00 Oil Seal |
93102-25208-00 |
from US $6.09 |
||
|
26
|
26
3Y1-17461-50-00 Sprocket, Drive |
3Y1-17461-50-00 |
from US $19.13 |
||
| replacement | |||||
|
26
|
26
938-34150-78-00 Sprocket, Drive |
938-34150-78-00 |
from US $24.46 |
||
|
27
|
27
3Y1-17456-00-00 Holder, Sprocket |
3Y1-17456-00-00 |
from US $2.69 |
||
|
28
|
28
97322-06010-00 Bolt |
97322-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
