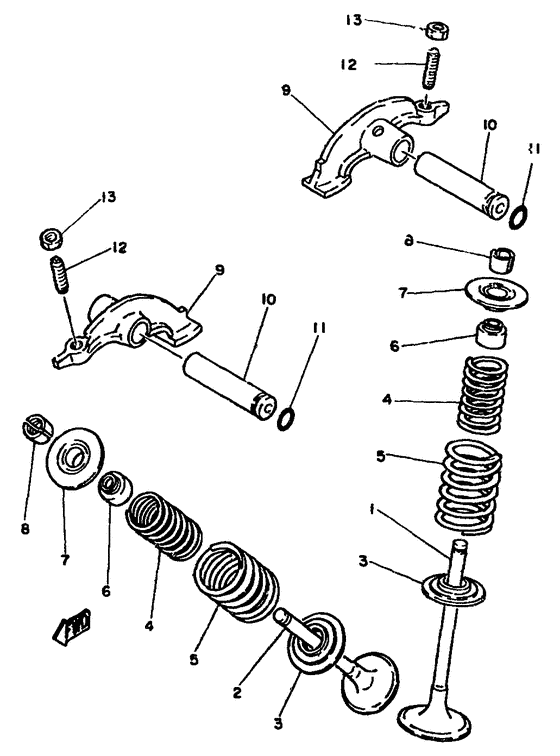

Valve Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-12111-00-00 Valve, Intake |
3Y1-12111-00-00 |
from US $59.08 |
||
| replacement | |||||
|
1
|
1
3Y1-12111-01-00 Valve, Intake |
3Y1-12111-01-00 |
from US $61.62 |
||
|
2
|
2
3Y1-12121-00-00 Valve, Exhaust |
3Y1-12121-00-00 |
from US $61.56 |
||
| replacement | |||||
|
2
|
2
3Y1-12121-01-00 Valve, Exhaust |
3Y1-12121-01-00 |
from US $70.32 |
||
|
3
|
3
3Y1-12116-00-00 Seat, Valve Spring |
3Y1-12116-00-00 |
from US $3.38 |
||
|
4
|
4
3Y1-12113-01-00 Spring, Valve Inner |
3Y1-12113-01-00 |
from US $12.47 |
||
|
5
|
5
3Y1-12114-01-00 Spring, Valve Outer |
3Y1-12114-01-00 |
from US $11.76 |
||
|
6
|
6
1J7-12119-01-00 Seal, Valve Stem |
1J7-12119-01-00 |
from US $7.42 |
||
|
7
|
7
3Y1-12117-01-00 Retainer, Valve Spring |
3Y1-12117-01-00 |
from US $4.38 |
||
|
8
|
8
1J7-12118-00-00 Lock, Valve Spring Retainer |
1J7-12118-00-00 |
from US $3.47 |
||
|
9
|
9
3Y1-12151-00-00 Arm, Valve Rocker |
3Y1-12151-00-00 |
US $73.22 |
||
| replacement | |||||
|
9
|
9
999-99014-43-00 Arm, Valve Rocker |
999-99014-43-00 |
from US $73.22 |
||
|
10
|
10
3Y1-12156-00-00 Shaft, Rocker 2 |
3Y1-12156-00-00 |
from US $18.56 |
||
|
11
|
11
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
11
|
11
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
11
|
11
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
|
12
|
12
3Y1-12159-00-00 Screw, Valve Adjusting |
3Y1-12159-00-00 |
from US $3.40 |
||
| replacement | |||||
|
12
|
12
2NX-12159-00-00 Screw, Valve Adjusting |
2NX-12159-00-00 |
from US $3.67 |
||
|
13
|
13
90170-06128-00 Nut |
90170-06128-00 |
from US $1.36 |
||
