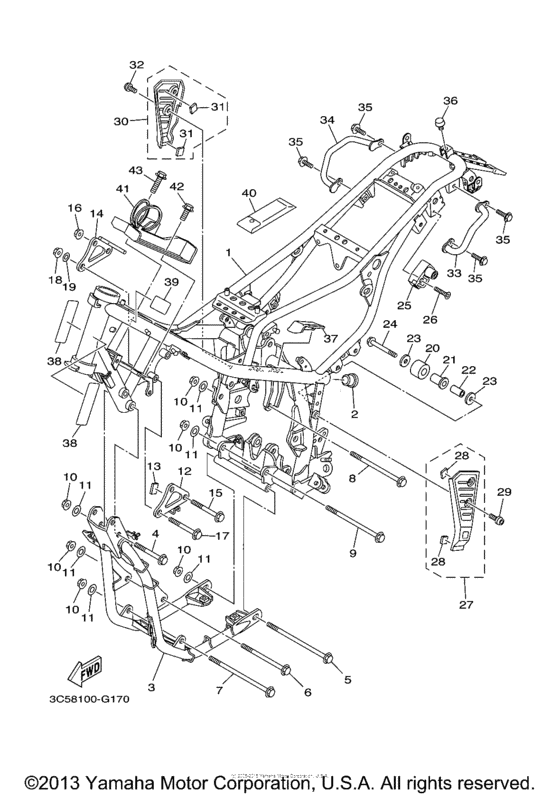

Frame Diagram Yamaha XT250 XT250
- Year
- 2011
- Model code
- 3C5N
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-21110-30-00 Frame CompFOR U49 |
3C5-21110-30-00 |
US $1,889.82 |
||
|
1
|
1
3C5-21110-20-00 Frame CompFOR CAL |
3C5-21110-20-00 |
US $1,889.82 |
||
|
2
|
2
90338-26004-00 Plug |
90338-26004-00 |
from US $2.55 |
||
|
3
|
3
3C5-21140-20-00
Down Tube Comp
FOR U49 |
3C5-21140-20-00 |
— | ||
|
3
|
3
3C5-21140-10-00 Down Tube CompFOR CAL |
3C5-21140-10-00 |
US $393.05 |
||
|
4
|
4
90105-10788-00 Bolt, Flange |
90105-10788-00 |
from US $5.81 |
||
|
5
|
5
90105-10300-00 Bolt, Flange |
90105-10300-00 |
from US $6.40 |
||
|
6
|
6
90105-10111-00 Bolt, Flange |
90105-10111-00 |
from US $6.52 |
||
|
7
|
7
90105-10118-00 Bolt, Flange |
90105-10118-00 |
from US $7.65 |
||
|
8
|
8
90105-10110-00 Bolt, Flange |
90105-10110-00 |
from US $5.38 |
||
|
9
|
9
90105-10114-00 Bolt, Flange |
90105-10114-00 |
from US $9.02 |
||
|
10
|
10
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
11
|
11
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
12
|
12
3C5-21315-00-00 Stay, Engine 1FOR U49 |
3C5-21315-00-00 |
from US $6.09 |
||
|
12
|
12
3C5-21315-10-00 Stay, Engine 2FOR CAL |
3C5-21315-10-00 |
US $43.60 |
||
|
13
|
13
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
14
|
14
3C5-21316-00-00 Stay, Engine 2 |
3C5-21316-00-00 |
from US $11.95 |
||
|
15
|
15
90105-10116-00 Bolt, Flange |
90105-10116-00 |
from US $3.26 |
||
|
16
|
16
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
16
|
16
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
17
|
17
90105-08102-00 Bolt, Flange |
90105-08102-00 |
from US $5.67 |
||
|
18
|
18
90179-08674-00 Nut |
90179-08674-00 |
from US $2.55 |
||
|
19
|
19
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
20
|
20
10V-22178-00-00 Tensioner |
10V-22178-00-00 |
from US $9.29 |
||
|
21
|
21
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
22
|
22
90387-08024-00 Collar |
90387-08024-00 |
from US $3.83 |
||
|
23
|
23
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
23
|
23
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
24
|
24
95027-08045-00 Bolt, Flange |
95027-08045-00 |
from US $1.56 |
||
|
25
|
25
4R8-21308-01-00 Helmet Hanger Assy |
4R8-21308-01-00 |
from US $46.70 |
||
|
26
|
26
90151-06018-00 Screw |
90151-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
27
|
27
3C5-2110M-01-00 Cover Assy 1 |
3C5-2110M-01-00 |
from US $42.14 |
||
|
28
|
28
5XT-2139X-01-00 Damper |
5XT-2139X-01-00 |
from US $1.70 |
||
|
29
|
29
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.66 |
||
|
30
|
30
3C5-2110N-01-00 Cover Assy 2 |
3C5-2110N-01-00 |
from US $42.14 |
||
|
31
|
31
5XT-2139X-01-00 Damper |
5XT-2139X-01-00 |
from US $1.70 |
||
|
32
|
32
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.66 |
||
|
33
|
33
3C5-21165-00-00 Handle, Standing |
3C5-21165-00-00 |
from US $45.59 |
||
|
34
|
34
3C5-21275-00-00 Stay, Rear |
3C5-21275-00-00 |
from US $45.59 |
||
|
35
|
35
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
35
|
35
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
35
|
35
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
36
|
36
5RU-24768-00-00 Stopper |
5RU-24768-00-00 |
from US $2.98 |
||
|
37
|
37
3C5-2117N-00-00 Cover 3 |
3C5-2117N-00-00 |
from US $15.39 |
||
|
38
|
38
5XT-21268-00-00 Seal |
5XT-21268-00-00 |
from US $7.23 |
||
|
39
|
39
1BF-21686-00-00 Plate, Routing 2FOR CAL |
1BF-21686-00-00 |
US $6.57 |
||
|
40
|
40
3C5-28100-00-00 Tool Kit |
3C5-28100-00-00 |
from US $43.66 |
||
|
41
|
41
5XT-21107-00-00 Tool Box Comp |
5XT-21107-00-00 |
from US $22.67 |
||
|
42
|
42
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
43
|
43
95027-06035-00 Bolt, Flange |
95027-06035-00 |
from US $1.52 |
||
| replacement | |||||
|
43
|
43
90105-06X19-00 Bolt, FlangeBolt, washer based |
90105-06X19-00 |
US $2.81 |
||
