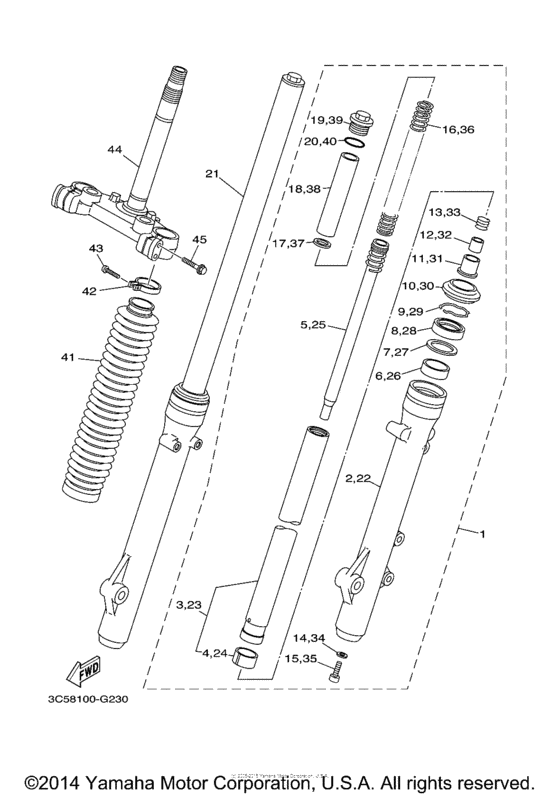

Front fork Diagram Yamaha XT250 XT250
- Year
- 2013
- Model code
- 1YB1
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-23102-20-00 Front Fork Assy (L.h) |
3C5-23102-20-00 |
from US $501.95 |
||
|
2
|
2
3C5-23126-10-00 Tube, Outer (L.h) |
3C5-23126-10-00 |
from US $263.89 |
||
|
3
|
3
3C5-23110-00-00 Inner Tube Comp. 1 |
3C5-23110-00-00 |
from US $208.62 |
||
|
4
|
4
5JX-23171-00-00 Piston, Front Fork |
5JX-23171-00-00 |
from US $15.95 |
||
|
5
|
5
3C5-23170-00-00 Cylinder Comp., Front Fork |
3C5-23170-00-00 |
from US $94.92 |
||
|
6
|
6
5JX-23125-00-00 Metal, Slide 1 |
5JX-23125-00-00 |
from US $13.60 |
||
|
7
|
7
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
8
|
8
5JX-23145-00-00 Oil Seal |
5JX-23145-00-00 |
from US $14.84 |
||
|
9
|
9
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
10
|
10
5JX-23144-00-00 Seal, Dust |
5JX-23144-00-00 |
from US $18.03 |
||
|
11
|
11
5XT-23173-00-00 Spindle, Taper |
5XT-23173-00-00 |
from US $18.84 |
||
|
12
|
12
5XT-23363-00-00 Collar 1 |
5XT-23363-00-00 |
from US $5.38 |
||
|
13
|
13
5XT-23151-00-00 Spring, Rebound |
5XT-23151-00-00 |
from US $4.53 |
||
|
14
|
14
1N1-23158-00-00 Gasket |
1N1-23158-00-00 |
from US $2.69 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
16
|
16
3C5-23141-00-00 Spring, Front Fork |
3C5-23141-00-00 |
from US $30.60 |
||
|
17
|
17
4FY-23149-00-00 Washer, Spring Upper |
4FY-23149-00-00 |
from US $4.39 |
||
|
18
|
18
3C5-23118-00-00 Spacer |
3C5-23118-00-00 |
from US $12.28 |
||
|
19
|
19
5JX-23111-00-00 Bolt, Cap |
5JX-23111-00-00 |
from US $42 |
||
|
20
|
20
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
21
|
21
3C5-23103-20-00 Front Fork Assy (R.h) |
3C5-23103-20-00 |
from US $501.95 |
||
|
22
|
22
3C5-23136-10-00 Tube, Outer 2 |
3C5-23136-10-00 |
from US $263.89 |
||
|
23
|
23
3C5-23110-00-00 Inner Tube Comp. 1 |
3C5-23110-00-00 |
from US $208.62 |
||
|
24
|
24
5JX-23171-00-00 Piston, Front Fork |
5JX-23171-00-00 |
from US $15.95 |
||
|
25
|
25
3C5-23170-00-00 Cylinder Comp., Front Fork |
3C5-23170-00-00 |
from US $94.92 |
||
|
26
|
26
5JX-23125-00-00 Metal, Slide 1 |
5JX-23125-00-00 |
from US $13.60 |
||
|
27
|
27
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
28
|
28
5JX-23145-00-00 Oil Seal |
5JX-23145-00-00 |
from US $14.84 |
||
|
29
|
29
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
30
|
30
5JX-23144-00-00 Seal, Dust |
5JX-23144-00-00 |
from US $18.03 |
||
|
31
|
31
5XT-23173-00-00 Spindle, Taper |
5XT-23173-00-00 |
from US $18.84 |
||
|
32
|
32
5XT-23363-00-00 Collar 1 |
5XT-23363-00-00 |
from US $5.38 |
||
|
33
|
33
5XT-23151-00-00 Spring, Rebound |
5XT-23151-00-00 |
from US $4.53 |
||
|
34
|
34
1N1-23158-00-00 Gasket |
1N1-23158-00-00 |
from US $2.69 |
||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
36
|
36
3C5-23141-00-00 Spring, Front Fork |
3C5-23141-00-00 |
from US $30.60 |
||
|
37
|
37
4FY-23149-00-00 Washer, Spring Upper |
4FY-23149-00-00 |
from US $4.39 |
||
|
38
|
38
3C5-23118-00-00 Spacer |
3C5-23118-00-00 |
from US $12.28 |
||
|
39
|
39
5JX-23111-00-00 Bolt, Cap |
5JX-23111-00-00 |
from US $42 |
||
|
40
|
40
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
41
|
41
3C5-23191-10-00 Boot (Black) |
3C5-23191-10-00 |
from US $72.88 |
||
|
42
|
42
3C5-23192-00-00 Band |
3C5-23192-00-00 |
from US $10.74 |
||
|
43
|
43
98506-04016-00 Screw, Pan Head |
98506-04016-00 |
from US $1.26 |
||
| replacement | |||||
|
43
|
43
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
44
|
44
3C5-23340-10-00 Under Bracket Comp |
3C5-23340-10-00 |
from US $356 |
||
|
45
|
45
5RS-23346-00-00 Bolt 1 |
5RS-23346-00-00 |
from US $4.39 |
||
