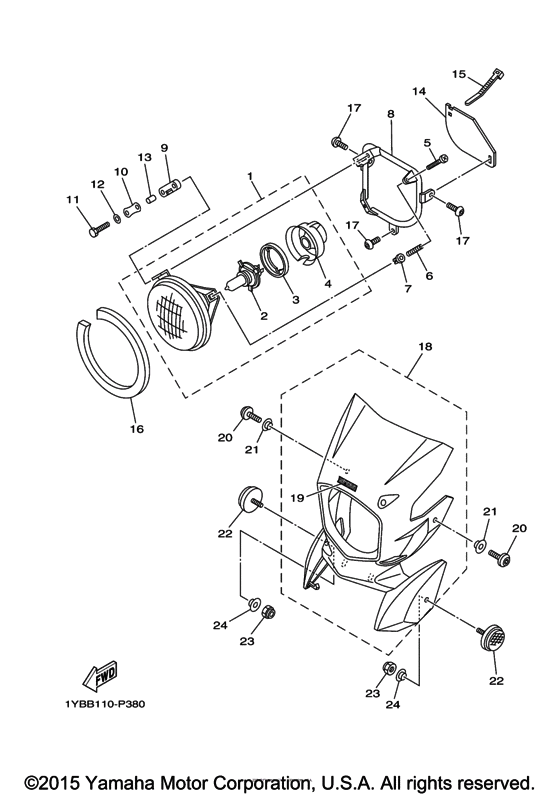

Headlight Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBH
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-84320-00-00 Lens Assy |
3C5-84320-00-00 |
from US $327.44 |
||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)(H4) HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
(H4) HALOGEN |
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
(H4) HALOGEN |
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight(H4) HALOGEN |
5VK-H4314-00-00 |
US $45.92 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight(H4) HALOGEN |
8V0-84314-10-00 |
from US $45.92 |
||
|
3
|
3
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
4
|
4
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
5
|
5
2F9-84331-00-00 Screw, Lens Fitting |
2F9-84331-00-00 |
from US $4.25 |
||
| replacement | |||||
|
5
|
5
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
6
|
6
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
7
|
7
4B4-84334-00-00 Nut, Adjusting |
4B4-84334-00-00 |
from US $1.42 |
||
|
8
|
8
3C5-84315-00-00 Rim, Headlight |
3C5-84315-00-00 |
from US $68.94 |
||
|
9
|
9
3C5-84366-00-00 Damper, Headlight 1 |
3C5-84366-00-00 |
from US $15.30 |
||
|
10
|
10
3C5-84127-00-00 Washer, Special |
3C5-84127-00-00 |
from US $4.39 |
||
|
11
|
11
97002-05020-00 Bolt |
97002-05020-00 |
US $1.42 |
||
| replacements | |||||
|
11
|
11
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
11
|
11
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
12
|
12
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
90387-05383-00 Collar |
90387-05383-00 |
from US $2.69 |
||
|
14
|
14
3C5-84144-00-00 Cover, Headlight |
3C5-84144-00-00 |
from US $8.08 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
16
|
16
3C5-84559-00-00 Damper |
3C5-84559-00-00 |
from US $4.39 |
||
|
17
|
17
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
18
|
18
3C5-Y8450-T0-00 Cover Comp. Assy |
3C5-Y8450-T0-00 |
US $167.74 |
||
|
19
|
19
3WF-2153E-10-00 Emblem, Yamaha |
3WF-2153E-10-00 |
from US $7.65 |
||
| replacement | |||||
|
19
|
19
3WF-2153E-11-00 |
3WF-2153E-11-00 |
from US $7.65 |
||
|
20
|
20
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
21
|
21
90387-061M0-00 Collar |
90387-061M0-00 |
from US $4.11 |
||
|
22
|
22
2EK-85111-00-00 Reflector, Front 1 |
2EK-85111-00-00 |
from US $6.74 |
||
|
23
|
23
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
23
|
23
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
24
|
24
903-87050-38-00 Collar |
903-87050-38-00 |
from US $15.16 |
||
