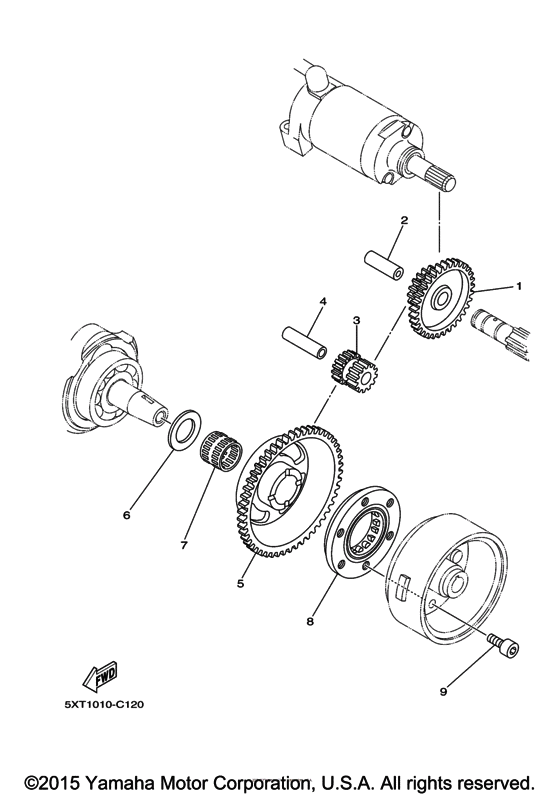

Starter clutch Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBH
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XT-15512-00-00 Gear, Idler 1 (19T/72T) |
5XT-15512-00-00 |
from US $69.91 |
||
|
2
|
2
1VJ-15521-00-00 Shaft 1 |
1VJ-15521-00-00 |
from US $6.40 |
||
|
3
|
3
5XT-15517-00-00 Gear, Idler 2 (16T/14T) |
5XT-15517-00-00 |
from US $48.36 |
||
|
4
|
4
36Y-15521-01-00 Shaft 1 |
36Y-15521-01-00 |
from US $7.76 |
||
|
5
|
5
5XT-15515-00-00 Gear 3 (71T) |
5XT-15515-00-00 |
from US $120.61 |
||
|
6
|
6
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.66 |
||
|
7
|
7
93310-225N0-00 Bearing |
93310-225N0-00 |
from US $24.14 |
||
|
8
|
8
5BP-15590-00-00 Starter One-Way Assy |
5BP-15590-00-00 |
from US $188.52 |
||
|
9
|
9
90110-08053-00 Bolt |
90110-08053-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
