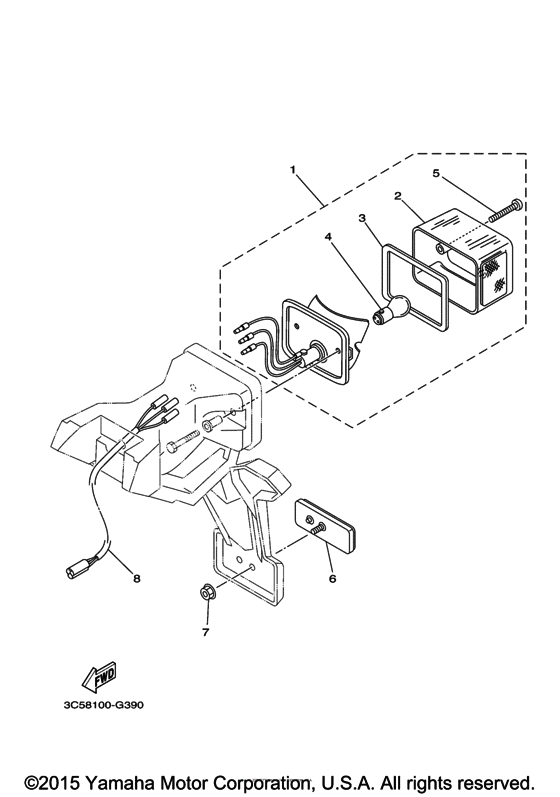

Taillight Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBH
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W9-84710-61-00 Taillight Unit Assy |
1W9-84710-61-00 |
from US $78.34 |
||
|
2
|
2
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
3
|
3
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
3
|
3
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
4
|
4
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
4
|
4
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
4
|
4
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
US $5.13 |
||
|
5
|
5
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
7
|
7
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
7
|
7
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
8
|
8
3C5-84717-00-00 Cord, Taillight |
3C5-84717-00-00 |
US $33.91 |
||
