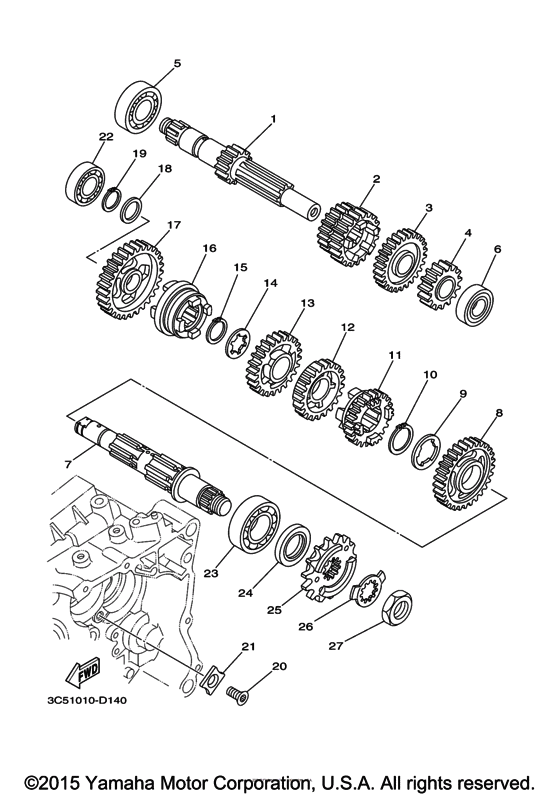

Transmission Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBH
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XT-17411-00-00 Axle, Main (13T) |
5XT-17411-00-00 |
from US $109.15 |
||
|
2
|
2
5XT-17131-00-00 Gear, 3Rd Pinion (22T/28T) |
5XT-17131-00-00 |
from US $82.48 |
||
|
3
|
3
5XT-17151-10-00 Gear, 5Th Pinion (28T) |
5XT-17151-10-00 |
from US $63.69 |
||
|
4
|
4
51Y-17121-00-00 Gear, 2Nd Pinion (16T) |
51Y-17121-00-00 |
from US $24.95 |
||
|
5
|
5
93306-20427-00 Bearing (62/22-9-C3) |
93306-20427-00 |
from US $23.85 |
||
| replacement | |||||
|
5
|
5
93306-20447-00 Bearing |
93306-20447-00 |
from US $23.85 |
||
|
6
|
6
93306-00320-00 Bearing |
93306-00320-00 |
from US $22.47 |
||
|
7
|
7
3C5-17402-00-00 Drive Axle Assy |
3C5-17402-00-00 |
from US $121.44 |
||
|
8
|
8
5XT-17221-00-00 Gear, 2Nd Wheel (29T) |
5XT-17221-00-00 |
from US $47.80 |
||
|
9
|
9
90209-23241-00 Washer |
90209-23241-00 |
from US $1.84 |
||
|
10
|
10
934-10260-67-00
Circlip
|
934-10260-67-00 |
— | ||
| replacement | |||||
|
10
|
10
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.81 |
||
|
11
|
11
5XT-17251-10-00 Gear, 5Th Wheel (23T) |
5XT-17251-10-00 |
from US $55.68 |
||
|
12
|
12
5XT-17241-00-00 Gear, 4Th Wheel (29T) |
5XT-17241-00-00 |
from US $51.53 |
||
|
13
|
13
5XT-17231-00-00 Gear, 3Rd Wheel (29T) |
5XT-17231-00-00 |
from US $56.78 |
||
|
14
|
14
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
15
|
15
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.94 |
||
|
16
|
16
5BP-17285-00-00 Clutch, Dog |
5BP-17285-00-00 |
from US $37.58 |
||
|
17
|
17
3C5-17211-00-00 Gear, 1St Wheel (37T) |
3C5-17211-00-00 |
from US $71.57 |
||
|
18
|
18
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
19
|
19
93410-17037-00 Circlip |
93410-17037-00 |
from US $1.70 |
||
|
20
|
20
901-51060-08-00
Screw, Countersunk
|
901-51060-08-00 |
— | ||
| replacement | |||||
|
20
|
20
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
21
|
21
3C5-17558-00-00 Plate, Bearing |
3C5-17558-00-00 |
US $6.52 |
||
|
22
|
22
93306-20332-00 Bearing |
93306-20332-00 |
from US $19.42 |
||
|
23
|
23
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.19 |
||
|
24
|
24
93102-25226-00 Oil Seal |
93102-25226-00 |
from US $6.94 |
||
| replacement | |||||
|
24
|
24
93102-25218-00 Oil Seal |
93102-25218-00 |
from US $9.98 |
||
|
25
|
25
5XT-17460-00-00 Sprocket, Drive (15T) |
5XT-17460-00-00 |
from US $34.40 |
||
|
26
|
26
902-15232-65-00 Washer, Lock |
902-15232-65-00 |
from US $2.70 |
||
|
27
|
27
90179-18552-00 Nut |
90179-18552-00 |
from US $10.96 |
||
