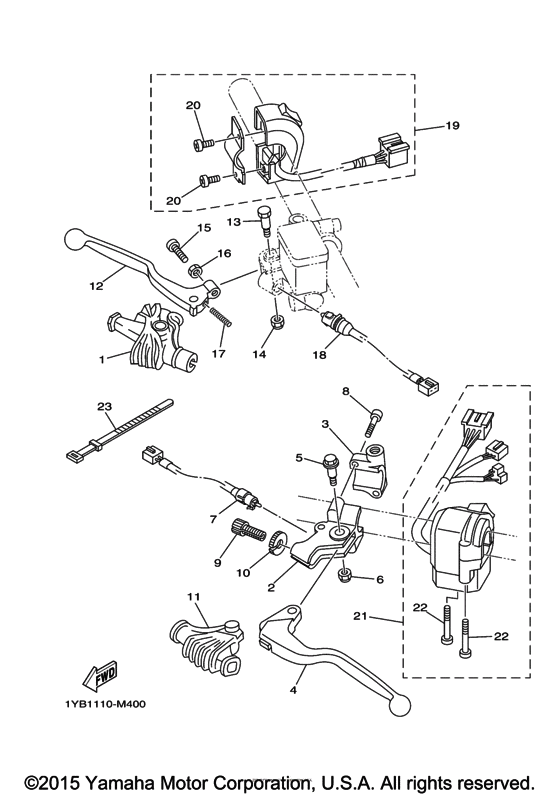

Handle switch & lever Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBJ
- Sales region
- United States (California)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
2
|
2
5XT-82911-00-00 Holder, Lever 1 |
5XT-82911-00-00 |
from US $16.84 |
||
|
3
|
3
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
4
|
4
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
5
|
5
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
6
|
6
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
3C5-82917-00-00 Switch |
3C5-82917-00-00 |
from US $32.60 |
||
|
8
|
8
913-17050-20-00 Bolt |
913-17050-20-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
901-5705X-12-00
Screw, Pan Head
|
901-5705X-12-00 |
— | ||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
12
|
12
55Y-83922-02-00 Lever 2 |
55Y-83922-02-00 |
from US $21.77 |
||
|
13
|
13
90109-06255-00 Bolt |
90109-06255-00 |
from US $1.56 |
||
|
14
|
14
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
90154-06028-00 Screw, Binding |
90154-06028-00 |
from US $1.70 |
||
|
16
|
16
90170-06020-00 Nut |
90170-06020-00 |
from US $1.84 |
||
|
17
|
17
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
18
|
18
3C5-83980-00-00 Front Stop Switch Assy |
3C5-83980-00-00 |
from US $20.69 |
||
|
19
|
19
3C5-83975-10-00 Switch, Handle 2 |
3C5-83975-10-00 |
from US $64.94 |
||
| replacement | |||||
|
19
|
19
3C5-83975-11-00 Switch, Handle 2 |
3C5-83975-11-00 |
from US $62.96 |
||
|
20
|
20
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
21
|
21
3C5-83973-00-00 Switch, Handle 3 |
3C5-83973-00-00 |
US $279.88 |
||
|
22
|
22
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
