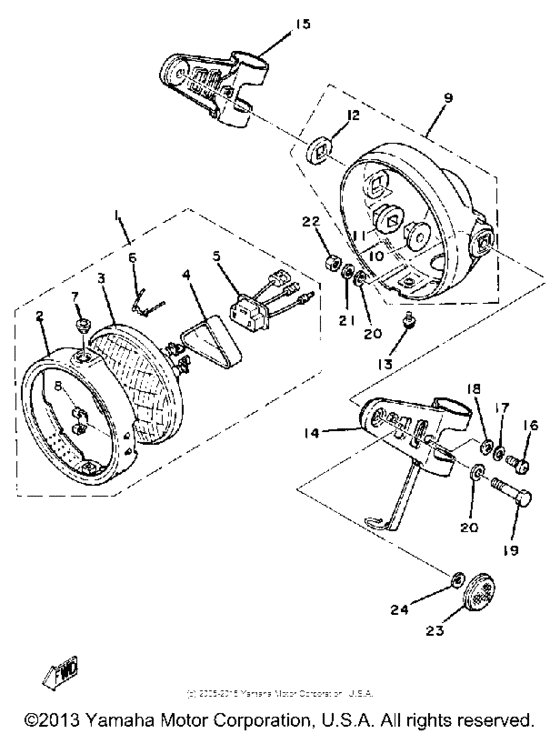

Headlight Diagram Yamaha XT250 XT250
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-84110-60-00
Headlight Unit Assembly
|
3J0-84110-60-00 |
— | ||
|
2
|
2
3J0-84195-60-00 Ring, Retaining |
3J0-84195-60-00 |
from US $64.33 |
||
|
3
|
3
2A6-84120-60-00
Lens Assembly
|
2A6-84120-60-00 |
— | ||
|
4
|
4
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
5
|
5
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
6
|
6
1M1-84124-60-00 Spring, Set |
1M1-84124-60-00 |
from US $6.38 |
||
|
7
|
7
1M1-84133-60-00 Collar, Screw |
1M1-84133-60-00 |
from US $7.23 |
||
|
8
|
8
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
9
|
9
3J0-84130-60-00 Body Assembly, Headlight |
3J0-84130-60-00 |
from US $82.78 |
||
|
10
|
10
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.66 |
||
|
11
|
11
498-84163-60-00 Damper |
498-84163-60-00 |
from US $9.63 |
||
|
12
|
12
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
13
|
13
1M1-84137-60-00 Bolt, Special |
1M1-84137-60-00 |
from US $9.09 |
||
|
14
|
14
3Y1-84118-01-00
Stay, Headlight 1
|
3Y1-84118-01-00 |
— | ||
|
15
|
15
3Y1-84119-01-00
Stay, Headlight 2
|
3Y1-84119-01-00 |
— | ||
|
16
|
16
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
16
|
16
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
17
|
17
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
19
|
19
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
19
|
19
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
24
|
24
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
