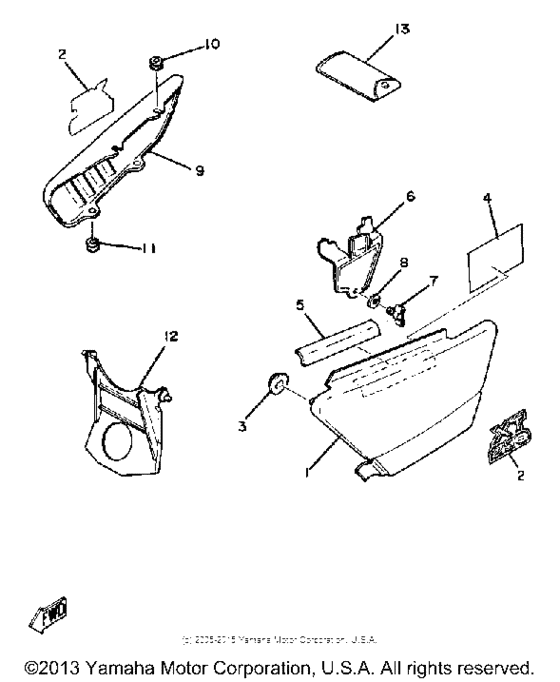

Side cover - tool Diagram Yamaha XT250 XT250
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-21711-00-20
Cover, Side 1
U.R. CRYSTAL SILVER |
3Y1-21711-00-20 |
— | ||
|
1
|
1
3Y1-21711-00-63
Cover, Side 1
U.R. BRILLIANT RED |
3Y1-21711-00-63 |
— | ||
|
2
|
2
3Y1-21786-10-00
Emblem 6
|
3Y1-21786-10-00 |
— | ||
|
3
|
3
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
4
|
4
3Y1-21683-10-00
Plate, Spec
|
3Y1-21683-10-00 |
— | ||
|
5
|
5
3Y1-21746-00-00 Damper 3 |
3Y1-21746-00-00 |
from US $2.13 |
||
| replacement | |||||
|
5
|
5
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.35 |
||
|
6
|
6
3Y1-28185-00-00
Lid
|
3Y1-28185-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90122-05010-00
Bolt, Wing
|
90122-05010-00 |
— | ||
|
8
|
8
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
8
|
8
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
9
|
9
3Y1-21721-00-20
Cover, Side 2
U.R. CRYSTAL SILVER |
3Y1-21721-00-20 |
— | ||
|
9
|
9
3Y1-21721-00-63
Cover, Side 2
U.R. BRILLIANT RED |
3Y1-21721-00-63 |
— | ||
|
10
|
10
90480-08264-00 Grommet |
90480-08264-00 |
from US $1.84 |
||
|
11
|
11
90480-08264-00 Grommet |
90480-08264-00 |
from US $1.84 |
||
|
12
|
12
3Y1-2177F-00-00
Cover
|
3Y1-2177F-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3Y1-W2810-00-00
Tool Kit
|
3Y1-W2810-00-00 |
— | ||
