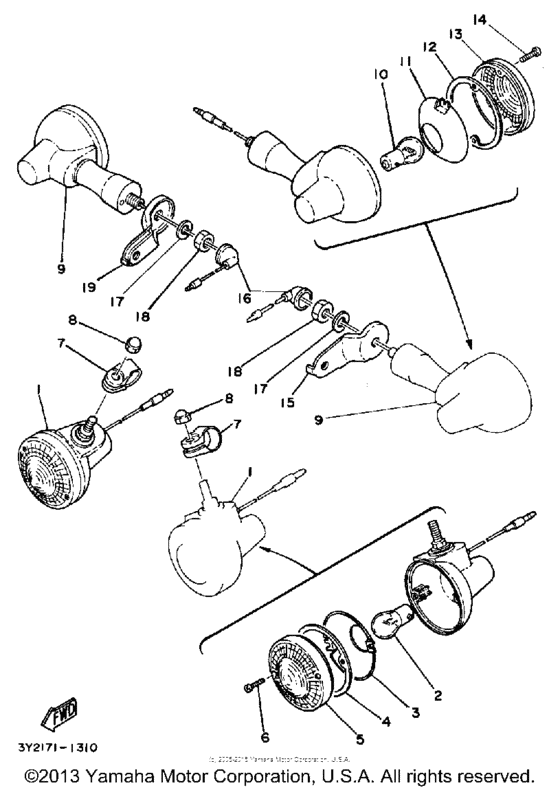

Flasher light Diagram Yamaha XT250 XT250
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-83310-60-00
Front Flasher Light Assembly 1
|
1M1-83310-60-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
3
|
3
1M1-83309-60-00
Reflector
|
1M1-83309-60-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1M1-83313-60-00
Gasket, Flasher Lens
|
1M1-83313-60-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
6
|
6
97780-30120-00 Screw, Panhead Tap |
97780-30120-00 |
from US $1.84 |
||
|
7
|
7
1M1-83318-00-00 Stay, Flasher 1 |
1M1-83318-00-00 |
from US $10.67 |
||
|
8
|
8
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
|
9
|
9
1T9-83330-60-00 R Flshr Lite Assembly |
1T9-83330-60-00 |
from US $153.36 |
||
|
10
|
10
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
10
|
10
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
11
|
11
1M1-83309-60-00
Reflector
|
1M1-83309-60-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1M1-83313-60-00
Gasket, Flasher Lens
|
1M1-83313-60-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
14
|
14
97780-30120-00 Screw, Panhead Tap |
97780-30120-00 |
from US $1.84 |
||
|
15
|
15
1T2-83368-00-00 Stay, FlasherStay, flasher 1 |
1T2-83368-00-00 |
from US $35.56 |
||
|
16
|
16
3Y1-83365-00-00
Cap
|
3Y1-83365-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
18
|
18
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
19
|
19
1T2-83369-00-00 Stay, FlasherStay, flasher 2 |
1T2-83369-00-00 |
from US $35.56 |
||
