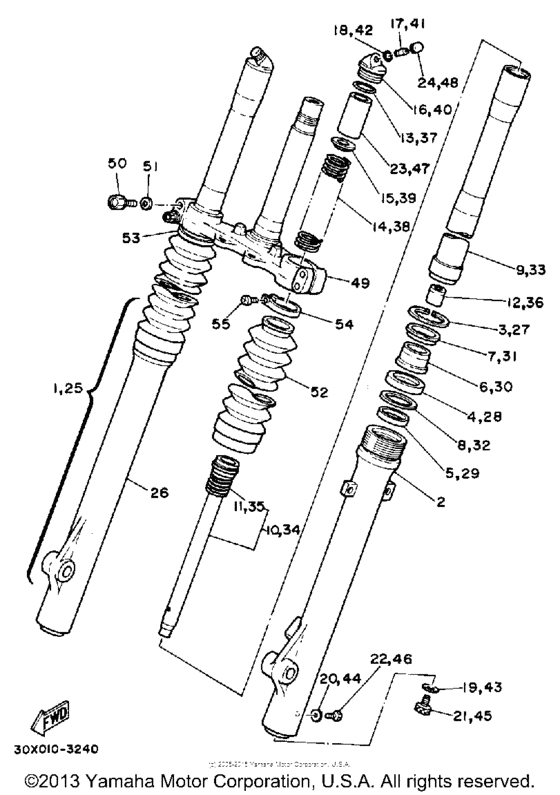

Front fork Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42U-23102-00-00
Front Fork Assembly L
|
42U-23102-00-00 |
— | ||
|
2
|
2
30X-23126-00-38
Tube, Outer 1
CLEAR BUFF |
30X-23126-00-38 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
5
|
5
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
6
|
6
509-23144-L0-00
Seal, Dust
|
509-23144-L0-00 |
— | ||
|
7
|
7
3R8-23148-L0-00
Cover, Dust Seal
|
3R8-23148-L0-00 |
— | ||
|
8
|
8
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
9
|
9
30X-23110-00-00 Inner Tube Comp.1 |
30X-23110-00-00 |
US $244.30 |
||
|
10
|
10
30X-23170-00-00
Cylinder, Frtfrk
|
30X-23170-00-00 |
— | ||
|
11
|
11
2X7-23151-00-00 Spring, Rebound |
2X7-23151-00-00 |
US $18.40 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
13
|
13
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
14
|
14
30X-23141-00-00 Spring, Front Fork |
30X-23141-00-00 |
US $78.66 |
||
|
15
|
15
1W1-23141-L0-00
Spring, Front Fork
|
1W1-23141-L0-00 |
— | ||
|
16
|
16
33M-23111-00-00
Bolt, Cap
|
33M-23111-00-00 |
— | ||
|
17
|
17
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
18
|
18
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
19
|
19
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
20
|
20
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
21
|
21
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
21
|
21
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
22
|
22
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
22
|
22
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
22
|
22
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
23
|
23
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
24
|
24
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
25
|
25
42U-23103-00-00
Front Fork Assembly R
|
42U-23103-00-00 |
— | ||
|
26
|
26
30X-23136-00-38
Tube, Outer 2
CLEAR BUFF |
30X-23136-00-38 |
— | ||
|
27
|
27
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
28
|
28
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
29
|
29
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
30
|
30
509-23144-L0-00
Seal, Dust
|
509-23144-L0-00 |
— | ||
|
31
|
31
3R8-23148-L0-00
Cover, Dust Seal
|
3R8-23148-L0-00 |
— | ||
|
32
|
32
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
33
|
33
30X-23110-00-00 Inner Tube Comp.1 |
30X-23110-00-00 |
US $244.30 |
||
|
34
|
34
30X-23170-00-00
Cylinder, Frtfrk
|
30X-23170-00-00 |
— | ||
|
35
|
35
2X7-23151-00-00 Spring, Rebound |
2X7-23151-00-00 |
US $18.40 |
||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
37
|
37
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
38
|
38
30X-23141-00-00 Spring, Front Fork |
30X-23141-00-00 |
US $78.66 |
||
|
39
|
39
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
40
|
40
33M-23111-00-00
Bolt, Cap
|
33M-23111-00-00 |
— | ||
|
41
|
41
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
42
|
42
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
43
|
43
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
44
|
44
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
45
|
45
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
45
|
45
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
46
|
46
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
46
|
46
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
46
|
46
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
47
|
47
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
48
|
48
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
49
|
49
30X-23340-00-39
Under Bracket
NO BUFF |
30X-23340-00-39 |
— | ||
|
50
|
50
5X6-23128-L0-00
Bolt, Axle Holder
|
5X6-23128-L0-00 |
— | ||
|
51
|
51
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
51
|
51
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
52
|
52
30X-23191-00-00
Boot, Front Fork
|
30X-23191-00-00 |
— | ||
| replacement | |||||
|
52
|
52
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
53
|
53
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
54
|
54
48Y-23192-00-00
Band
|
48Y-23192-00-00 |
— | ||
|
55
|
55
1W4-23194-L0-00 Screw, Boot Band |
1W4-23194-L0-00 |
from US $4.53 |
||
