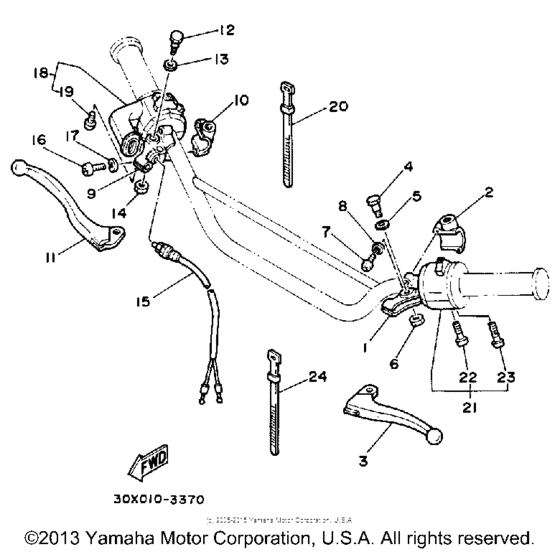

Handle switch & lever Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-82911-00-00 Holder, Lever 1 |
33G-82911-00-00 |
from US $33.44 |
||
| replacement | |||||
|
1
|
1
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
3FY-83912-01-00
Lever 1
|
3FY-83912-01-00 |
— | ||
| replacement | |||||
|
3
|
3
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
4
|
4
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
4
|
4
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
5
|
5
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
6
|
6
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
33G-82921-00-00
Holder, Lever 2
|
33G-82921-00-00 |
— | ||
|
10
|
10
33G-82923-00-00 Holder,lever Lower |
33G-82923-00-00 |
from US $19.60 |
||
| replacement | |||||
|
10
|
10
33G-82923-01-00 Holder, Lever Lower |
33G-82923-01-00 |
from US $13.91 |
||
|
11
|
11
5Y1-83922-10-00 Lever R (5Y1-83922-00)5Y1-83922-00 |
5Y1-83922-10-00 |
from US $24.23 |
||
| replacement | |||||
|
11
|
11
5Y1-83922-11-00 LEVER 25Y1-83922-00 |
5Y1-83922-11-00 |
from US $19.09 |
||
|
12
|
12
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
12
|
12
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
13
|
13
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
1M1-83980-30-00
Front Stop Switch As
AS |
1M1-83980-30-00 |
— | ||
| replacement | |||||
|
15
|
15
1M1-83980-31-00 Front Stop Switch AssyAS |
1M1-83980-31-00 |
from US $23.52 |
||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
17
|
17
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
18
|
18
43F-83976-00-00
Switch, Handle 1
|
43F-83976-00-00 |
— | ||
|
19
|
19
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
21T-83973-00-00
Switch,handle Wr250Zj Wr200Adr
|
21T-83973-00-00 |
— | ||
| replacement | |||||
|
21
|
21
21T-83973-01-00
Switch, Handle 3
|
21T-83973-01-00 |
— | ||
|
22
|
22
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
23
|
23
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
23
|
23
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
