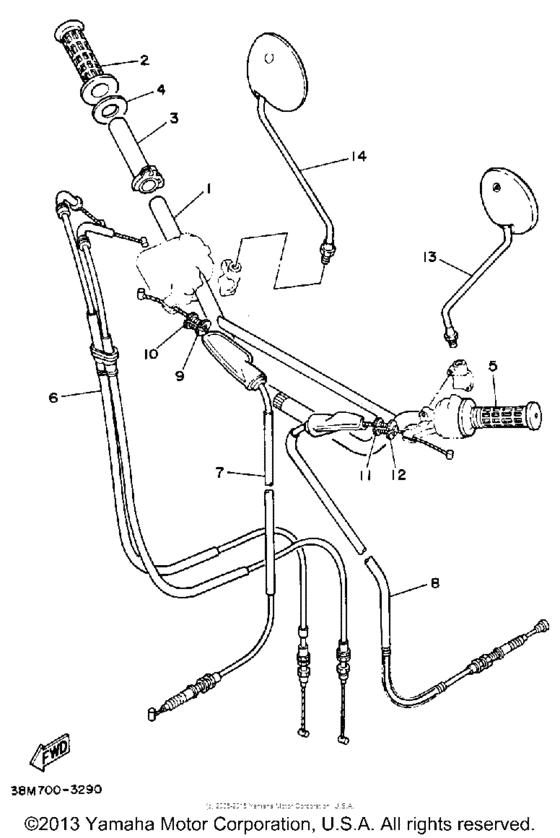

Handlebar - cable Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1EU-26111-00-00
Handlebar
|
1EU-26111-00-00 |
— | ||
|
2
|
2
33G-26242-00-00 Grip (Right) |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
2
|
2
33G-26242-01-00 Grip (Right) |
33G-26242-01-00 |
from US $14.09 |
||
|
3
|
3
3Y1-26243-01-00 Tube,throttle Guide |
3Y1-26243-01-00 |
from US $21.39 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
33G-26241-00-00 Grip (Left) |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
5
|
5
33G-26241-01-00 Grip (Left) |
33G-26241-01-00 |
from US $19.94 |
||
|
6
|
6
30X-26302-00-00 Throttle Cable Assembly |
30X-26302-00-00 |
from US $56.12 |
||
| replacement | |||||
|
6
|
6
30X-26302-01-00 Throttle Cable Assembly |
30X-26302-01-00 |
from US $49.68 |
||
|
7
|
7
38M-26341-00-00
Cable, Brake
|
38M-26341-00-00 |
— | ||
|
8
|
8
38M-26335-00-00
Cable, clutch
|
38M-26335-00-00 |
— | ||
|
9
|
9
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
12
|
12
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
13
|
13
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
13
|
13
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
14
|
14
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
