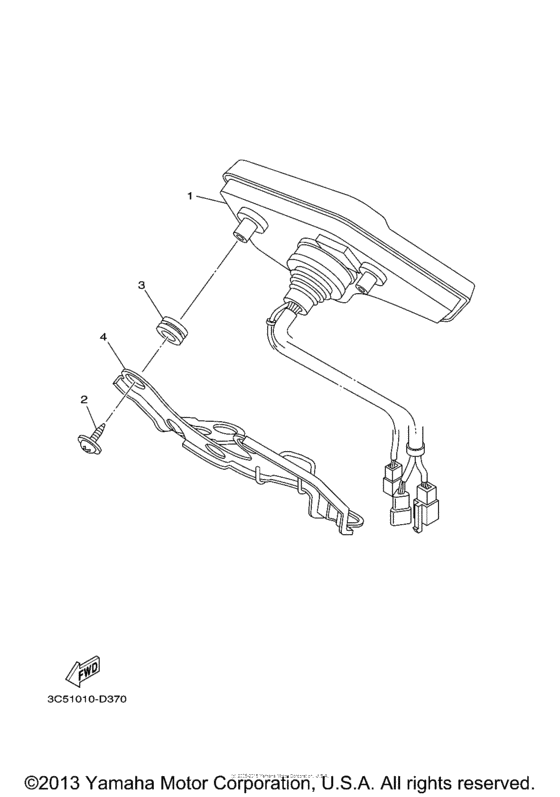

Meter Diagram Yamaha XT250 XT250
- Year
- 2010
- Model code
- 3C5J
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-83500-41-00 Meter Assy |
3C5-83500-41-00 |
from US $520.79 |
||
| replacements | |||||
|
1
|
1
3C5-83500-43-00 CARBURETOR ASSY CA |
3C5-83500-43-00 |
from US $520.79 |
||
|
1
|
1
3C5-83500-44-00 |
3C5-83500-44-00 |
US $623.52 |
||
|
2
|
2
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
2
|
2
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.81 |
||
|
3
|
3
90480-14555-00 Grommet |
90480-14555-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
4
|
4
3C5-83519-00-00 Bracket, Meter |
3C5-83519-00-00 |
from US $23.38 |
||
