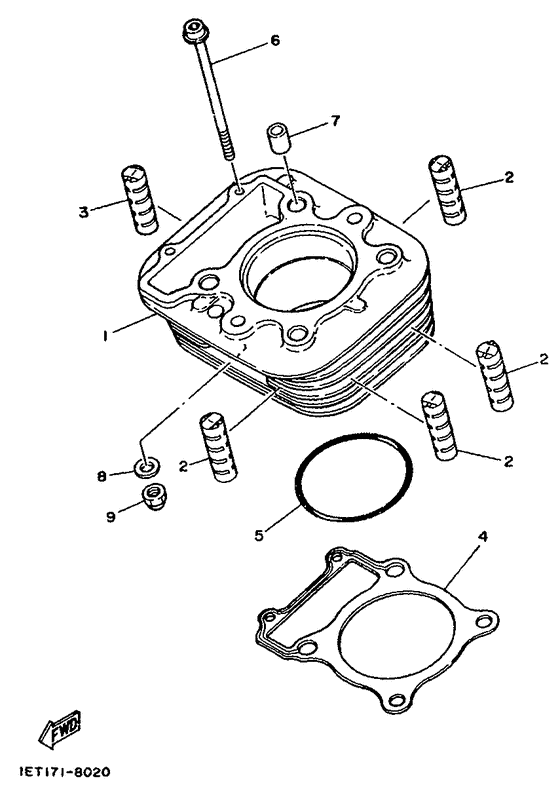

Cylinder Diagram Yamaha XT350 XT350
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4FC4
- Sales region
- Oceania (999)
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
55V-11310-03-00 Cylinder |
55V-11310-03-00 |
from US $571.56 |
||
|
02
|
02
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
03
|
03
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
04
|
04
4DR-11351-00-00 Gasket, Cylinder |
4DR-11351-00-00 |
from US $15.30 |
||
|
05
|
05
93210-89447-00 O/ring |
93210-89447-00 |
from US $6.74 |
||
|
06
|
06
90105-06406-00 Bolt, Flange |
90105-06406-00 |
from US $7.23 |
||
|
07
|
07
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
08
|
08
90201-08702-00
Washer, Plate
|
90201-08702-00 |
— | ||
|
09
|
09
90176-08026-00 Nut, Crown |
90176-08026-00 |
from US $1.28 |
