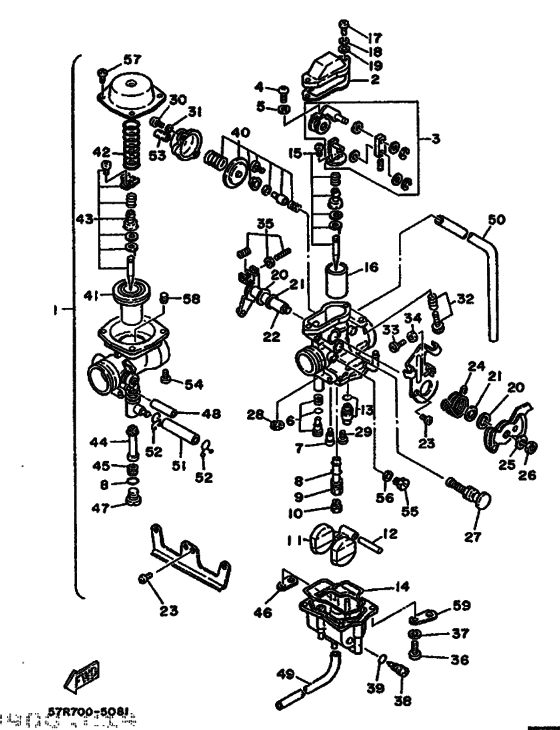

Carburetor Diagram Yamaha XT350 XT350
- Year
- 1987
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 55V0
- Sales region
- Europe (070)
- Engine Capacity
- 350
- Color Variant
- A
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55V-14301-00-00
Carburetor Assy 1
|
55V-14301-00-00 |
— | ||
| replacements | |||||
|
1
|
1
55V-14301-06-00
Carburetor Assy 1
|
55V-14301-06-00 |
— | ||
|
1
|
1
55V-14301-05-00
Carburetor Assy 1
|
55V-14301-05-00 |
— | ||
|
2
|
2
30X-14198-00-00 Gasket |
30X-14198-00-00 |
from US $9.21 |
||
|
3
|
3
30X-14203-00-00
Bracket 1
|
30X-14203-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1LN-14291-00-00
Bracket 1
|
1LN-14291-00-00 |
— | ||
|
4
|
4
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
30X-14105-00-00
Pilot Screw Set (30X-14105-00
|
30X-14105-00-00 |
— | ||
| replacement | |||||
|
6
|
6
51Y-14105-00-00 Pilot Screw Set (30X-14105-00) |
51Y-14105-00-00 |
from US $12.42 |
||
|
7
|
7
30X-14342-21-00 Jet, Pilot ( 42) |
30X-14342-21-00 |
from US $12.60 |
||
|
8
|
8
360-24512-00-00 O-Ring |
360-24512-00-00 |
from US $4.68 |
||
|
9
|
9
51Y-14341-00-00
Nozzle, Main
|
51Y-14341-00-00 |
— | ||
|
10
|
10
288-14343-60-00 Jet, Main |
288-14343-60-00 |
from US $12.31 |
||
|
11
|
11
5Y1-14385-00-00 Float |
5Y1-14385-00-00 |
from US $101.69 |
||
|
12
|
12
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
13
|
13
5Y1-14107-00-00
Needle Valve Set
|
5Y1-14107-00-00 |
— | ||
| replacement | |||||
|
13
|
13
1JK-14107-01-00 Needle Valve Set |
1JK-14107-01-00 |
from US $43.11 |
||
|
14
|
14
30X-14384-00-00 Gasket, Float Chamber |
30X-14384-00-00 |
from US $15.87 |
||
|
15
|
15
51Y-1490J-00-00
Needle Set
|
51Y-1490J-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1EU-1490J-00-00
Needle Set
|
1EU-1490J-00-00 |
— | ||
|
16
|
16
30X-14312-35-00
301 Valve, Throttle 1
|
30X-14312-35-00 |
— | ||
| replacement | |||||
|
16
|
16
2JX-14312-35-00 Valve, Throttle 1 |
2JX-14312-35-00 |
from US $73.92 |
||
|
17
|
17
985-01040-16-00
Screw, Pan Head
|
985-01040-16-00 |
— | ||
| replacement | |||||
|
17
|
17
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
18
|
18
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
20
|
20
5Y1-14357-00-00
Washer, Plain
|
5Y1-14357-00-00 |
— | ||
|
21
|
21
5Y1-14572-00-00 Plate, Stay |
5Y1-14572-00-00 |
from US $12.89 |
||
|
22
|
22
51Y-14316-00-00 301 Lever, Throttle 2 |
51Y-14316-00-00 |
US $73.85 |
||
| replacement | |||||
|
22
|
22
1LN-14930-00-00
Throttle Shaft Assembly
|
1LN-14930-00-00 |
— | ||
|
23
|
23
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
24
|
24
30X-14131-00-00
Spring, Throttle Valve
|
30X-14131-00-00 |
— | ||
|
25
|
25
5Y1-14356-00-00
Washer, Spring
|
5Y1-14356-00-00 |
— | ||
|
26
|
26
5Y1-14358-00-00
Nut
|
5Y1-14358-00-00 |
— | ||
|
27
|
27
15A-14371-00-00
Plunger Starter
|
15A-14371-00-00 |
— | ||
| replacement | |||||
|
27
|
27
15A-14371-01-00
Plunger, Starter
|
15A-14371-01-00 |
— | ||
|
28
|
28
5Y1-14356-00-00
Washer, Spring
|
5Y1-14356-00-00 |
— | ||
|
29
|
29
989-01040-06-00
Screw,bind
|
989-01040-06-00 |
— | ||
| replacement | |||||
|
29
|
29
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
30
|
30
97801-04010-00 Screw, Pan Head |
97801-04010-00 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
31
|
31
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
32
|
32
30X-14103-00-00 Throttle Screw Set |
30X-14103-00-00 |
from US $16.16 |
||
| replacement | |||||
|
32
|
32
3WP-14103-00-00 Throttle Screw Set |
3WP-14103-00-00 |
from US $16.16 |
||
|
33
|
33
30X-14216-00-00 Screw |
30X-14216-00-00 |
US $7.42 |
||
|
34
|
34
30X-14358-00-00 Nut |
30X-14358-00-00 |
from US $2.69 |
||
|
35
|
35
30X-1490K-00-00
Stop Screw Set
|
30X-1490K-00-00 |
— | ||
|
36
|
36
97801-04012-00 Screw,pan Head |
97801-04012-00 |
from US $1.28 |
||
| replacement | |||||
|
36
|
36
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
37
|
37
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
37
|
37
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
38
|
38
5Y1-14115-00-00 Plug, Screw |
5Y1-14115-00-00 |
from US $36.61 |
||
|
39
|
39
5Y1-14397-00-00 O-Ring |
5Y1-14397-00-00 |
from US $5.41 |
||
|
40
|
40
5Y1-1490A-00-00 Diaphragm Set 1 |
5Y1-1490A-00-00 |
from US $30.87 |
||
|
41
|
41
30X-14340-00-00
Valve Assy
|
30X-14340-00-00 |
— | ||
| replacements | |||||
|
41
|
41
30X-14340-01-00
Valve Assembly
|
30X-14340-01-00 |
— | ||
|
41
|
41
51Y-14340-00-00
Valve Assy
|
51Y-14340-00-00 |
— | ||
|
42
|
42
30X-14286-00-00 Spring |
30X-14286-00-00 |
from US $8.26 |
||
|
43
|
43
1EU-1490J-00-00
Needle Set
|
1EU-1490J-00-00 |
— | ||
|
44
|
44
30X-14355-00-00
301 Nozzle, Main 2
|
30X-14355-00-00 |
— | ||
|
45
|
45
30X-14343-51-00 Jet, MainJet, main (120) |
30X-14343-51-00 |
US $7.52 |
||
|
46
|
46
5Y1-14146-00-00 Plate |
5Y1-14146-00-00 |
from US $12.89 |
||
|
47
|
47
30X-14394-00-00
Valve, Drain
|
30X-14394-00-00 |
— | ||
|
48
|
48
5Y1-14349-00-00 Pipe |
5Y1-14349-00-00 |
from US $5.67 |
||
|
49
|
49
5Y1-14396-00-00 Pipe |
5Y1-14396-00-00 |
from US $6.17 |
||
|
50
|
50
34K-14197-00-00 Pipe |
34K-14197-00-00 |
from US $7.51 |
||
| replacement | |||||
|
50
|
50
5Y1-14197-00-00 Pipe |
5Y1-14197-00-00 |
from US $9.54 |
||
|
51
|
51
30X-14148-00-00 Pipe |
30X-14148-00-00 |
from US $8.93 |
||
|
52
|
52
5Y1-14159-00-00 Clip |
5Y1-14159-00-00 |
from US $7.23 |
||
|
53
|
53
30X-14149-00-00
Pipe
|
30X-14149-00-00 |
— | ||
|
54
|
54
985-03040-10-00
Screw, Pan Head
|
985-03040-10-00 |
— | ||
| replacement | |||||
|
54
|
54
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
55
|
55
5H0-14991-00-00 Screw |
5H0-14991-00-00 |
from US $3.54 |
||
|
56
|
56
5H0-14126-00-00 Gasket |
5H0-14126-00-00 |
from US $6.61 |
||
|
57
|
57
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
57
|
57
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
58
|
58
30X-14337-70-00
Air Jet, Main
|
30X-14337-70-00 |
— | ||
| replacement | |||||
|
58
|
58
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
59
|
59
42U-14146-00-00 Plate |
42U-14146-00-00 |
from US $2.98 |
||
