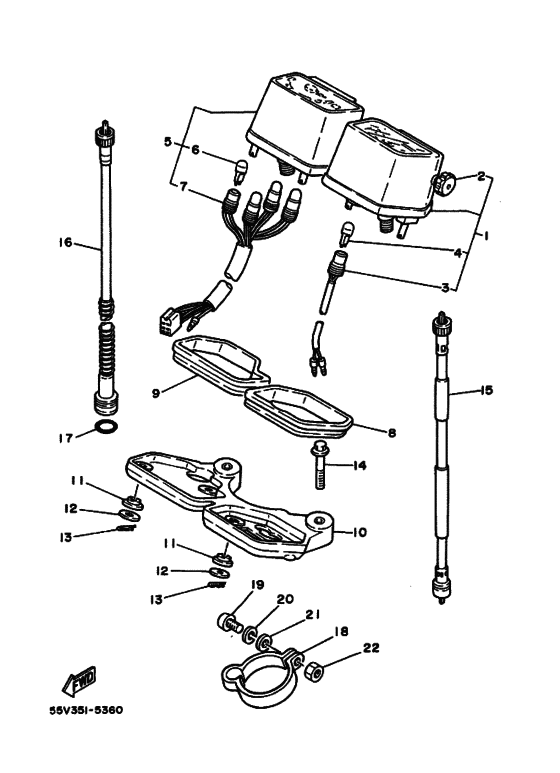

Meter Diagram Yamaha XT350 XT350
- Year
- 1987
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 55V0
- Sales region
- Europe (070)
- Engine Capacity
- 350
- Color Variant
- A
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57R-83570-F0-00 Speedometer Assy |
57R-83570-F0-00 |
US $306.53 |
||
| replacement | |||||
|
1
|
1
34L-83570-F1-00
Speedometer Assy
|
34L-83570-F1-00 |
— | ||
|
2
|
2
5Y1-83578-00-00 Knob, Trip Meter |
5Y1-83578-00-00 |
from US $20.83 |
||
|
3
|
3
5Y1-83536-00-00 Socket Cord Assy |
5Y1-83536-00-00 |
from US $27.68 |
||
| replacement | |||||
|
3
|
3
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
4
|
4
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-5W |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
4
|
4
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-5W |
4G1-84744-00-XX |
— | ||
|
5
|
5
55V-83540-00-00 Tachometer Assembly |
55V-83540-00-00 |
US $475.72 |
||
| replacement | |||||
|
5
|
5
1ET-83540-00-00
Tachometer Assy
|
1ET-83540-00-00 |
— | ||
|
6
|
6
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-5W |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
6
|
6
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-5W |
4G1-84744-00-XX |
— | ||
|
7
|
7
30X-83520-00-00 Socket Cord Assembly (30X-835 |
30X-83520-00-00 |
from US $75.30 |
||
| replacement | |||||
|
7
|
7
5Y1-83520-00-00 Socket Cord Assembly (30X-835 |
5Y1-83520-00-00 |
from US $75.30 |
||
|
8
|
8
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
9
|
9
5Y1-83541-00-00 Damper |
5Y1-83541-00-00 |
from US $18.99 |
||
|
10
|
10
5Y1-83519-00-00 Bracket, Meter |
5Y1-83519-00-00 |
from US $56.65 |
||
|
11
|
11
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
12
|
12
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
13
|
13
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
13
|
13
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
14
|
14
95806-06040-00 Bolt Hexagon |
95806-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
15
|
15
48Y-83550-00-00 Speedometer Cable Assy |
48Y-83550-00-00 |
from US $24.01 |
||
| replacement | |||||
|
15
|
15
48Y-83550-03-00 Speedometer Cable Assy |
48Y-83550-03-00 |
from US $39.98 |
||
|
16
|
16
30X-83560-00-00
Tachometer Cable Ass
|
30X-83560-00-00 |
— | ||
| replacement | |||||
|
16
|
16
30X-83560-01-00 Tachometer Cable Assy |
30X-83560-01-00 |
from US $24.26 |
||
|
17
|
17
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
17
|
17
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
18
|
18
3Y1-26397-00-00
Band
|
3Y1-26397-00-00 |
— | ||
|
19
|
19
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
19
|
19
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
19
|
19
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
20
|
20
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
21
|
21
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
21
|
21
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
21
|
21
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
