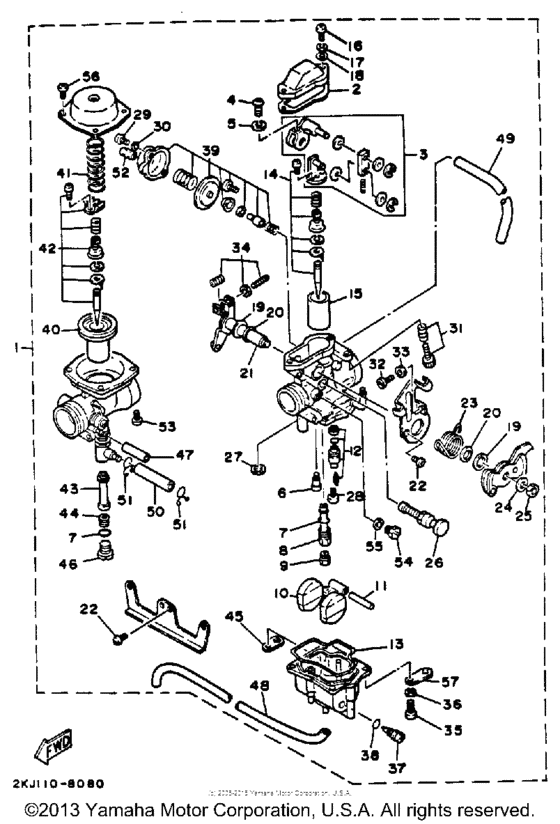

Carburetor (Non-calinia) Diagram Yamaha XT350 XT350
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57T-14301-02-00
Carburetor Assy 1
|
57T-14301-02-00 |
— | ||
| replacement | |||||
|
1
|
1
57T-14301-05-00
Carburetor Assy 1
|
57T-14301-05-00 |
— | ||
|
2
|
2
30X-14198-00-00 Gasket |
30X-14198-00-00 |
from US $9.21 |
||
|
3
|
3
30X-14203-00-00
Bracket 1
|
30X-14203-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1LN-14291-00-00
Bracket 1
|
1LN-14291-00-00 |
— | ||
|
4
|
4
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
30X-14342-21-00 Jet, Pilot ( 42)42 |
30X-14342-21-00 |
from US $12.60 |
||
|
7
|
7
360-24512-00-00 O-Ring |
360-24512-00-00 |
from US $4.68 |
||
|
8
|
8
51Y-14341-00-00
Nozzle, Main
|
51Y-14341-00-00 |
— | ||
|
9
|
9
288-14343-63-00 Jet, Main |
288-14343-63-00 |
from US $12.44 |
||
|
10
|
10
5Y1-14385-00-00 Float |
5Y1-14385-00-00 |
from US $101.69 |
||
|
11
|
11
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
12
|
12
1JK-14107-01-00 Needle Valve Set |
1JK-14107-01-00 |
from US $43.11 |
||
|
13
|
13
30X-14384-00-00 Gasket, Float Chamber |
30X-14384-00-00 |
from US $15.87 |
||
|
14
|
14
57T-1490J-10-00
Needle Set
|
57T-1490J-10-00 |
— | ||
|
15
|
15
30X-14312-35-00
301 Valve, Throttle 1
|
30X-14312-35-00 |
— | ||
| replacement | |||||
|
15
|
15
2JX-14312-35-00 Valve, Throttle 1 |
2JX-14312-35-00 |
from US $73.92 |
||
|
16
|
16
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
17
|
17
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
19
|
19
5Y1-14357-00-00
Washer, Plain
|
5Y1-14357-00-00 |
— | ||
|
20
|
20
5Y1-14572-00-00 Plate, Stay |
5Y1-14572-00-00 |
from US $12.89 |
||
|
21
|
21
1LN-14930-00-00
Throttle Shaft Assembly
|
1LN-14930-00-00 |
— | ||
|
22
|
22
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
23
|
23
30X-14131-00-00
Spring, Throttle Valve
|
30X-14131-00-00 |
— | ||
|
24
|
24
5Y1-14356-00-00
Washer, Spring
|
5Y1-14356-00-00 |
— | ||
|
25
|
25
5Y1-14358-00-00
Nut
|
5Y1-14358-00-00 |
— | ||
|
26
|
26
15A-14371-00-00
Plunger Starter
|
15A-14371-00-00 |
— | ||
| replacement | |||||
|
26
|
26
15A-14371-01-00
Plunger, Starter
|
15A-14371-01-00 |
— | ||
|
27
|
27
5Y1-14536-00-00 Gasket |
5Y1-14536-00-00 |
from US $7.54 |
||
|
28
|
28
989-01040-06-00
Screw,bind
|
989-01040-06-00 |
— | ||
| replacement | |||||
|
28
|
28
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
29
|
29
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
30
|
30
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
31
|
31
3WP-14103-00-00 Throttle Screw Set |
3WP-14103-00-00 |
from US $16.16 |
||
|
32
|
32
30X-14216-00-00 Screw |
30X-14216-00-00 |
US $7.42 |
||
|
33
|
33
30X-14358-00-00 Nut |
30X-14358-00-00 |
from US $2.69 |
||
|
34
|
34
30X-1490K-00-00
Stop Screw Set
|
30X-1490K-00-00 |
— | ||
|
35
|
35
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
36
|
36
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
37
|
37
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $13.86 |
||
|
38
|
38
5Y1-14397-00-00 O-Ring |
5Y1-14397-00-00 |
from US $5.41 |
||
|
39
|
39
5Y1-1490A-00-00 Diaphragm Set 1 |
5Y1-1490A-00-00 |
from US $30.87 |
||
|
40
|
40
30X-14340-01-00
Valve Assembly
|
30X-14340-01-00 |
— | ||
|
41
|
41
30X-14286-00-00 Spring |
30X-14286-00-00 |
from US $8.26 |
||
|
42
|
42
57T-1490J-00-00
Needle Set
|
57T-1490J-00-00 |
— | ||
|
43
|
43
30X-14355-00-00
301 Nozzle, Main 2
|
30X-14355-00-00 |
— | ||
|
44
|
44
30X-14343-53-00 Jet, Main (106)106 |
30X-14343-53-00 |
US $31.03 |
||
|
45
|
45
5Y1-14146-00-00 Plate |
5Y1-14146-00-00 |
from US $12.89 |
||
|
46
|
46
1RG-14394-00-00
Valve, Drain (30X-14394-00)
30X-14394-00 |
1RG-14394-00-00 |
— | ||
|
47
|
47
5Y1-14349-00-00 Pipe |
5Y1-14349-00-00 |
from US $5.67 |
||
|
48
|
48
5Y1-14396-00-00 Pipe |
5Y1-14396-00-00 |
from US $6.17 |
||
|
49
|
49
5Y1-14197-00-00 Pipe |
5Y1-14197-00-00 |
from US $9.54 |
||
|
50
|
50
30X-14148-00-00 Pipe |
30X-14148-00-00 |
from US $8.93 |
||
|
51
|
51
5Y1-14159-00-00 Clip |
5Y1-14159-00-00 |
from US $7.23 |
||
|
52
|
52
30X-14149-00-00
Pipe
|
30X-14149-00-00 |
— | ||
|
53
|
53
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
54
|
54
5H0-14991-00-00 Screw |
5H0-14991-00-00 |
from US $3.54 |
||
|
55
|
55
5H0-14126-00-00 Gasket |
5H0-14126-00-00 |
from US $6.61 |
||
|
56
|
56
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
57
|
57
30X-14146-00-00
301 Plate
|
30X-14146-00-00 |
— | ||
| replacement | |||||
|
57
|
57
999-99999-99-00
Not Available
|
