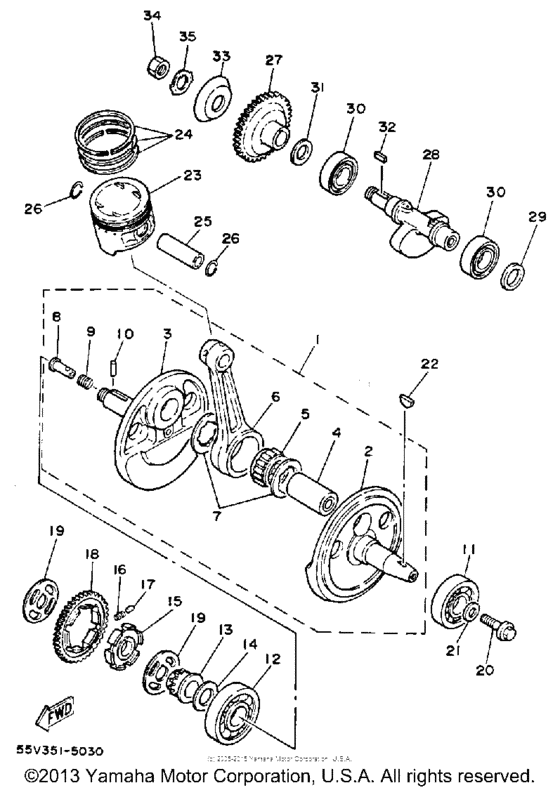

Crankshaft & Piston Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55V-11400-02-00
Crankshaft Assembly
|
55V-11400-02-00 |
— | ||
|
2
|
2
55V-11412-00-00 Crank 1 |
55V-11412-00-00 |
US $404.57 |
||
|
3
|
3
55V-11422-01-00
Crank 2
|
55V-11422-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
51Y-11681-00-00 Pin, Crank 1 |
51Y-11681-00-00 |
US $89.04 |
||
|
5
|
5
93310-738N1-00 Bearing |
93310-738N1-00 |
from US $60.15 |
||
|
6
|
6
51Y-11651-01-00 Rod, Connecting |
51Y-11651-01-00 |
from US $146.45 |
||
|
7
|
7
90209-38266-00 Washer |
90209-38266-00 |
from US $7.67 |
||
|
8
|
8
90240-07105-00 Pin, Clevis |
90240-07105-00 |
from US $7.93 |
||
|
9
|
9
90501-07629-00 Spring, Compression |
90501-07629-00 |
from US $1.70 |
||
|
10
|
10
93602-13177-00 Pin, Dowel (5H0) |
93602-13177-00 |
from US $1.81 |
||
|
11
|
11
933-06306-30-00 Bearing(3Kw) |
933-06306-30-00 |
from US $48.50 |
||
|
12
|
12
933-06306-30-00 Bearing(3Kw) |
933-06306-30-00 |
from US $48.50 |
||
|
13
|
13
30X-11549-00-00 Sprocket, Cam Chain |
30X-11549-00-00 |
US $31 |
||
|
14
|
14
90209-23242-00
Washer
|
90209-23242-00 |
— | ||
|
15
|
15
30X-11496-00-00 Boss, Buffer |
30X-11496-00-00 |
from US $68.67 |
||
|
16
|
16
90501-22721-00 Spring, Compression |
90501-22721-00 |
from US $1.94 |
||
|
17
|
17
93605-10090-00 Pin, Dowel |
93605-10090-00 |
from US $1.94 |
||
|
18
|
18
51Y-11531-00-00 Gear, Balance WtWT |
51Y-11531-00-00 |
US $141.82 |
||
|
19
|
19
30X-11565-00-00 Washer, Bearing Cover |
30X-11565-00-00 |
from US $9.21 |
||
|
20
|
20
901-05102-90-00
Bolt, Flange
|
901-05102-90-00 |
— | ||
| replacement | |||||
|
20
|
20
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
21
|
21
90201-102J5-00 Washer, Plate |
90201-102J5-00 |
from US $3.83 |
||
|
22
|
22
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
22
|
22
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
23
|
23
55V-11631-01-Y0 Piston -Std |
55V-11631-01-Y0 |
from US $113.84 |
||
|
23
|
23
55V-11636-01-00 Piston -050Mm O/s0.50MM O/S AP |
55V-11636-01-00 |
from US $113.84 |
||
|
23
|
23
55V-11638-01-00 Piston -100Mm O/s1.00MM O/S AP |
55V-11638-01-00 |
from US $113.84 |
||
|
24
|
24
55V-11610-00-00 Piston Ring Set -StdPiston ring set (std) |
55V-11610-00-00 |
from US $68.78 |
||
|
24
|
24
55V-11610-20-00 Piston Ring Set (0.50Mm O/S).Piston ring set (2.ug) 0.50MM O/S AP |
55V-11610-20-00 |
from US $67.28 |
||
|
24
|
24
55V-11610-40-00 PISTON RING SET (1.00MM O/S)Piston ring set (4.ug) 1.00MM O/S AP |
55V-11610-40-00 |
from US $67.28 |
||
|
25
|
25
55V-11633-00-00 Pin, Piston |
55V-11633-00-00 |
from US $18.18 |
||
|
26
|
26
93450-19095-00 Circlip |
93450-19095-00 |
from US $1.81 |
||
|
27
|
27
51Y-11536-00-00
Gear, Drive
|
51Y-11536-00-00 |
— | ||
|
28
|
28
55V-11454-00-00
Weight 1
|
55V-11454-00-00 |
— | ||
|
29
|
29
93101-25106-00 Oil Seal |
93101-25106-00 |
from US $5.74 |
||
|
30
|
30
93306-20573-00 Bearing (B6205C4) |
93306-20573-00 |
from US $25.79 |
||
| replacement | |||||
|
30
|
30
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
31
|
31
90201-207G6-00 Washer, Plate |
90201-207G6-00 |
from US $9.92 |
||
|
32
|
32
90282-05034-00 Key, Straight |
90282-05034-00 |
from US $1.70 |
||
|
33
|
33
34K-11145-00-00 Plate, Breather 2 |
34K-11145-00-00 |
US $8.49 |
||
|
34
|
34
90170-16326-00 Nut |
90170-16326-00 |
from US $4.04 |
||
|
35
|
35
90215-16221-00 Washer, Lock |
90215-16221-00 |
from US $3.40 |
||
