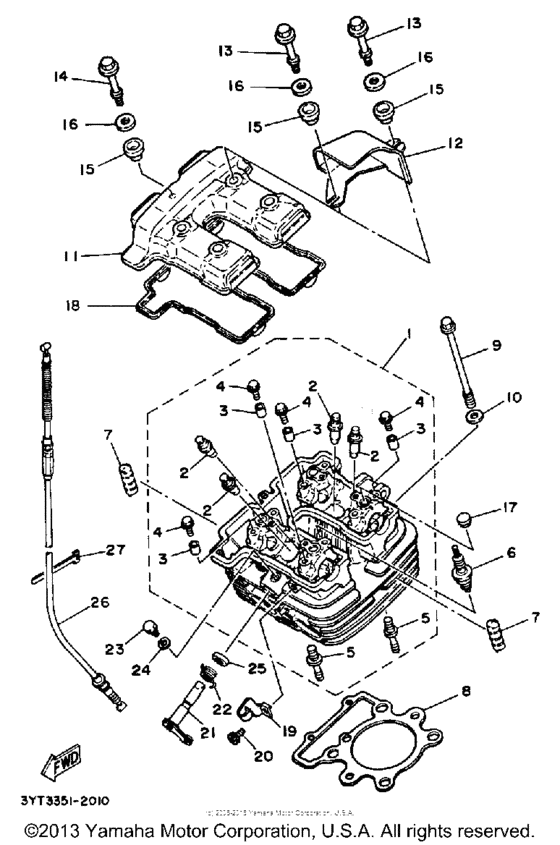

Cylinder head Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55V-11110-01-00
Cylinder Head Assy
|
55V-11110-01-00 |
— | ||
| replacements | |||||
|
1
|
1
55V-11101-02-00
Cylinder Head Assy
|
55V-11101-02-00 |
— | ||
|
1
|
1
55V-11101-01-00
Cylinder Head Assy
|
55V-11101-01-00 |
— | ||
|
2
|
2
999-99022-42-00 Guide, Intake |
999-99022-42-00 |
from US $52.74 |
||
|
3
|
3
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
3
|
3
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
4
|
4
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
5
|
5
901-16103-78-00 Bolt, Stud |
901-16103-78-00 |
US $14.59 |
||
|
6
|
6
NGK-D8EA0-00-00 Ngk-D8Ea-10 PkPK UR |
NGK-D8EA0-00-00 |
US $5.30 |
||
| replacement | |||||
|
6
|
6
D8E-A0000-00-00 Spark plug D8EAPK UR |
D8E-A0000-00-00 |
US $50.20 |
||
|
6
|
6
94701-00181-00
Nippon Denso Sparkplug X24Es-U
X24ES-U XJ550RH UR |
94701-00181-00 |
— | ||
|
7
|
7
30X-11161-00-00
Absorber 1
|
30X-11161-00-00 |
— | ||
|
8
|
8
55V-11181-00-00 Gasket, Cyl Head 1 |
55V-11181-00-00 |
from US $31.74 |
||
|
9
|
9
90105-10608-00 Bolt, Flange |
90105-10608-00 |
from US $8.69 |
||
|
10
|
10
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
11
|
11
30X-11191-01-00
Cover, Cylinder Head 1
|
30X-11191-01-00 |
— | ||
|
12
|
12
30X-11192-01-00
Cover, Cylinder Head 2
|
30X-11192-01-00 |
— | ||
|
13
|
13
90109-064F0-00 Bolt |
90109-064F0-00 |
from US $5.24 |
||
|
14
|
14
901-09065-84-00
Bolt
|
901-09065-84-00 |
— | ||
|
15
|
15
2GH-1111G-00-00 Rubber, Mount 1 |
2GH-1111G-00-00 |
from US $6.24 |
||
|
16
|
16
902-09112-62-00 Washer |
902-09112-62-00 |
from US $1.98 |
||
|
17
|
17
90338-11125-00 Plug |
90338-11125-00 |
from US $1.94 |
||
|
18
|
18
30X-11193-00-00
Gasket, Head Cover 1
|
30X-11193-00-00 |
— | ||
| replacement | |||||
|
18
|
18
30X-11193-01-00 Gasket, Head Cover 1 |
30X-11193-01-00 |
from US $53.12 |
||
|
19
|
19
30X-12283-00-00
Bracket,decompression
|
30X-12283-00-00 |
— | ||
|
20
|
20
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
21
|
21
30X-12288-00-00
Cam, Decompression
|
30X-12288-00-00 |
— | ||
|
22
|
22
90508-18606-00
Spring, Torsion (30X)
|
90508-18606-00 |
— | ||
|
23
|
23
90109-06778-00 Bolt |
90109-06778-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90109-06418-00 Bolt |
90109-06418-00 |
from US $1.70 |
||
|
24
|
24
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
25
|
25
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
26
|
26
30X-12292-00-00 Cable, Decompression |
30X-12292-00-00 |
from US $65.21 |
||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
