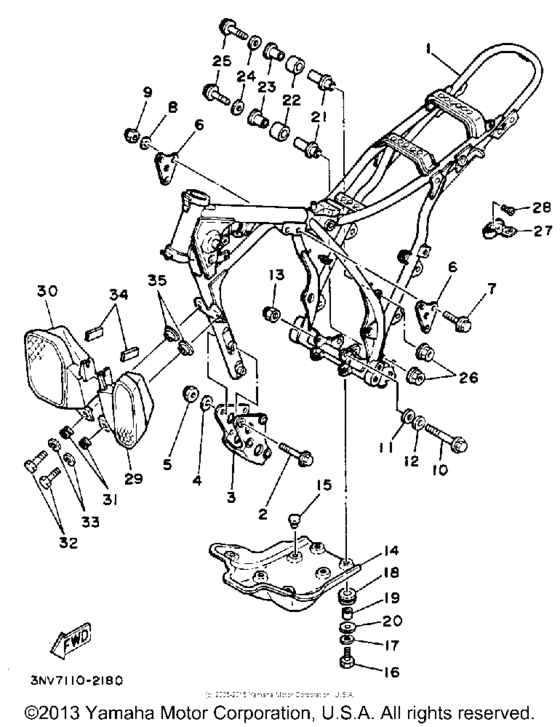

Frame Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57T-21110-00-WL
Frame
UR STARDUST SILVER NON-CA |
57T-21110-00-WL |
— | ||
| replacement | |||||
|
1
|
1
56R-21110-00-TR
Frame Comp
UR STARDUST SILVER NON-CA |
56R-21110-00-TR |
— | ||
|
1
|
1
56R-21110-00-WL
Frame
UR STARDUST SILVER FOR CA |
56R-21110-00-WL |
— | ||
|
2
|
2
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
3
|
3
30X-21316-00-WL
Stay, Engine 3
STARDUST SILVER |
30X-21316-00-WL |
— | ||
|
4
|
4
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
5
|
5
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
6
|
6
30X-21315-00-00
Stay, Engine 1
|
30X-21315-00-00 |
— | ||
|
7
|
7
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
7
|
7
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
8
|
8
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
9
|
9
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
11
|
11
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
12
|
12
92901-08800-00 Washer, Wave |
92901-08800-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
92907-08800-00 Washer |
92907-08800-00 |
from US $1.40 |
||
|
13
|
13
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
14
|
14
30X-21471-01-00
Protector, Engine
|
30X-21471-01-00 |
— | ||
|
15
|
15
30X-24768-00-00 Stopper |
30X-24768-00-00 |
from US $7.49 |
||
|
16
|
16
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $2.08 |
||
|
19
|
19
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
19
|
19
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
20
|
20
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $2.08 |
||
|
21
|
21
2K7-2148A-00-00 Shaft |
2K7-2148A-00-00 |
from US $13.18 |
||
|
22
|
22
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
23
|
23
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
24
|
24
90201-08310-00 Washer, Plate |
90201-08310-00 |
from US $1.70 |
||
|
25
|
25
95816-08050-00 Bolt, Flange(1Kg) |
95816-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
26
|
26
95616-08100-00 Nut, U (5V6) |
95616-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
27
|
27
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
27
|
27
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
28
|
28
90149-06285-00 Screw, Countersunk |
90149-06285-00 |
from US $2.13 |
||
| replacement | |||||
|
28
|
28
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
29
|
29
55V-2137W-30-00
Scoop, Air 1
GREENISH BLUE SOLID 1 |
55V-2137W-30-00 |
— | ||
|
30
|
30
55V-2137X-30-00
Scoop, Air 2
GREENISH BLUE SOLID 1 |
55V-2137X-30-00 |
— | ||
|
31
|
31
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
32
|
32
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
32
|
32
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
33
|
33
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
34
|
34
30X-2139X-00-00
Damper
|
30X-2139X-00-00 |
— | ||
| replacement | |||||
|
34
|
34
90520-05025-00 Damper, Plate |
90520-05025-00 |
from US $1.69 |
||
|
35
|
35
90209-06223-00 Washer |
90209-06223-00 |
from US $1.70 |
||
| replacement | |||||
|
35
|
35
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
