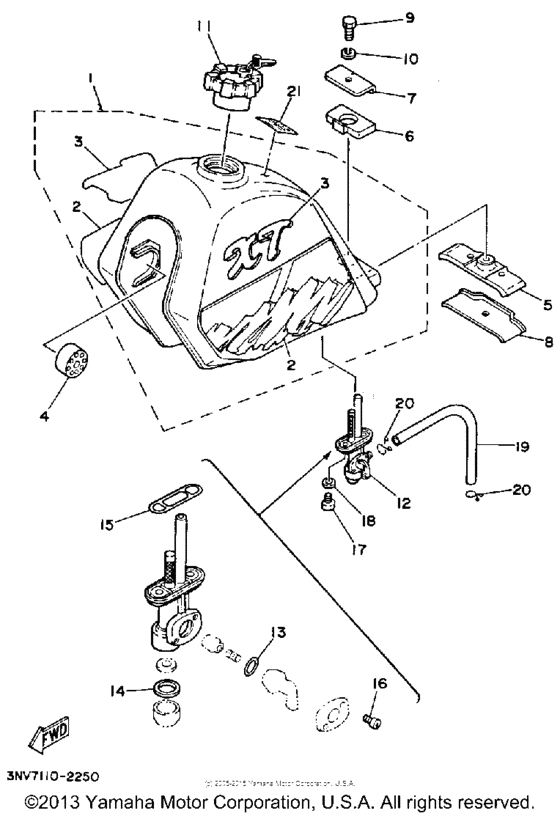

Fuel tank Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-24110-01-W6
Fuel Tank Comp
|
30X-24110-01-W6 |
— | ||
|
2
|
2
3NV-24240-00-00
Graphic Set
|
3NV-24240-00-00 |
— | ||
|
3
|
3
3NV-24231-00-00
Emblem 1
|
3NV-24231-00-00 |
— | ||
|
4
|
4
4L0-24181-00-00 Damper, Locating 1 |
4L0-24181-00-00 |
from US $8.93 |
||
|
5
|
5
30X-24182-01-00 Damper, Locating 2 |
30X-24182-01-00 |
from US $10.91 |
||
|
6
|
6
30X-24183-01-00 Damper, Locating 3 |
30X-24183-01-00 |
from US $8.08 |
||
|
7
|
7
30X-24186-01-00 Washer, Special |
30X-24186-01-00 |
from US $3.68 |
||
|
8
|
8
30X-24187-00-00 Washer, Special |
30X-24187-00-00 |
from US $14.31 |
||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
48Y-24602-00-00 Cap Assy |
48Y-24602-00-00 |
from US $125.73 |
||
|
12
|
12
15A-24500-03-00 Fuel Cock Assy |
15A-24500-03-00 |
from US $31.03 |
||
| replacement | |||||
|
12
|
12
23F-24500-20-00 Fuel Cock Assy 1 |
23F-24500-20-00 |
from US $34.12 |
||
|
13
|
13
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
14
|
14
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
15
|
15
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $2.08 |
||
|
16
|
16
4X8-24535-00-00 Screw, Lever Fitting |
4X8-24535-00-00 |
US $5.45 |
||
|
17
|
17
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
18
|
18
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
19
|
19
90445-10008-00 Hose (L110) |
90445-10008-00 |
from US $3.68 |
||
| replacement | |||||
|
19
|
19
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $4.03 |
||
|
20
|
20
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
20
|
20
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
21
|
21
3MX-2118K-00-00
Label, Caution
|
3MX-2118K-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
