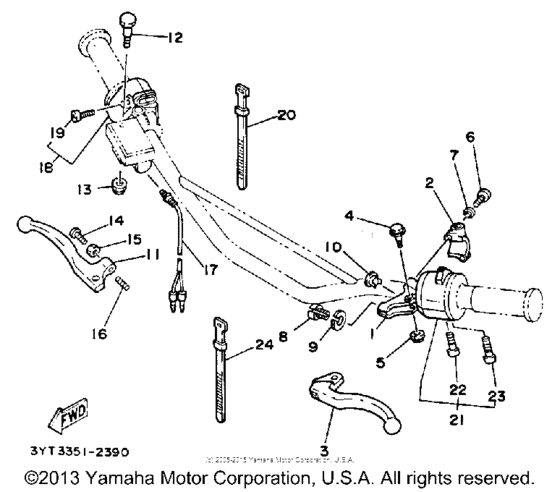

Handle switch-lever Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
3FY-83912-01-00
Lever 1
|
3FY-83912-01-00 |
— | ||
| replacement | |||||
|
3
|
3
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
5
|
5
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
503-83956-00-00
Cap (Black)
|
503-83956-00-00 |
— | ||
|
11
|
11
3FY-83922-00-00
Lever R
|
3FY-83922-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3FY-83922-01-00 Lever 2 |
3FY-83922-01-00 |
from US $20.71 |
||
|
12
|
12
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
13
|
13
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
14
|
14
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
15
|
15
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
16
|
16
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
17
|
17
34X-83980-01-00 Stop Switch Asy |
34X-83980-01-00 |
from US $32.94 |
||
| replacement | |||||
|
17
|
17
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
18
|
18
43F-83976-00-00
Switch, Handle 1
|
43F-83976-00-00 |
— | ||
|
19
|
19
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
21T-83973-00-00
Switch,handle Wr250Zj Wr200Adr
|
21T-83973-00-00 |
— | ||
| replacement | |||||
|
21
|
21
21T-83973-01-00
Switch, Handle 3
|
21T-83973-01-00 |
— | ||
|
22
|
22
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
23
|
23
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
23
|
23
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
