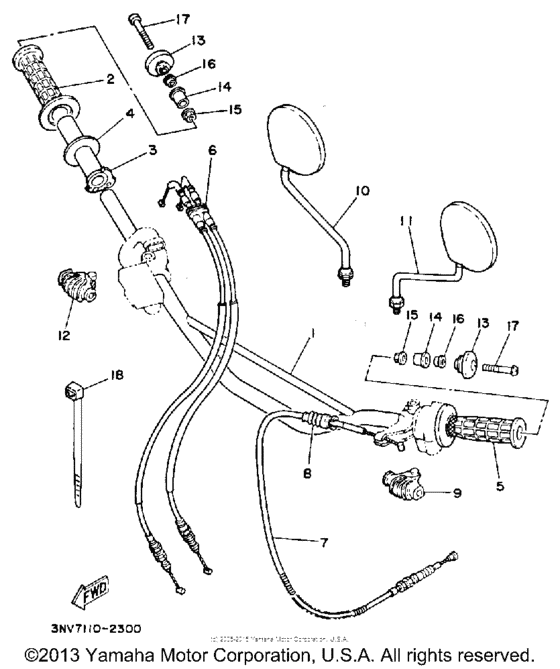

Handlebar-cable Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1EU-26111-10-00 Handlebar |
1EU-26111-10-00 |
US $93.55 |
||
| replacement | |||||
|
1
|
1
1EU-26111-00-00
Handlebar
|
1EU-26111-00-00 |
— | ||
|
2
|
2
55V-26242-00-00
Grip (Right)
|
55V-26242-00-00 |
— | ||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
55V-26241-00-00 Grip (LH) |
55V-26241-00-00 |
from US $14.82 |
||
| replacement | |||||
|
5
|
5
55V-26241-01-00 GRIP (LH) |
55V-26241-01-00 |
US $18.27 |
||
|
6
|
6
30X-26302-00-00 Throttle Cable Assembly |
30X-26302-00-00 |
from US $56.12 |
||
| replacement | |||||
|
6
|
6
30X-26302-01-00 Throttle Cable Assembly |
30X-26302-01-00 |
from US $49.68 |
||
|
7
|
7
30X-26335-01-00 Cable, clutch |
30X-26335-01-00 |
from US $30.15 |
||
|
8
|
8
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
9
|
9
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
10
|
10
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
|
11
|
11
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
11
|
11
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
12
|
12
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
13
|
13
55V-26246-00-00
End, Grip
|
55V-26246-00-00 |
— | ||
|
14
|
14
21A-2622F-00-00
Damper, Locating 1 (55V-2622F-0
55V-2622F-0 |
21A-2622F-00-00 |
— | ||
|
15
|
15
90179-06498-00 Nut |
90179-06498-00 |
from US $7.58 |
||
|
16
|
16
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
17
|
17
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
18
|
18
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
18
|
18
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
