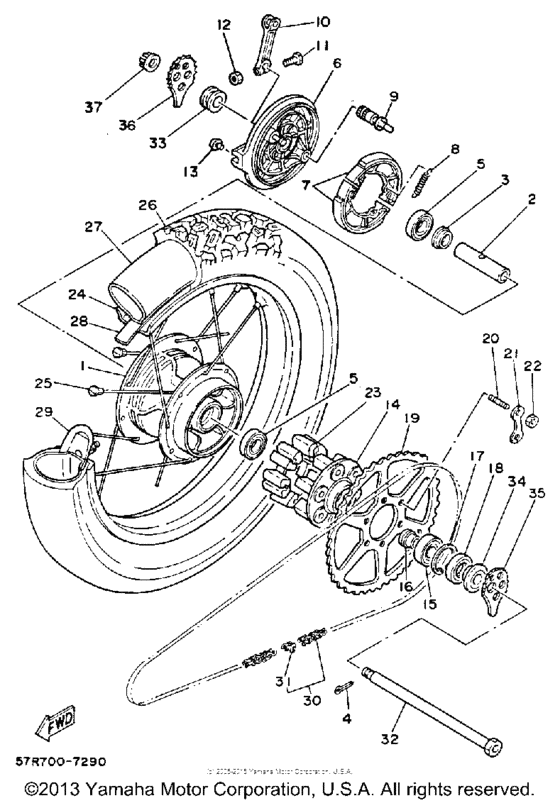

Rear wheel Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-25311-00-98 Hub, Rear |
3Y1-25311-00-98 |
US $429.34 |
||
|
2
|
2
90560-17311-00 Spacer |
90560-17311-00 |
from US $24.65 |
||
|
3
|
3
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
4
|
4
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
4
|
4
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
5
|
5
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
6
|
6
3Y1-25026-00-98
Brake Shoe Plate Assembly
|
3Y1-25026-00-98 |
— | ||
|
7
|
7
3LS-W2536-00-00
Brake Shoe Kit
|
3LS-W2536-00-00 |
— | ||
| replacement | |||||
|
7
|
7
3LS-W253E-00-00 Brake Shoe Kit |
3LS-W253E-00-00 |
from US $35.14 |
||
|
8
|
8
90506-16447-00 Spring, Tension(3Ls) |
90506-16447-00 |
from US $1.35 |
||
| replacement | |||||
|
8
|
8
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
9
|
9
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
9
|
9
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
10
|
10
3R6-25355-01-00 Lever, Camshaft |
3R6-25355-01-00 |
US $36.97 |
||
|
11
|
11
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
13
|
13
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
14
|
14
3Y1-25366-00-98
Clutch, Hub
|
3Y1-25366-00-98 |
— | ||
|
15
|
15
933-06204-46-00 Bearing |
933-06204-46-00 |
from US $15.02 |
||
|
16
|
16
3Y1-25377-00-00
Collar, Wheel
|
3Y1-25377-00-00 |
— | ||
|
17
|
17
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $3.04 |
||
|
18
|
18
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $7.07 |
||
|
19
|
19
55V-25455-50-00
Sprocket, Driven
55T |
55V-25455-50-00 |
— | ||
|
20
|
20
901-16084-25-00 Bolt, Stud |
901-16084-25-00 |
from US $4.11 |
||
|
21
|
21
90215-08160-00 Washer, Lock |
90215-08160-00 |
from US $4.53 |
||
|
22
|
22
90170-08258-00 Nut |
90170-08258-00 |
from US $3.40 |
||
| replacement | |||||
|
22
|
22
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
23
|
23
3Y1-25364-00-00 Damper |
3Y1-25364-00-00 |
from US $2.02 |
||
|
24
|
24
94421-18418-00
Rim
2.15-18 |
94421-18418-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
2.15-18 |
999-99999-99-00 |
— | ||
|
25
|
25
4Y0-25304-00-00 Spoke Set, Rear |
4Y0-25304-00-00 |
from US $156.76 |
||
|
26
|
26
94111-182G9-00 TireTire (110/80-18-58p) 110/80-18-58P BRIDGESTONE |
94111-182G9-00 |
US $203.71 |
||
|
27
|
27
94240-18098-00 Tube (110-140/80-100-18 M/c)4.00-18 DUNLOP |
94240-18098-00 |
US $38.32 |
||
| replacement | |||||
|
27
|
27
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube 4.00-18 DUNLOP |
94212-18188-00 |
US $39.29 |
||
|
28
|
28
94340-18086-00 Band, Rim (2.50-18)2.50-18 BRIDGESTONE |
94340-18086-00 |
from US $4.72 |
||
|
29
|
29
3Y1-25394-00-00 Spacer, Bead |
3Y1-25394-00-00 |
from US $34.11 |
||
|
30
|
30
94580-78130-00 Chain (D.i.d.428Vs-130L) |
94580-78130-00 |
US $321.17 |
||
|
31
|
31
94681-33011-00 Joint, Chain (Did428V2-Fj,1Kh)428V2-FJ |
94681-33011-00 |
from US $4.58 |
||
| replacement | |||||
|
31
|
31
9466X-00011-00 Chain Joint428V2-FJ |
9466X-00011-00 |
US $9.02 |
||
|
32
|
32
42U-25381-00-00 Axle, Wheel |
42U-25381-00-00 |
from US $43.93 |
||
| replacement | |||||
|
32
|
32
4KM-25181-10-00 Axle, Wheel |
4KM-25181-10-00 |
from US $37.29 |
||
|
33
|
33
90387-17141-00 Collar |
90387-17141-00 |
from US $12.61 |
||
| replacement | |||||
|
33
|
33
90387-170X9-00 Collar |
90387-170X9-00 |
from US $12.61 |
||
|
34
|
34
3Y1-25383-00-00 Collar, Wheel |
3Y1-25383-00-00 |
from US $16.15 |
||
|
35
|
35
3Y1-25388-01-00 Puller, Chain 1 |
3Y1-25388-01-00 |
from US $18.42 |
||
|
36
|
36
3Y1-25389-00-00 Puller, Chain 2 |
3Y1-25389-00-00 |
from US $18.42 |
||
|
37
|
37
90171-16024-00 Nut, Castle |
90171-16024-00 |
from US $16.01 |
||
