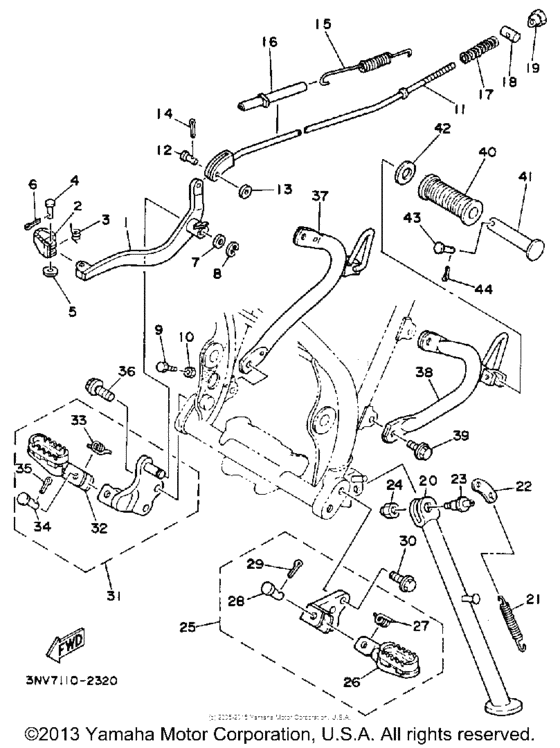

Stand-footrest Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55V-27211-00-00 Pedal, Brake |
55V-27211-00-00 |
US $37.93 |
||
|
2
|
2
55V-27242-00-00 Pedal, Brake |
55V-27242-00-00 |
from US $16.29 |
||
|
3
|
3
90508-14352-00 Spring, Torsion |
90508-14352-00 |
from US $1.81 |
||
|
4
|
4
91701-06022-00 Pin |
91701-06022-00 |
from US $1.66 |
||
|
5
|
5
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
7
|
7
90201-12541-00 Washer, Plate |
90201-12541-00 |
from US $3.26 |
||
|
8
|
8
93430-09038-00 Circlip |
93430-09038-00 |
from US $2.83 |
||
|
9
|
9
901-01062-88-00
Bolt, Hexagon (360)
|
901-01062-88-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
11
|
11
30X-27231-00-00
Rod, Brake
|
30X-27231-00-00 |
— | ||
|
12
|
12
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
13
|
13
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
14
|
14
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
15
|
15
90506-18289-00 Spring, Tension |
90506-18289-00 |
from US $5.24 |
||
|
16
|
16
1M1-27244-00-00 Cover |
1M1-27244-00-00 |
from US $5.38 |
||
|
17
|
17
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
18
|
18
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
19
|
19
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
20
|
20
55V-27311-01-00 Stand, Side |
55V-27311-01-00 |
from US $66.13 |
||
| replacement | |||||
|
20
|
20
55V-27311-02-00 Stand Side |
55V-27311-02-00 |
from US $63.77 |
||
|
21
|
21
90506-29276-00 Spring,tension |
90506-29276-00 |
from US $5.90 |
||
| replacement | |||||
|
21
|
21
4KN-27116-00-00 Spring, Main Stand |
4KN-27116-00-00 |
from US $12.58 |
||
|
22
|
22
42U-27315-01-00 Link, Side Stand |
42U-27315-01-00 |
from US $5.95 |
||
|
23
|
23
90109-10635-00
Bolt
|
90109-10635-00 |
— | ||
|
24
|
24
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $4.16 |
||
|
25
|
25
30X-27410-00-90
Front Footrest Assembly (Left)
|
30X-27410-00-90 |
— | ||
|
26
|
26
22W-27411-01-90 Footrest 1UNI-CHROME BLACK CHROMATE |
22W-27411-01-90 |
from US $29.47 |
||
|
27
|
27
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
28
|
28
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
29
|
29
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
29
|
29
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
30
|
30
95816-08020-00 Bolt, Flange |
95816-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
30
|
30
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
31
|
31
55V-27420-00-90
Front Footrest Assembly (Right)
|
55V-27420-00-90 |
— | ||
|
32
|
32
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 UNI-CHROME BLACK CHROMATE |
22W-27421-01-90 |
from US $36.11 |
||
|
33
|
33
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
34
|
34
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
35
|
35
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
35
|
35
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
36
|
36
95816-08020-00 Bolt, Flange |
95816-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
36
|
36
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
37
|
37
55V-27442-00-33
Bracket 2
YAMAHA BLACK |
55V-27442-00-33 |
— | ||
| replacement | |||||
|
37
|
37
55V-27442-10-00
Bracket 2
YAMAHA BLACK |
55V-27442-10-00 |
— | ||
|
38
|
38
26F-27432-00-33 Bracket 1YAMAHA BLACK |
26F-27432-00-33 |
from US $60.95 |
||
| replacement | |||||
|
38
|
38
26F-27432-10-00 Bracket 1YAMAHA BLACK |
26F-27432-10-00 |
from US $60.95 |
||
|
39
|
39
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
|
40
|
40
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
41
|
41
120-27431-00-00
Footrest, Rear 1
|
120-27431-00-00 |
— | ||
| replacement | |||||
|
41
|
41
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
42
|
42
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
43
|
43
90240-06009-00 Pin |
90240-06009-00 |
from US $1.56 |
||
| replacement | |||||
|
43
|
43
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
44
|
44
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
