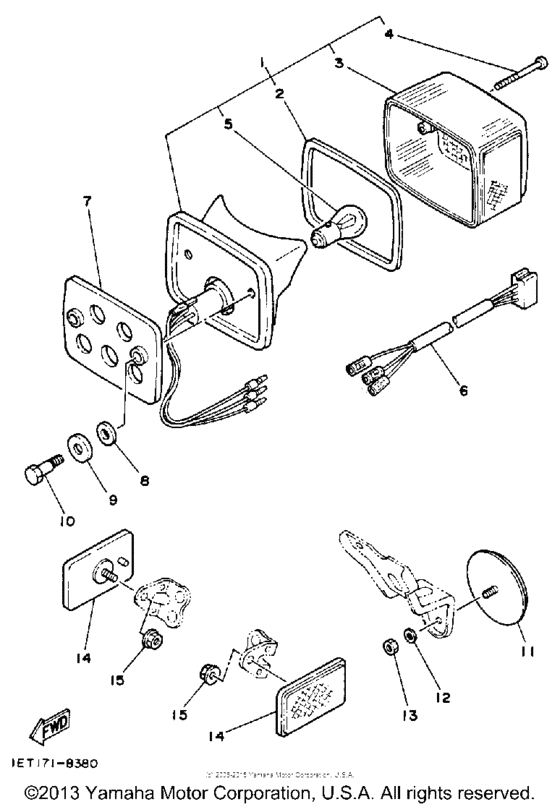

Taillight Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W9-84710-60-00 Taillight Unit Assy |
1W9-84710-60-00 |
from US $78.34 |
||
| replacement | |||||
|
1
|
1
1W9-84710-61-00 Taillight Unit Assy |
1W9-84710-61-00 |
from US $78.34 |
||
|
2
|
2
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
2
|
2
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
4
|
4
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
4
|
4
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
4
|
4
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
5
|
5
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
5
|
5
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
5
|
5
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
|
6
|
6
42U-84517-00-00 Cord, Taillight |
42U-84517-00-00 |
US $20.05 |
||
|
7
|
7
4L0-84753-00-00 Damper |
4L0-84753-00-00 |
from US $10.91 |
||
|
8
|
8
90201-083A0-00 Washer, Plate |
90201-083A0-00 |
from US $1.98 |
||
|
9
|
9
90209-08125-00 Washer |
90209-08125-00 |
from US $3.26 |
||
|
10
|
10
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
11
|
11
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
12
|
12
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
12
|
12
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
12
|
12
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
15
|
15
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
