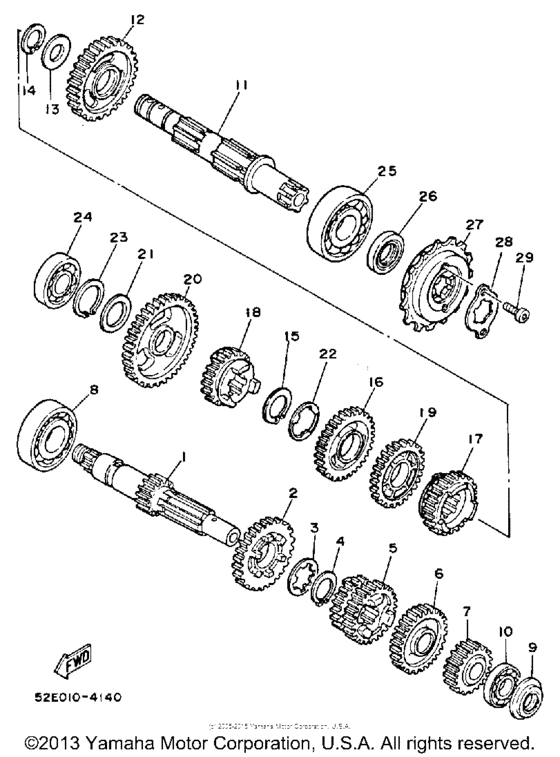

Transmission Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-17411-00-00
Axle, Main
15T |
51Y-17411-00-00 |
— | ||
|
2
|
2
55V-17161-00-00 Gear, 6Th Pinion6TH PINION 29T |
55V-17161-00-00 |
from US $63.23 |
||
| replacement | |||||
|
2
|
2
4GY-17161-01-00 Gear, 6Th Pinion (29T)6TH PINION 29T |
4GY-17161-01-00 |
US $71.01 |
||
|
3
|
3
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
4
|
4
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.81 |
||
|
5
|
5
55V-17131-00-00 Gear, 3Rd PinionGear, 3rd pinion (25z) 3RD PINION 25T |
55V-17131-00-00 |
US $116.59 |
||
|
6
|
6
55V-17151-01-00 301 Gear 5Th Pinion (27T)5TH PINION 27T |
55V-17151-01-00 |
from US $56.51 |
||
| replacement | |||||
|
6
|
6
55V-17151-02-00 Gear, 5Th Pinion5TH PINION 27T |
55V-17151-02-00 |
from US $54.88 |
||
|
7
|
7
51Y-17121-00-00 Gear, 2Nd Pinion (16T)2ND PINION 16T |
51Y-17121-00-00 |
from US $24.95 |
||
|
8
|
8
93306-20427-00 Bearing (62/22-9-C3) |
93306-20427-00 |
from US $23.85 |
||
| replacement | |||||
|
8
|
8
93306-20447-00 Bearing |
93306-20447-00 |
from US $23.85 |
||
|
9
|
9
93101-17093-00 Oil Seal |
93101-17093-00 |
from US $6.09 |
||
|
10
|
10
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $18.52 |
||
|
11
|
11
55V-17402-00-00 Drive Axle Assembly |
55V-17402-00-00 |
US $203.99 |
||
|
12
|
12
51Y-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL 29T |
51Y-17221-00-00 |
— | ||
|
13
|
13
90209-23241-00 Washer |
90209-23241-00 |
from US $1.84 |
||
|
14
|
14
934-10260-67-00
Circlip
|
934-10260-67-00 |
— | ||
| replacement | |||||
|
14
|
14
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.66 |
||
|
15
|
15
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.81 |
||
|
16
|
16
55V-17231-00-00 Gear, 3Rd WheelGear, 3rd wheel (30z) 3RD WHEEL 30T |
55V-17231-00-00 |
US $99.65 |
||
|
17
|
17
55V-17251-00-00
Gear, 5Th Wheel
5TH WHEEL 24T |
55V-17251-00-00 |
— | ||
|
18
|
18
55V-17261-01-00 301 Gear, 6Th Wheel (22T)Gear, 6th wheel (22z) 6TH WHEEL 22T |
55V-17261-01-00 |
US $62.39 |
||
|
19
|
19
55V-17241-00-00 301 Gear, 4Th WheelGear, 4th wheel 927z)) 4TH WHEEL 27T |
55V-17241-00-00 |
from US $55.51 |
||
| replacement | |||||
|
19
|
19
4GY-17241-00-00 Gear, 4Th Wheel4TH WHEEL 27T |
4GY-17241-00-00 |
from US $58.25 |
||
|
20
|
20
51Y-17211-00-00
Gear, 1St Wheel
1ST WHEEL 37T |
51Y-17211-00-00 |
— | ||
|
21
|
21
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
22
|
22
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
23
|
23
93410-17037-00 Circlip |
93410-17037-00 |
from US $1.70 |
||
|
24
|
24
93306-20332-00 Bearing |
93306-20332-00 |
from US $19.42 |
||
|
25
|
25
93306-20573-00 Bearing (B6205C4) |
93306-20573-00 |
from US $25.79 |
||
| replacement | |||||
|
25
|
25
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
26
|
26
93102-25226-00 Oil Seal |
93102-25226-00 |
from US $6.94 |
||
| replacement | |||||
|
26
|
26
93102-25218-00 Oil Seal |
93102-25218-00 |
from US $9.98 |
||
|
27
|
27
55V-17460-00-00 Sprocket, Drive 19T (55V1746190Sprocket, drive (55v1746190) 19T 55V1746190 |
55V-17460-00-00 |
US $36.44 |
||
|
28
|
28
3Y1-17456-00-00 Holder, Sprocket |
3Y1-17456-00-00 |
from US $2.69 |
||
|
29
|
29
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
29
|
29
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
