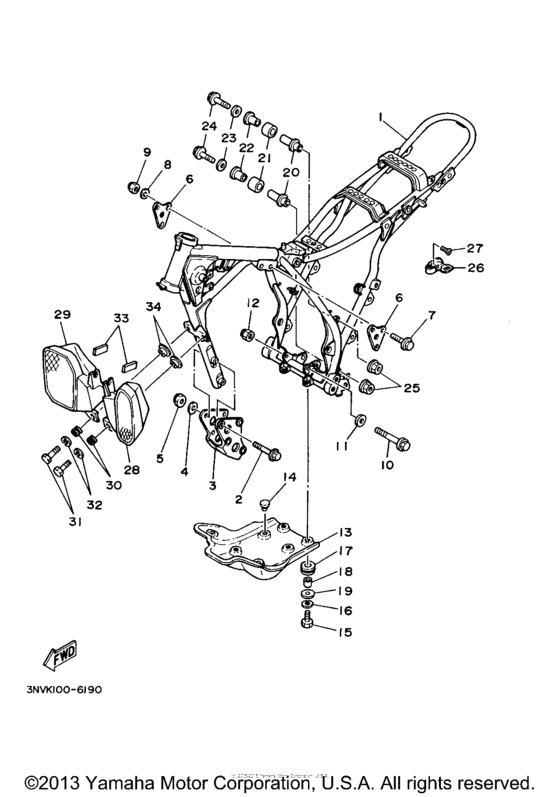

Frame Diagram Yamaha XT350 XT350
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57T-21110-00-35
Frame Comp
SL 49 |
57T-21110-00-35 |
— | ||
|
1
|
1
56R-21110-00-35
Frame Comp
SL CA |
56R-21110-00-35 |
— | ||
|
2
|
2
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
3
|
3
30X-21316-00-35 Stay, Engine 3SL |
30X-21316-00-35 |
US $56.27 |
||
|
4
|
4
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
5
|
5
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
6
|
6
30X-21315-00-00
Stay, Engine 1
|
30X-21315-00-00 |
— | ||
|
7
|
7
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
8
|
8
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
9
|
9
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
10
|
10
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
11
|
11
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
13
|
13
30X-21471-01-00
Protector, Engine
|
30X-21471-01-00 |
— | ||
|
14
|
14
30X-24768-00-00 Stopper |
30X-24768-00-00 |
from US $7.49 |
||
|
15
|
15
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $2.08 |
||
|
18
|
18
90387-07674-00 Collar |
90387-07674-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
19
|
19
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
19
|
19
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
20
|
20
2K7-2148A-00-00 Shaft |
2K7-2148A-00-00 |
from US $13.18 |
||
|
21
|
21
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
22
|
22
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
23
|
23
90201-08310-00 Washer, Plate |
90201-08310-00 |
from US $1.70 |
||
|
24
|
24
958-07080-50-00
Bolt, Flange
|
958-07080-50-00 |
— | ||
| replacement | |||||
|
24
|
24
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
25
|
25
95607-08100-00 Nut, U |
95607-08100-00 |
from US $3.20 |
||
| replacement | |||||
|
25
|
25
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
26
|
26
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
27
|
27
90149-06285-00 Screw, Countersunk |
90149-06285-00 |
from US $2.13 |
||
| replacement | |||||
|
27
|
27
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
28
|
28
55V-2137W-50-00 Scoop, Air 1PWS1 |
55V-2137W-50-00 |
US $48.02 |
||
|
29
|
29
55V-2137X-50-00 Scoop, Air 2PWS1 |
55V-2137X-50-00 |
US $48.44 |
||
|
30
|
30
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
31
|
31
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
31
|
31
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
32
|
32
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
33
|
33
30X-2139X-00-00
Damper
|
30X-2139X-00-00 |
— | ||
| replacement | |||||
|
33
|
33
90520-05025-00 Damper, Plate |
90520-05025-00 |
from US $1.69 |
||
|
34
|
34
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
