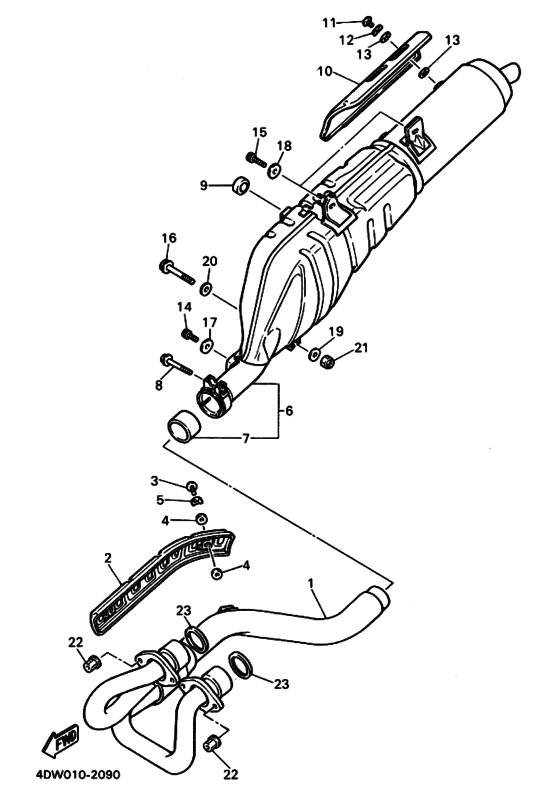

Exhaust Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34K-14611-01-00
Pipe, Exhaust 1
パイプ，エキゾースト １; |
34K-14611-01-00 |
— | ||
|
2
|
2
34K-14628-01-00
Protector, Exhaust Pipe
プロテクタ，エキゾーストパイプ; |
34K-14628-01-00 |
— | ||
|
3
|
3
90164-06017-00 Screw, Tapping |
90164-06017-00 |
from US $2.55 |
||
|
4
|
4
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
5
|
5
90206-06090-00 Washer, Wave(3Rw) Jワツシヤ，ウエイブ; |
90206-06090-00 |
from US $1.70 |
||
|
6
|
6
4DW-14711-00-00
Muffler 1
|
4DW-14711-00-00 |
— | ||
|
7
|
7
3YF-14755-00-00 Gasket, Silencer．ガスケツト，サイレンサ; |
3YF-14755-00-00 |
from US $24.09 |
||
|
8
|
8
95026-08045-00 Bolt, Flangeボルト，フランジ; |
95026-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95027-08045-00 Bolt, Flangeボルト，フランジ; |
95027-08045-00 |
from US $1.56 |
||
|
9
|
9
22W-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
22W-24181-00-00 |
from US $3.89 |
||
|
10
|
10
3TB-14728-00-00 Protector, Muffler 2プロテクタ，マフラー ２; |
3TB-14728-00-00 |
from US $123.92 |
||
|
11
|
11
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
12
|
12
90206-06090-00 Washer, Wave(3Rw) Jワツシヤ，ウエイブ; |
90206-06090-00 |
from US $1.70 |
||
|
13
|
13
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
14
|
14
90109-085E2-00 Bolt (2Kf) |
90109-085E2-00 |
from US $1.70 |
||
|
15
|
15
90105-10186-00
Bolt, Flange
ボルト，ワツシヤベースドヘツド; |
90105-10186-00 |
— | ||
|
16
|
16
901-05102-32-00
Bolt, Flange
ボルト，ワツシヤベースドヘツド; |
901-05102-32-00 |
— | ||
| replacements | |||||
|
16
|
16
95817-10060-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
95817-10060-00 |
from US $2.72 |
||
|
16
|
16
90105-10169-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10169-00 |
from US $5.67 |
||
|
17
|
17
90201-08326-00 Washer (853)ワツシヤ，プレート; |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
17
|
17
90201-08877-00 Washer (853)ワツシヤ，プレート; |
90201-08877-00 |
from US $1.28 |
||
|
18
|
18
90201-102J5-00 Washer, Plateワツシヤ，プレート; |
90201-102J5-00 |
from US $3.83 |
||
|
19
|
19
90201-101J1-00 Washer, Plateワツシヤ，プレート; |
90201-101J1-00 |
from US $1.66 |
||
|
20
|
20
90201-10144-00 Washer, Plateワツシヤ，プレート; |
90201-10144-00 |
from US $2.13 |
||
|
21
|
21
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
21
|
21
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
21
|
21
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
22
|
22
901-79064-99-00
Nut
|
901-79064-99-00 |
— | ||
| replacement | |||||
|
22
|
22
90179-06500-00 Nut |
90179-06500-00 |
from US $2.22 |
||
|
23
|
23
3YF-14613-01-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
3YF-14613-01-00 |
from US $3.38 |
||
