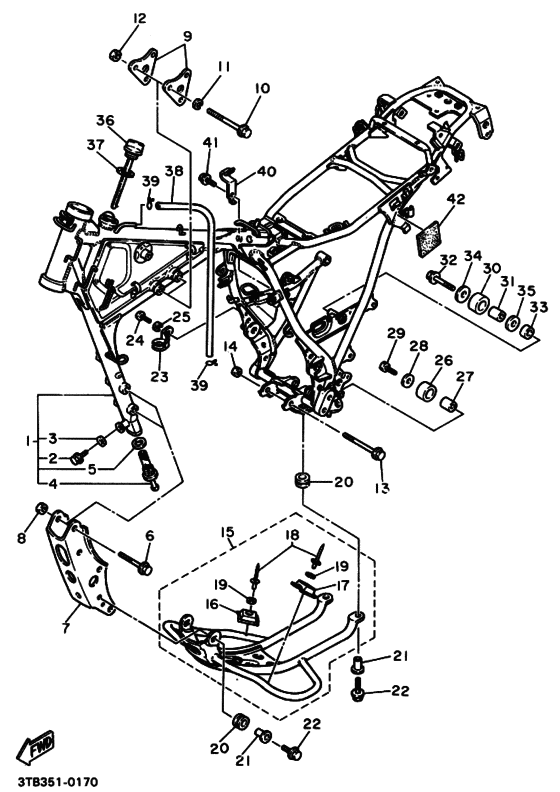

Frame Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YP-21110-01-WL
Frame Comp
フレームコンプリート; スターダストシルバー |
3YP-21110-01-WL |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
フレームコンプリート; スターダストシルバー |
999-99999-99-00 |
— | ||
|
2
|
2
95811-08012-00 Bolt, Flange (95801-08012-00)．ボルト，フランジ; |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
95817-08012-00 Bolt, Flange．ボルト，フランジ; |
95817-08012-00 |
from US $1.07 |
||
|
3
|
3
90201-08087-00 Washer, Plate 3411117500．ワツシヤ，プレート; |
90201-08087-00 |
from US $1.39 |
||
|
4
|
4
3TB-21756-00-00 Net, Filter．ネツト，フイルタ; |
3TB-21756-00-00 |
US $64.03 |
||
|
5
|
5
90430-22123-00 Gasket．ガスケツト; |
90430-22123-00 |
from US $4.53 |
||
|
6
|
6
90105-10286-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10286-00 |
from US $4.53 |
||
|
7
|
7
3TB-21316-00-WL Stay, Engine 2ステー，エンジン ３; スターダストシルバー |
3TB-21316-00-WL |
from US $55.75 |
||
| replacement | |||||
|
7
|
7
3TB-21316-00-90 Stay, Engine 3ステー，エンジン ３; スターダストシルバー |
3TB-21316-00-90 |
from US $55.75 |
||
|
8
|
8
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
9
|
9
34L-21315-00-00
Stay, Engine 1
ステー，エンジン ２; |
34L-21315-00-00 |
— | ||
|
10
|
10
97011-10080-00 Bolt,washer Based |
97011-10080-00 |
from US $7.18 |
||
| replacement | |||||
|
10
|
10
90105-10M75-00 Bolt, Flange |
90105-10M75-00 |
from US $8.22 |
||
|
11
|
11
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
11
|
11
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
12
|
12
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
13
|
13
95811-10100-00 Bolt, Flange (5Y1) |
95811-10100-00 |
from US $4.25 |
||
| replacement | |||||
|
13
|
13
95817-10100-00 Bolt, Flange |
95817-10100-00 |
from US $4.25 |
||
|
14
|
14
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
15
|
15
3TB-W2147-00-WL Protector, Engineプロテクタ，エンジン; スターダストシルバー |
3TB-W2147-00-WL |
from US $174.98 |
||
|
16
|
16
34K-21485-00-00
Damper, Rubber 1
．ダンパ，ラバー １; |
34K-21485-00-00 |
— | ||
|
17
|
17
34K-21486-00-00 Damper 2．ダンパ ２; |
34K-21486-00-00 |
from US $8.66 |
||
|
18
|
18
90267-40075-00 Rivet, Blind．リベツト，ブラインド; |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
902-67400-80-00
Rivet, Blind (5H0)
．リベツト，ブラインド; |
902-67400-80-00 |
— | ||
|
19
|
19
90201-04M06-00 Washer, Plate．ワツシヤ，プレート; |
90201-04M06-00 |
from US $1.69 |
||
| replacement | |||||
|
19
|
19
90201-044H9-00 Washer, Plate．ワツシヤ，プレート; |
90201-044H9-00 |
from US $1.84 |
||
|
20
|
20
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
21
|
21
903-87073-91-00 Collarカラー; |
903-87073-91-00 |
from US $2.08 |
||
|
22
|
22
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
22
|
22
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
22
|
22
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
23
|
23
5Y1-21441-00-00
Bracket, Stop Switch
|
5Y1-21441-00-00 |
— | ||
|
24
|
24
98506-06012-00 Screw Pan Head |
98506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
25
|
25
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
26
|
26
3TB-22178-00-00 Tensioner |
3TB-22178-00-00 |
from US $16.29 |
||
|
27
|
27
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
28
|
28
90201-08753-00 Washer, Plateワツシヤ，プレート; |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
28
|
28
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $2.22 |
||
|
29
|
29
95023-08016-00 Bolt, Flangeボルト，フランジ; |
95023-08016-00 |
US $1.98 |
||
| replacement | |||||
|
29
|
29
95024-08016-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-08016-00 |
from US $2.22 |
||
|
30
|
30
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
31
|
31
4V4-22184-00-00 Bushプツシユ; |
4V4-22184-00-00 |
from US $3.60 |
||
|
32
|
32
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
33
|
33
902-01134-09-00
Washer, Plate
ワツシヤ，プレート; |
902-01134-09-00 |
— | ||
| replacement | |||||
|
33
|
33
902-01133-P2-00 Washer, Plate(3Rr)ワツシヤ，プレート; |
902-01133-P2-00 |
from US $4.03 |
||
|
34
|
34
90201-08753-00 Washer, Plateワツシヤ，プレート; |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
34
|
34
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $2.22 |
||
|
35
|
35
90387-085E1-00 Collarカラー; |
90387-085E1-00 |
from US $2.91 |
||
|
36
|
36
3TB-21771-00-00 Body, Capボデイ，キヤツプ; |
3TB-21771-00-00 |
from US $35.78 |
||
|
37
|
37
90430-27124-00 Gasket |
90430-27124-00 |
from US $1.70 |
||
|
38
|
38
90445-115G3-00 Hose (L620)ホース; |
90445-115G3-00 |
US $10.89 |
||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
ホース; |
999-99999-99-00 |
— | ||
|
39
|
39
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
39
|
39
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
39
|
39
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
40
|
40
3TB-21338-00-00
Clamp
|
3TB-21338-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
91026-06010-00 Bolt |
91026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
41
|
41
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
42
|
42
3TB-28415-00-00 Damper 1 |
3TB-28415-00-00 |
US $7.97 |
||
| replacement | |||||
|
42
|
42
3TB-28415-01-00 Damper 1 |
3TB-28415-01-00 |
US $7.61 |
||
