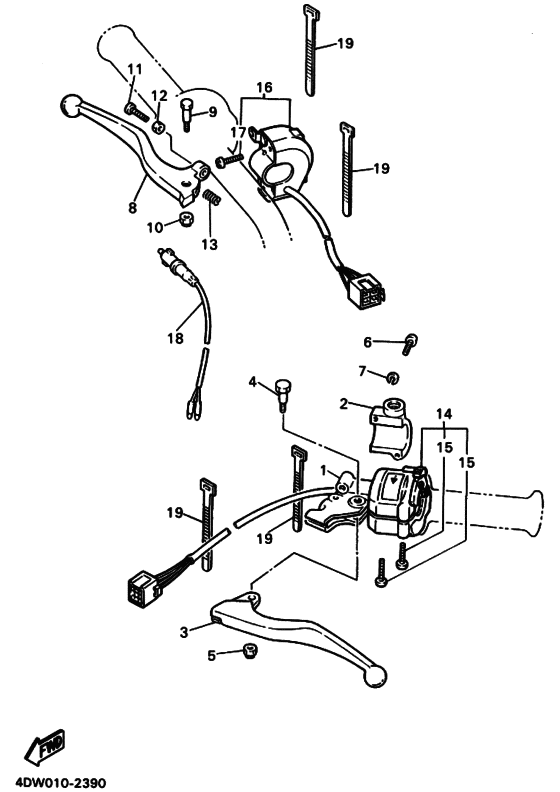

Handle switch & lever Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-82911-00-00 Holder, Lever 1ホルダー，レバー １ ; レフト |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
ホルダー，レバーロワ １ ; レフト |
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1ホルダー，レバーロワ １ ; レフト |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
3FY-83912-01-00
Lever 1
レバー １; |
3FY-83912-01-00 |
— | ||
| replacement | |||||
|
3
|
3
3FY-83912-02-00 Lever 1レバー １; |
3FY-83912-02-00 |
from US $23.52 |
||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
5
|
5
956-16061-00-00
Nut (17W)
ナツト，Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
3YR-83922-00-00 Lever 2レバー ２; |
3YR-83922-00-00 |
from US $22.84 |
||
| replacement | |||||
|
8
|
8
3YR-83922-02-00 Lever, Rightレバー ２; |
3YR-83922-02-00 |
from US $18.80 |
||
|
9
|
9
90109-062A8-00 Bolt |
90109-062A8-00 |
from US $6.66 |
||
|
10
|
10
956-16061-00-00
Nut (17W)
ナツト，Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
11
|
11
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
12
|
12
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
13
|
13
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
14
|
14
4DW-83972-00-00
Switch, Handle 4
|
4DW-83972-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4DW-83972-01-00
Switch, Handle 4
|
4DW-83972-01-00 |
— | ||
|
15
|
15
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
16
|
16
4DW-83975-00-00 Switch, Handle 2 |
4DW-83975-00-00 |
from US $97.49 |
||
| replacement | |||||
|
16
|
16
4DW-83975-11-00 Switch, Handle 2 |
4DW-83975-11-00 |
from US $110.40 |
||
|
17
|
17
985-06050-18-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-18-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-05018-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05018-00 |
from US $1.56 |
||
|
18
|
18
34X-83980-01-00 Stop Switch Asyフロントストツプスイツチアセン; |
34X-83980-01-00 |
from US $32.94 |
||
| replacement | |||||
|
18
|
18
3YF-83980-00-00 Front Stop Switch Assyフロントストツプスイツチアセン; |
3YF-83980-00-00 |
from US $41.45 |
||
|
19
|
19
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
