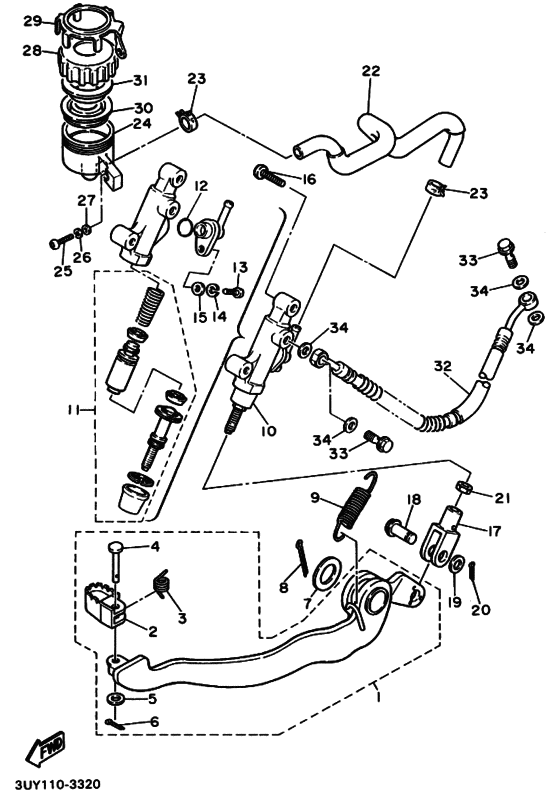

Rear master cylinder Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3TB-27200-01-00 Pedal, Brakeペダル，ブレーキ; ユニクロ （クロイロ） |
3TB-27200-01-00 |
from US $68.31 |
||
| replacement | |||||
|
1
|
1
3TB-27200-02-00 Pedal, Brakeペダル，ブレーキ; ユニクロ （クロイロ） |
3TB-27200-02-00 |
US $100.09 |
||
|
2
|
2
55V-27242-00-00 Pedal, Brake．ペダル，ブレーキ; |
55V-27242-00-00 |
from US $16.29 |
||
|
3
|
3
90508-14352-00 Spring, Torsion．スプリング，トーシヨン; |
90508-14352-00 |
from US $1.81 |
||
|
4
|
4
91701-06022-00 Pin．ピン，クレビス; |
91701-06022-00 |
from US $1.66 |
||
|
5
|
5
929-01066-00-00
Washer
．ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7)．ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate．ワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
91490-20020-00 Ybs74-220 Pin,cotter．ピン，コツタ; |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
914-90200-25-00 Pin. Cotter．ピン，コツタ; |
914-90200-25-00 |
from US $1.66 |
||
|
7
|
7
90201-14215-00 Washer, Plateワツシヤ，プレート; |
90201-14215-00 |
from US $1.56 |
||
|
8
|
8
91401-30020-00 Pin. Cotter |
91401-30020-00 |
US $1.13 |
||
| replacements | |||||
|
8
|
8
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.25 |
||
|
8
|
8
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
|
9
|
9
90507-18055-00 Spring, Tension |
90507-18055-00 |
US $7.88 |
||
|
10
|
10
3TB-2583V-00-00 Rr. Master Cylinder Assemblyリヤマスタシリンダアセンブリ; |
3TB-2583V-00-00 |
US $254.27 |
||
|
11
|
11
31A-W0042-50-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
31A-W0042-50-00 |
from US $62.28 |
||
|
12
|
12
93210-15620-00 O-Ring．Ｏ−リング; |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
93210-15566-00 O-Ring (22U)．Ｏ−リング; |
93210-15566-00 |
from US $1.52 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
929-02041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-02041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
929-01046-00-00
Washer
．ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90046-00-00 Washer, Plate．ワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
16
|
16
92016-08025-00 Bolt, Button Headスクリユ; |
92016-08025-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
92017-08025-00 Bolt, Button Headスクリユ; |
92017-08025-00 |
from US $1.66 |
||
|
17
|
17
47X-27222-00-00 Joint |
47X-27222-00-00 |
from US $16.72 |
||
|
18
|
18
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
19
|
19
90201-08083-00 Washer, Plateワツシヤ，プレート; |
90201-08083-00 |
from US $1.60 |
||
|
20
|
20
91401-16020-00 Pin, Cotter |
91401-16020-00 |
US $2.55 |
||
| replacement | |||||
|
20
|
20
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
21
|
21
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
22
|
22
3TB-25895-00-00
Hose, Reservoir
ホース，リザーバ; |
3TB-25895-00-00 |
— | ||
|
23
|
23
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
24
|
24
47X-25894-00-00 Tank, Reservoirタンク，リザーバ; |
47X-25894-00-00 |
from US $24.70 |
||
|
25
|
25
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
27
|
27
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
28
|
28
1A5-25852-00-00 Cap, Reservoirキヤツプ，リザーバ; |
1A5-25852-00-00 |
US $20.26 |
||
| replacement | |||||
|
28
|
28
1A5-25852-01-00 Cap, Reservoirキヤツプ，リザーバ; |
1A5-25852-01-00 |
from US $6.23 |
||
|
29
|
29
3AJ-25888-00-00
Cover, Reservoir Tank
カバー，リザーバタンク; |
3AJ-25888-00-00 |
— | ||
|
30
|
30
360-25854-00-00 Diaphragm, Reservoirダイヤフラム，リザーバ; |
360-25854-00-00 |
from US $15.58 |
||
| replacement | |||||
|
30
|
30
360-25854-01-00 Gasket, Diaphragmダイヤフラム，リザーバ; |
360-25854-01-00 |
from US $17.20 |
||
|
31
|
31
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $11.46 |
||
|
32
|
32
3TB-25873-01-00
Hose;brake 2
ホース，ブレーキ ２; |
3TB-25873-01-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99024-28-00
Brake Hose Set (3Tb)
ホース，ブレーキ ２; |
999-99024-28-00 |
— | ||
|
33
|
33
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
33
|
33
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
34
|
34
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
34
|
34
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
