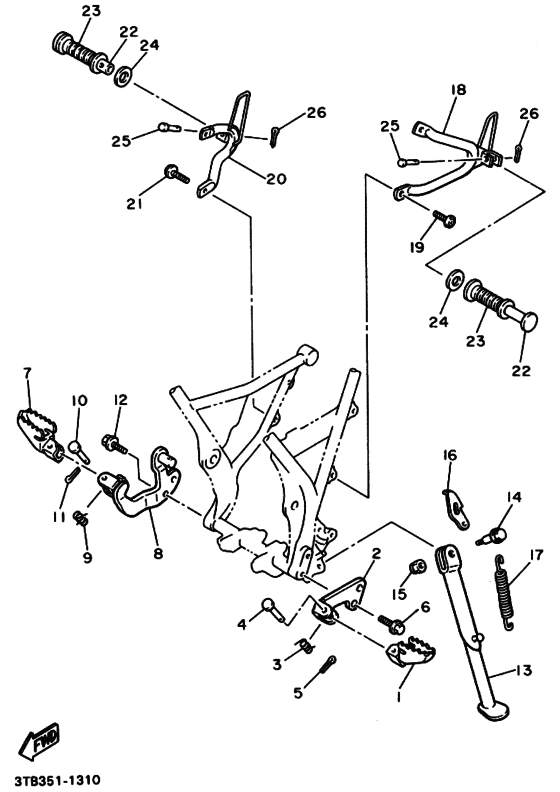

Stand & Footrest Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22W-27411-01-90 Footrest 1フートレスト １; ユニクロ （クロイロ） |
22W-27411-01-90 |
from US $29.47 |
||
|
2
|
2
34L-27412-00-R4 Bracket, Footrest 1ブラケツト，フートレスト １; デンチヤククロ |
34L-27412-00-R4 |
US $54.31 |
||
|
3
|
3
90508-20023-00 Spring, Torsionスプリング，トーシヨン; |
90508-20023-00 |
from US $1.70 |
||
|
4
|
4
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
5
|
5
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
5
|
5
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
6
|
6
95826-10025-00 Bolt, Flange |
95826-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
7
|
7
22W-27421-01-90 Footrest 2 (3R1-27421-00)フートレスト ２; ユニクロ （クロイロ） |
22W-27421-01-90 |
from US $36.11 |
||
|
8
|
8
2KF-27422-00-R4 Bracket, Footrest 2ブラケツト，フートレスト ２; デンチヤククロ |
2KF-27422-00-R4 |
from US $86.35 |
||
|
9
|
9
90508-20023-00 Spring, Torsionスプリング，トーシヨン; |
90508-20023-00 |
from US $1.70 |
||
|
10
|
10
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
11
|
11
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
11
|
11
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
12
|
12
95826-10025-00 Bolt, Flange |
95826-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
13
|
13
3AJ-27311-00-R4 Stand, Sideスタンドサイド; デンチヤククロ |
3AJ-27311-00-R4 |
from US $95.53 |
||
| replacement | |||||
|
13
|
13
3YF-27311-00-00 Stand, Sideスタンドサイド; デンチヤククロ |
3YF-27311-00-00 |
from US $89.39 |
||
|
14
|
14
90105-12616-00
Bolt, Washer Based
ボルト，ワツシヤベースドヘツド; |
90105-12616-00 |
— | ||
|
15
|
15
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
16
|
16
5Y1-27315-00-00 Link, Side Stand |
5Y1-27315-00-00 |
from US $10.63 |
||
|
17
|
17
90507-32020-00
Spring, Tension
|
90507-32020-00 |
— | ||
|
18
|
18
26F-27432-00-WL Bracket 1ブラケツト １; スターダストシルバー |
26F-27432-00-WL |
US $57.74 |
||
|
19
|
19
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
19
|
19
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
20
|
20
3YP-27442-00-WL
Bracket 2
ブラケツト ２; スターダストシルバー |
3YP-27442-00-WL |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
ブラケツト ２; スターダストシルバー |
999-99999-99-00 |
— | ||
|
21
|
21
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
21
|
21
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
21
|
21
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
22
|
22
120-27431-00-00
Footrest, Rear 1
フートレスト，リヤ １; |
120-27431-00-00 |
— | ||
| replacement | |||||
|
22
|
22
2GV-27431-00-00 Footrest, Rear 1フートレスト，リヤ １; |
2GV-27431-00-00 |
from US $6.74 |
||
|
23
|
23
120-27433-00-00 Cover, Rear Footrestカバー，リヤフートレスト; |
120-27433-00-00 |
from US $2.70 |
||
|
24
|
24
902-01202-79-00 Washer, Plateワツシヤ，プレート; |
902-01202-79-00 |
from US $1.28 |
||
|
25
|
25
90240-06009-00 Pin |
90240-06009-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
26
|
26
91401-16020-00 Pin, Cotter |
91401-16020-00 |
US $2.55 |
||
| replacement | |||||
|
26
|
26
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
