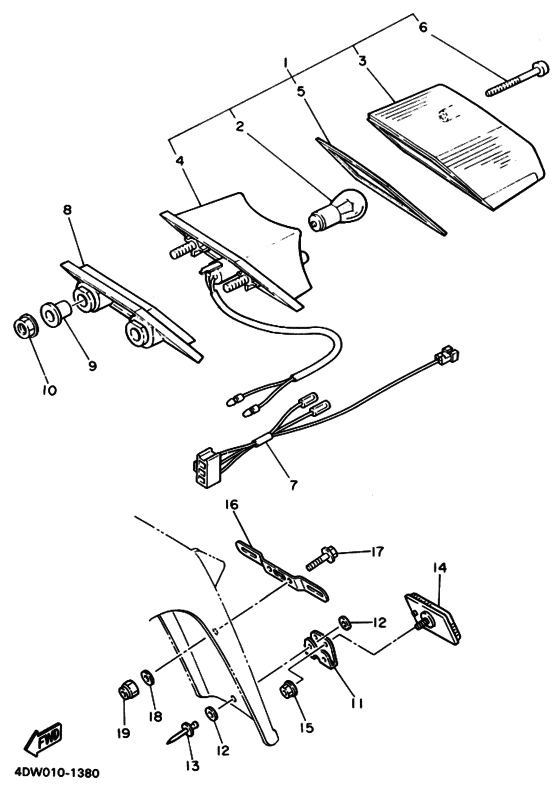

Taillight Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YK-84710-00-00
Taillight Unit Assy
テールライトユニツトアセンブリ; |
2YK-84710-00-00 |
— | ||
|
2
|
2
31L-84714-00-00
Bulb (12V-21/5W)
．バルブ ; １２Ｖ−２１／５Ｗ |
31L-84714-00-00 |
— | ||
| replacements | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-50-00 |
from US $5.28 |
||
|
2
|
2
1A2-84714-41-00
Bulb
．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-41-00 |
— | ||
|
3
|
3
34Y-84721-E0-00 Lens, Taillight．レンズ，テールライト; |
34Y-84721-E0-00 |
US $75.85 |
||
|
4
|
4
1JK-84720-00-00
Base Assy
．ベースアセンブリ; |
1JK-84720-00-00 |
— | ||
|
5
|
5
34Y-84723-E0-00 Gasket, Tail Lens．ガスケツト，テールレンズ; |
34Y-84723-E0-00 |
US $9.49 |
||
| replacement | |||||
|
5
|
5
1VJ-14462-00-00 Seal．ガスケツト，テールレンズ; |
1VJ-14462-00-00 |
from US $9.44 |
||
|
6
|
6
97706-40530-00 Screw, Tapping (25K)．スクリユ，タツピング; |
97706-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
97707-40630-00 Screw, Tapping(3Ah)．スクリユ，タツピング; |
97707-40630-00 |
from US $2.50 |
||
|
7
|
7
3TB-84717-00-00 Cord, Taillightコード，テールライト; |
3TB-84717-00-00 |
US $10.43 |
||
| replacement | |||||
|
7
|
7
3TB-84717-01-00 Cord, Taillightコード，テールライト; |
3TB-84717-01-00 |
US $10.43 |
||
|
8
|
8
34X-84527-00-00 Damper |
34X-84527-00-00 |
US $12.46 |
||
|
9
|
9
903-87073-91-00 Collarカラー; |
903-87073-91-00 |
from US $2.08 |
||
|
10
|
10
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
11
|
11
33G-85132-01-00 Bracket, Reflector 1 |
33G-85132-01-00 |
from US $9.92 |
||
| replacement | |||||
|
11
|
11
33G-85132-02-00 Bracket, Reflector 1 |
33G-85132-02-00 |
from US $9.92 |
||
|
12
|
12
90201-044A2-00 Washer, Plateワツシヤ，プレート; |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
12
|
12
90201-044H9-00 Washer, Plateワツシヤ，プレート; |
90201-044H9-00 |
from US $1.84 |
||
|
13
|
13
90267-40090-00 Rivet, Blind |
90267-40090-00 |
from US $2.13 |
||
|
14
|
14
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
14
|
14
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
15
|
15
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
3YF-84751-00-00 Bracket, License |
3YF-84751-00-00 |
from US $11.19 |
||
| replacement | |||||
|
16
|
16
3YF-84751-01-00 Bracket, License |
3YF-84751-01-00 |
from US $11.19 |
||
|
17
|
17
95026-06012-00 Bolt, Flangeボルト，フランジ; |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
950-27060-12-00 Bolt, Flangeボルト，フランジ; |
950-27060-12-00 |
from US $1.28 |
||
|
18
|
18
902-01060-59-00
Washer, Plate
ワツシヤ，プレート; |
902-01060-59-00 |
— | ||
| replacements | |||||
|
18
|
18
90201-06057-00 Washer, Plateワツシヤ，プレート; |
90201-06057-00 |
from US $1.28 |
||
|
18
|
18
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
19
|
19
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
