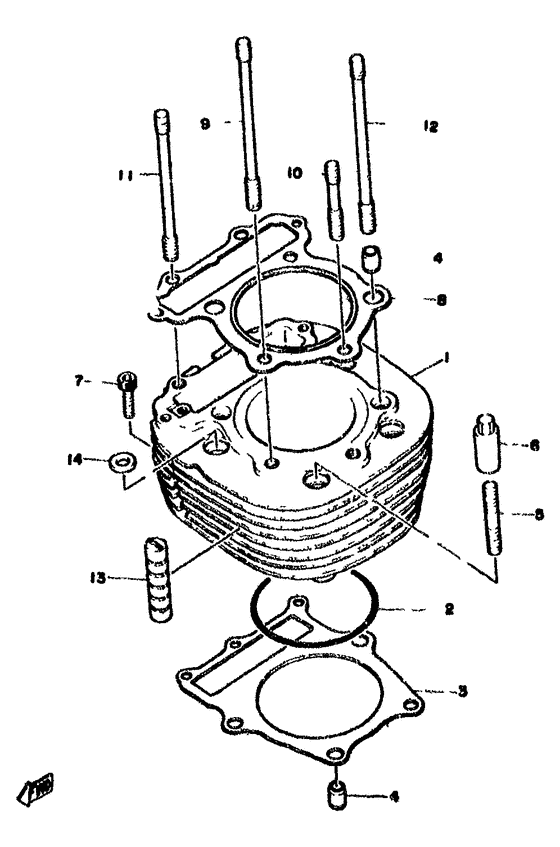

Cylinder Diagram Yamaha XT500
- Year
- 1978
- Model code
- 1U6
- Sales region
- Europe (General) (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-11311-00-R4
Cylinder 1
|
583-11311-00-R4 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93210-92295-00 O-Ring |
93210-92295-00 |
from US $5.81 |
||
|
3
|
3
583-11351-00-00 Gskt, Cyln Dr |
583-11351-00-00 |
from US $19.69 |
||
| replacement | |||||
|
3
|
3
3HT-11351-00-00 Gasket, Cylinder |
3HT-11351-00-00 |
from US $19.69 |
||
|
4
|
4
91810-16016-00 Pin, Dowel |
91810-16016-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
5
|
5
90116-10087-00 Bolt, Stud |
90116-10087-00 |
from US $7.79 |
||
|
6
|
6
90179-10201-00 Nut |
90179-10201-00 |
US $24.23 |
||
| replacement | |||||
|
6
|
6
90179-10021-00 Nut |
90179-10021-00 |
from US $24.23 |
||
|
7
|
7
91316-06030-00 Bolt |
91316-06030-00 |
from US $0.99 |
||
| replacement | |||||
|
7
|
7
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
8
|
8
583-11181-01-00 Gasket, Cylinder Head 1 |
583-11181-01-00 |
US $80.41 |
||
| replacement | |||||
|
8
|
8
2J2-11181-09-00 Gasket, Cylinder Head 1 |
2J2-11181-09-00 |
from US $80.41 |
||
|
9
|
9
90116-10222-00 Bolt, Stud |
90116-10222-00 |
from US $10.91 |
||
|
10
|
10
90116-10223-00 Bolt, Stud |
90116-10223-00 |
from US $7.93 |
||
|
11
|
11
90116-08190-00 Bolt, Stud (583 Cylinder) |
90116-08190-00 |
from US $6.86 |
||
|
12
|
12
90116-10225-00 Bolt, Stud |
90116-10225-00 |
from US $10.91 |
||
|
13
|
13
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
14
|
14
90201-10590-00 Washer, Plate |
90201-10590-00 |
from US $4.68 |
||
