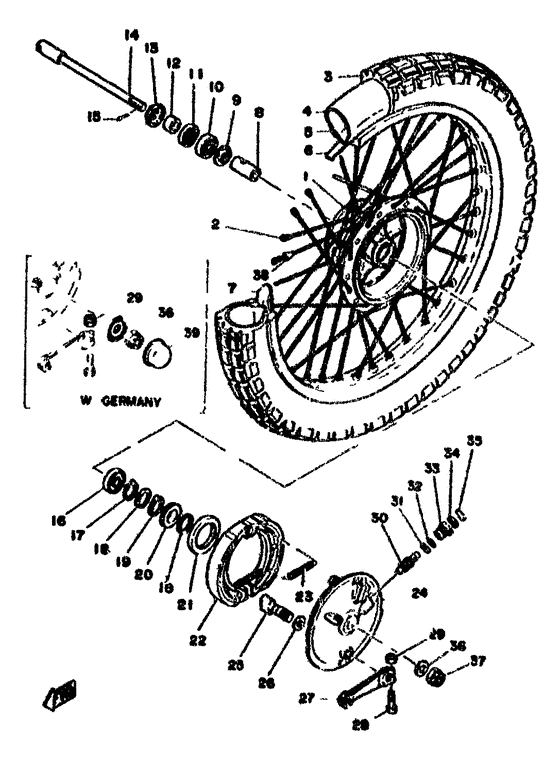

Front wheel Diagram Yamaha XT500
- Year
- 1978
- Model code
- 1U6
- Sales region
- Europe (General) (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1E6-25111-00-98
Hub, Front
|
1E6-25111-00-98 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1E6-25104-01-00 Spoke Set, Front |
1E6-25104-01-00 |
from US $82.99 |
||
|
3
|
3
94132-21234-00
Tire
|
94132-21234-00 |
— | ||
|
4
|
4
94232-21279-00
Tube
|
94232-21279-00 |
— | ||
| replacement | |||||
|
4
|
4
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6) |
942-27211-23-00 |
US $54.59 |
||
|
5
|
5
94418-21201-00
Rim (1.85-21)
|
94418-21201-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
94330-21084-00 Band, Rim (1.60-21) |
94330-21084-00 |
from US $4.39 |
||
|
7
|
7
1T2-25394-00-00 Spacer, Bead |
1T2-25394-00-00 |
from US $50.02 |
||
|
8
|
8
214-25117-00-00 Spacer |
214-25117-00-00 |
from US $7.65 |
||
| replacement | |||||
|
8
|
8
90560-15293-00 Spacer(1Ee) |
90560-15293-00 |
from US $7.65 |
||
|
9
|
9
183-25315-00-00 Flange, Spacer 2 |
183-25315-00-00 |
from US $4.53 |
||
| replacement | |||||
|
9
|
9
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
10
|
10
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
11
|
11
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
12
|
12
90387-15529-00
Collar
|
90387-15529-00 |
— | ||
|
13
|
13
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
14
|
14
583-25181-00-00
Axle, Wheel
|
583-25181-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
16
|
16
93306-20203-00 Bearing |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
16
|
16
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
17
|
17
93410-22014-00 Circlip |
93410-22014-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
18
|
18
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
19
|
19
214-25149-01-00 Clutch, Meter |
214-25149-01-00 |
from US $9.36 |
||
|
20
|
20
308-25135-00-00
Gear, Drive (10T)
|
308-25135-00-00 |
— | ||
|
21
|
21
93105-50010-00 Oil Seal, Sdd-Type (Sdd-50-62-7 |
93105-50010-00 |
from US $11.05 |
||
|
22
|
22
431-25330-02-00
Brake Shoe Comp
|
431-25330-02-00 |
— | ||
| replacements | |||||
|
22
|
22
4GR-W253E-00-00 GUIDE, INTAKE VALV |
4GR-W253E-00-00 |
from US $44.89 |
||
|
22
|
22
431-W2536-00-00
Brake Shoe Set-2Pcs
|
431-W2536-00-00 |
— | ||
|
22
|
22
431-W2536-00-00
Brake Shoe Set-2Pcs
|
431-W2536-00-00 |
— | ||
|
23
|
23
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2.36 |
||
|
24
|
24
1E6-25121-00-98
Plate, Brake Shoe
|
1E6-25121-00-98 |
— | ||
| replacement | |||||
|
24
|
24
1E6-25016-10-98
Brake Shoe Plate Assembly
|
1E6-25016-10-98 |
— | ||
|
25
|
25
1E6-25151-00-00 Camshaft |
1E6-25151-00-00 |
US $48.51 |
||
|
26
|
26
90564-14021-00 Shim |
90564-14021-00 |
from US $2.98 |
||
| replacement | |||||
|
26
|
26
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
27
|
27
559-25155-00-00 Lever, Camshaft 1 |
559-25155-00-00 |
US $28.05 |
||
| replacement | |||||
|
27
|
27
2N6-25155-00-00 Lever, Camshaft 1 |
2N6-25155-00-00 |
from US $19.12 |
||
|
28
|
28
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
29
|
29
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
29
|
29
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
29
|
29
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
30
|
30
308-25138-00-00
Gear, Meter (10T)
|
308-25138-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
32
|
32
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
32
|
32
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
33
|
33
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
34
|
34
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
35
|
35
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
36
|
36
90209-14165-00
Washer
|
90209-14165-00 |
— | ||
|
36
|
36
92901-14200-00 Washer, Plain |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
36
|
36
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
37
|
37
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
37
|
37
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
39
|
39
521-25188-00-00 Cap |
521-25188-00-00 |
US $7.37 |
||
