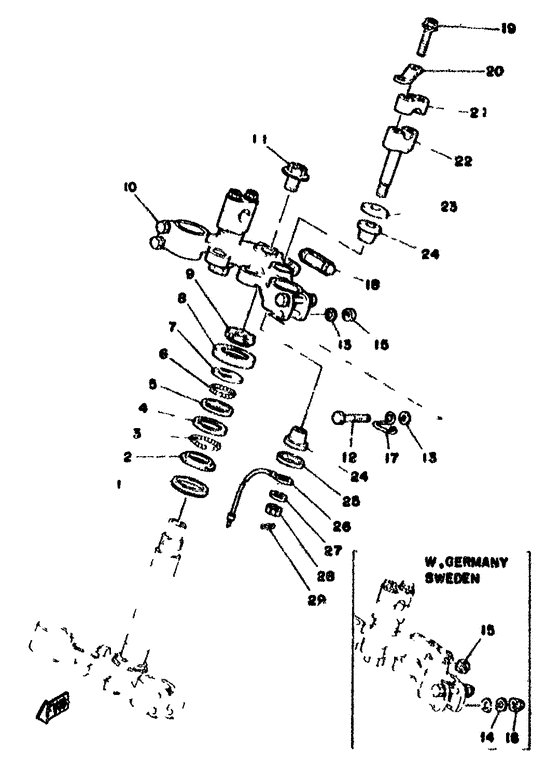

Steering Diagram Yamaha XT500
- Year
- 1978
- Model code
- 1U6
- Sales region
- Europe (General) (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $3.89 |
||
|
2
|
2
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.01 |
||
| replacement | |||||
|
2
|
2
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
US $9.04 |
||
|
3
|
3
93501-04011-00 Ball |
93501-04011-00 |
from US $1.38 |
||
| replacement | |||||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $14.66 |
||
| replacement | |||||
|
4
|
4
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.78 |
||
|
5
|
5
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.78 |
||
| replacements | |||||
|
5
|
5
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
from US $7.78 |
||
|
5
|
5
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.18 |
||
|
6
|
6
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.20 |
||
| replacement | |||||
|
6
|
6
93503-16003-00 Ball |
93503-16003-00 |
from US $1.20 |
||
|
7
|
7
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.68 |
||
| replacements | |||||
|
7
|
7
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
from US $8.68 |
||
|
7
|
7
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
US $10.55 |
||
|
8
|
8
1T1-23416-00-00
Cover, Ball Race 2
|
1T1-23416-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90179-25232-00 Nut |
90179-25232-00 |
from US $8.23 |
||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.04 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $7.90 |
||
|
10
|
10
2H0-23435-00-98
Crown, Handle
|
2H0-23435-00-98 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.24 |
||
|
12
|
12
97313-08055-00 Bolt (661) |
97313-08055-00 |
from US $3.71 |
||
| replacement | |||||
|
12
|
12
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.91 |
||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
15
|
15
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.14 |
||
| replacement | |||||
|
15
|
15
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.14 |
||
|
16
|
16
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $2.69 |
||
|
17
|
17
1E6-23317-10-00
Holder, Cable
|
1E6-23317-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
583-23469-00-00 Cap, Bolt |
583-23469-00-00 |
from US $14.10 |
||
|
19
|
19
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.50 |
||
| replacement | |||||
|
19
|
19
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.50 |
||
|
20
|
20
1T2-23389-00-00
Guide, Cable
|
1T2-23389-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $18.40 |
||
|
22
|
22
1E6-23442-00-00 Holder, Handle Lower |
1E6-23442-00-00 |
from US $50.20 |
||
| replacement | |||||
|
22
|
22
4AA-23442-01-98 Holder, Handle Lower |
4AA-23442-01-98 |
US $37.86 |
||
|
23
|
23
90209-12143-00
Washer, Spec''l Shap
|
90209-12143-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
1E6-23434-00-00 Holder, Damper |
1E6-23434-00-00 |
from US $5.38 |
||
|
25
|
25
90209-10142-00
Washer
|
90209-10142-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
584-82519-00-00 Wire, Earth Lead |
584-82519-00-00 |
from US $8.23 |
||
| replacement | |||||
|
26
|
26
3FU-83364-00-00 Wire, Earth (Ground) Lead 1 |
3FU-83364-00-00 |
from US $4.45 |
||
|
27
|
27
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
27
|
27
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.38 |
||
|
28
|
28
95301-10700-00 Nut |
95301-10700-00 |
US $6.73 |
||
| replacements | |||||
|
28
|
28
95380-10700-00 Nut |
95380-10700-00 |
from US $2.40 |
||
|
28
|
28
95314-10600-00 Nut |
95314-10600-00 |
from US $1.50 |
||
|
29
|
29
90468-12006-00 Clip |
90468-12006-00 |
from US $1.80 |
||
