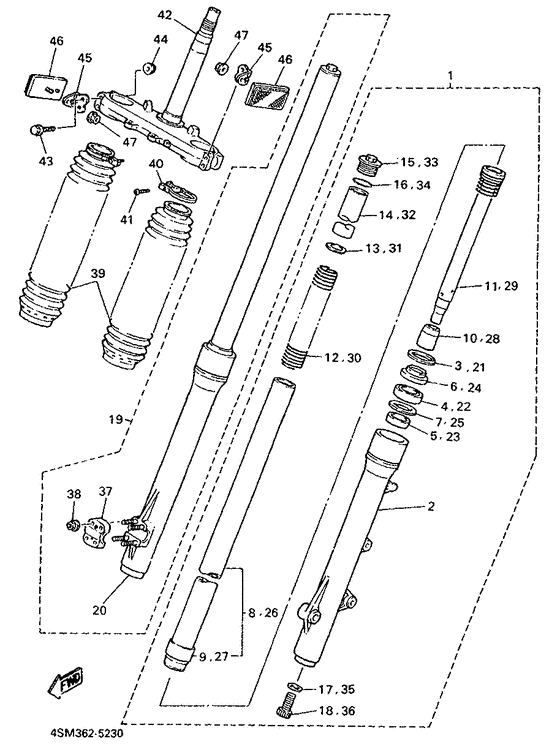

Front fork Diagram Yamaha XT500
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4SM2
- Sales region
- Austria (010)
- Engine Capacity
- 500
- Model
- XT500E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PT-23102-00-00 Front Fork Assy (L.h) |
4PT-23102-00-00 |
US $623.86 |
||
|
02
|
02
4PT-23126-00-00 Tube, Outer (Left) |
4PT-23126-00-00 |
US $337.32 |
||
| replacement | |||||
|
02
|
02
4PT-23126-20-00 Tube, Outer (Left) |
4PT-23126-20-00 |
US $337.32 |
||
|
03
|
03
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
04
|
04
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
04
|
04
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
05
|
05
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
05
|
05
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
06
|
06
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
07
|
07
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
08
|
08
4PT-23110-00-00
Inner Tube Comp.1
|
4PT-23110-00-00 |
— | ||
|
09
|
09
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
09
|
09
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
10
|
10
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $24.70 |
||
|
11
|
11
4PT-23170-00-00
Cylinder Comp., Front Fork
|
4PT-23170-00-00 |
— | ||
|
12
|
12
4PT-23141-00-00
Spring, Front Fork
|
4PT-23141-00-00 |
— | ||
|
13
|
13
4DW-23149-40-00 Washer, Spring Upper |
4DW-23149-40-00 |
from US $2.69 |
||
|
14
|
14
4PT-23118-00-00 Spacer |
4PT-23118-00-00 |
US $13.37 |
||
|
15
|
15
3EN-23111-50-00 Bolt, Cap |
3EN-23111-50-00 |
from US $29.75 |
||
| replacement | |||||
|
15
|
15
1D0-23111-00-00 Bolt, Cap |
1D0-23111-00-00 |
from US $29.75 |
||
|
16
|
16
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
17
|
17
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
18
|
18
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
18
|
18
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
19
|
19
4PT-23103-00-00
Front Fork Assy (R.h)
|
4PT-23103-00-00 |
— | ||
|
20
|
20
4PT-23136-00-00 Tube, Outer (Right) |
4PT-23136-00-00 |
US $467.85 |
||
| replacement | |||||
|
20
|
20
4PT-23136-20-00 Tube, Outer (Right) |
4PT-23136-20-00 |
US $337.32 |
||
|
21
|
21
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
22
|
22
3BN-23145-00-00 Oil Seal |
3BN-23145-00-00 |
US $28.05 |
||
| replacement | |||||
|
22
|
22
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
23
|
23
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
23
|
23
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
24
|
24
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $19.56 |
||
|
25
|
25
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
26
|
26
4PT-23110-00-00
Inner Tube Comp.1
|
4PT-23110-00-00 |
— | ||
|
27
|
27
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
27
|
27
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
28
|
28
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $24.70 |
||
|
29
|
29
4PT-23170-00-00
Cylinder Comp., Front Fork
|
4PT-23170-00-00 |
— | ||
|
30
|
30
4PT-23141-00-00
Spring, Front Fork
|
4PT-23141-00-00 |
— | ||
|
31
|
31
4DW-23149-40-00 Washer, Spring Upper |
4DW-23149-40-00 |
from US $2.69 |
||
|
32
|
32
4PT-23118-00-00 Spacer |
4PT-23118-00-00 |
US $13.37 |
||
|
33
|
33
3EN-23111-50-00 Bolt, Cap |
3EN-23111-50-00 |
from US $29.75 |
||
| replacement | |||||
|
33
|
33
1D0-23111-00-00 Bolt, Cap |
1D0-23111-00-00 |
from US $29.75 |
||
|
34
|
34
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
35
|
35
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
36
|
36
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
36
|
36
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
37
|
37
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
38
|
38
2KF-23127-01-00 Nut, Flange |
2KF-23127-01-00 |
from US $1.13 |
||
| replacement | |||||
|
38
|
38
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
39
|
39
2KF-23191-11-00
Boot (Ink Blue)
Ur ink blue for yb39 |
2KF-23191-11-00 |
— | ||
|
39
|
39
3TB-23191-11-00 BootUr black for pws 1,dncs 4 |
3TB-23191-11-00 |
from US $79.15 |
||
|
40
|
40
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $5.40 |
||
|
41
|
41
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
42
|
42
4PT-23340-00-00 Under Bracket Comp |
4PT-23340-00-00 |
US $524.88 |
||
|
43
|
43
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
44
|
44
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
44
|
44
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
44
|
44
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
45
|
45
49R-85112-00-00 Bracket, Reflector 1 |
49R-85112-00-00 |
from US $10.63 |
||
|
46
|
46
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
47
|
47
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
